2023-2025 X7 & 2024-2025 X5 Dash Panel: A Guide to HUD, Materials, and Replacement

Symptoms of a Failing Dash Panel

Unlike mechanical parts, a dash panel doesn't typically "fail" electronically. Instead, problems are almost always related to physical damage or cosmetic issues. Replacement is usually needed for one of the following reasons:

• Airbag Deployment: If the passenger airbag has deployed, the dash panel must be replaced. The force of deployment destroys the integrated tear-seam and can warp the underlying structure.
• Cosmetic Damage: Deep scratches, gouges, or chemical stains that cannot be repaired may require replacement to restore the interior's appearance.
• Peeling or Bubbling: The leather or Sensatec covering can begin to lift, bubble, or peel, especially around the edges near the windshield due to prolonged sun exposure and heat. This is a known issue on many vehicles with wrapped dashboards.
• Cracking or Warping: Extreme temperature cycles can cause the underlying plastic structure to become brittle and crack, or warp out of shape.
• Persistent Rattles: While many dash-area rattles come from loose trim pieces, vents, or the center screen, a rattle from the main dash structure itself can indicate a broken mounting tab or a crack in the panel.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of mid-2024, there are no recalls or TSBs issued specifically for the dash panel structure on the 2023-2025 X7 or 2024-2025 X5. However, owners should be aware of related issues and recalls:

• Knee Air Bag Recall (NHTSA 23V-471): Certain 2024 X5 and X7 models were recalled because the driver and/or passenger knee air bag may not have been manufactured correctly, preventing proper deployment. While not part of the dash panel itself, this component is located directly below it.
• Integrated Brake (IB) System Recall (NHTSA 24V-104): A widespread recall affects many 2023-2025 BMW models, including the X5 and X7. A malfunction can lead to a loss of power brake assist, with warning lights appearing on the instrument cluster. This is unrelated to the physical dash panel but involves warnings displayed on the screen it houses.
• Display Issues: Some owners have reported issues with the large curved display going blank or losing content intermittently. This is typically a software or display control unit issue 🎬 Watch: How to replace a BMW screen, not a fault of the dash panel itself.
• Rattles: Forum discussions for the G05 X5 and G07 X7 mention various interior rattles. Common sources are trim pieces, the center console, or sunroof, which can sometimes be mistaken for a dash panel noise. Technicians often use felt tape to resolve these issues.

Buying a Used Dash Panel: A Buyer's Guide

Purchasing a used OEM dash panel is often the only cost-effective option, as aftermarket versions for these models are generally not available. Careful inspection is critical to ensure you get a quality, compatible part.

Step 1: Verify Compatibility (The Most Critical Step)

The dash panel for these LCI (facelift) models is highly specific. Pre-facelift dashes (before 2023 for X7, before 2024 for X5) are not compatible due to the different screen and dashboard architecture.

• Head-Up Display (HUD): The provided OEM part numbers 51-45-9-633-581 and 51-45-9-633-583 are specifically for vehicles equipped with a Head-Up Display. A dash for a non-HUD vehicle will not have the necessary square cutout for the HUD projector and cannot be modified. Always confirm the donor vehicle had HUD or inspect the part for the cutout.
• Material & Color: The initial data specifies a Sensatec (synthetic leather) finish. However, some parts listings describe part number 51-45-9-633-583 as "Dashboard Leather Head-Up DI" in black. It is crucial to verify the material (Sensatec vs. genuine leather) and the exact color and stitching of the used part to match your vehicle's interior.

Step 2: Physical Inspection

• Check for Warping: Lay the dash on a flat surface to check for any warping, especially along the long edge that meets the windshield.
• Inspect the Surface: Look for any signs of the material lifting, bubbling, or peeling. Pay close attention to the defroster vent areas, which are exposed to the most heat.
• Examine Mounting Points: Carefully check all plastic mounting tabs and screw holes on the underside for cracks or stress marks. A broken tab can lead to a poor fit and persistent rattles.
• Airbag Door Integrity: Ensure the passenger airbag door is perfectly flush and shows no signs of tampering or prior deployment. Never purchase a dash panel from a vehicle where the airbag was deployed.

Why Choose Used OEM?

For a component this integral to a vehicle's interior fit, finish, and safety, a used OEM part is the superior choice. It guarantees perfect alignment with the curved display, vents, trim, and airbag system. Aftermarket dash panels for these specific models are not produced due to the complexity and low demand.

Replacement Overview

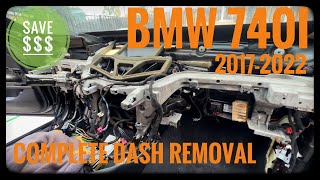

• Installation Difficulty: 5 out of 5 (Professional level 🎬 Watch: Complete BMW dashboard removal procedure)
• DIY Feasible: No
• Estimated Time: 8-12 hours

The replacement process involves removing the steering wheel, the entire curved display assembly, A-pillar trims, the center console, glove box, and numerous electrical connectors. Special care must be taken when handling the large, expensive curved display. After installation, the Head-Up Display may require position recalibration using diagnostic software.

Cost Comparison

Prices can vary based on supplier and condition. The following is an estimated breakdown:

Frequently Asked Questions (FAQ)
