2004 BMW X3 Dash Panel: Cracks, Rattles, and Airbag System Guide
Learn to identify common dash problems, understand the critical passenger airbag system, and choose the right used replacement for your E83 X3.
- Dash panel replacement is a highly complex job (5/5 difficulty) and professional installation is strongly recommended due to the integrated passenger airbag system.
- A critical recall (NHTSA 08V384000) affects the passenger airbag system in 2004-2006 X3s; an airbag warning light may mean the passenger airbag is disabled.
- When buying a used dash, verifying the correct color and meticulously inspecting all mounting tabs for damage are the most important steps.
- Common failures are cosmetic, such as cracking from sun exposure and rattling from loose or broken clips.
Symptoms of Dash Panel Failure
Failure of the dash panel in a 2004 BMW X3 is typically related to physical and cosmetic issues rather than mechanical breakdown. These problems can develop over time due to sun exposure, temperature changes, or physical stress.
1. Cracking and Warping
Prolonged exposure to sunlight and heat is a primary cause of dashboard damage. The UV rays can cause the plastic and vinyl materials to become dry, brittle, and lose their flexibility, leading to cracks, especially around high-stress areas like the defroster vents and the passenger airbag outline. In severe cases, the entire dash can warp, causing poor fitment against the windshield and A-pillars.
2. Peeling or Delaminating Surface
On models with a soft-touch or leather-wrapped surface, the top layer can begin to separate from the underlying plastic structure. This is often caused by the breakdown of the factory adhesive due to heat and age. You might notice bubbling or peeling, which starts at the edges and can spread across the entire panel.
3. Rattles and Creaking Noises
As the vehicle ages, the dash panel can become a source of interior rattles and creaks. These noises are often most noticeable when driving over bumps or on rough roads. They can be caused by loose mounting hardware, broken clips, or the dash material itself flexing and rubbing against other interior components like the windshield or center console.
4. Sticky or Gummy Surface
In some cases, the plastics on the dashboard and other interior components can degrade, resulting in a sticky or gummy texture. This is a chemical breakdown of the material itself, often accelerated by heat and the use of harsh interior cleaning chemicals.
Airbag Warning Light: While not a failure of the dash panel itself, an illuminated airbag warning light is a critical safety issue related to a component in the dash. For the 2004-2006 X3, this is often linked to a recalled passenger seat occupancy sensor mat, which deactivates the passenger airbag. If this light is on, the passenger airbag may not deploy in an accident.
Buying a Used 2004 BMW X3 Dash Panel
Due to the high cost of a new OEM dash panel, a used or recycled part is often the most practical solution. Here’s what to look for to ensure you get a quality replacement.
Key Inspection Points:
- Check for Cracks and Warping: Carefully inspect the entire surface for any cracks, especially in the common failure zones near the windshield vents and around the passenger airbag seam. Lay the dash on a flat surface to check for any significant warping that could cause installation problems.
- Inspect All Mounting Points: This is critical. A dash panel is held in by numerous screws and clips. Turn the dash over and meticulously check every single mounting tab, screw hole, and clip receiver. Broken tabs are a major red flag and can lead to a poor fit and persistent rattles.
- Verify Color and Trim: The 2004 X3 was available with several interior colors (e.g., Black, Beige, Grey). The dash color must match your vehicle's interior. BMW does not typically put an interior color code on the vehicle's data sticker; it is often encoded in the VIN or found on a build sheet, sometimes located under the rear seat. The safest method is to visually match the part or provide the seller with your vehicle's VIN.
- Examine the Airbag Area: Do not purchase a dash panel from a vehicle where the passenger airbag was deployed. The deployment can cause hidden structural damage, stretch the material, and break the pre-weakened seam, making it unsafe for reuse.
- Check the VIN of the Donor Car: If possible, get the VIN of the vehicle the dash came from. This allows you to check the vehicle's history and confirm its model year and options.
Pro Tip: When buying online, ask the seller for high-resolution photos of the front, back, and all mounting tabs. A reputable seller of recycled OEM parts will be happy to provide this to ensure you're getting a quality, damage-free component.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
The most significant issue related to the 2004 X3's dash area is the airbag system.
NHTSA Recall 08V384000: Passenger Airbag Sensor Mat
BMW issued a recall for 2004-2006 X3 models due to a faulty front passenger seat occupant detection mat. Over time, small cracks could develop in the sensor mat located in the seat cushion. This fault causes the system to deactivate the passenger front airbag, and the airbag warning light will illuminate on the dash. In the event of a crash, the passenger airbag would not deploy. The remedy involved reworking the sensor mat and extending the warranty on the component to 10 years. While this recall pertains to the seat, not the dash itself, the warning light appears on the instrument cluster within the dash, making it a relevant diagnostic point.
No specific TSBs relating to dash panel cracking, peeling, or rattling on the 2004 X3 were found during research. Most issues are attributed to age and environmental exposure.
Replacement and Installation
Replacing the dash panel on a 2004 BMW X3 is a highly complex and time-consuming task recommended for professional technicians or very experienced DIY mechanics.
- Difficulty: 5 out of 5
- Estimated Time: 8-12 hours
- DIY Feasible: Not recommended for beginners.
The process involves dismantling a significant portion of the vehicle's interior. Key steps include:
- Disconnecting the battery: This is a mandatory first step for safety, especially when working with airbags.
- Removing the steering wheel and airbag.
- Removing the instrument cluster.
- Removing A-pillar trims, the glovebox, and lower dash panels.
- Removing the center console, radio, and climate control unit.
- Carefully disconnecting and removing the passenger airbag module.

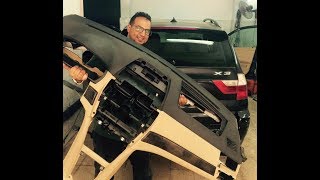

- Unbolting the main dash assembly from the firewall and side pillars. 🎬 Watch this step-by-step BMW X3 dashboard removal guide
Warning: Improper handling of the airbag system can result in accidental deployment, causing serious injury. The system must be handled by a qualified technician. After installation, the airbag system may require diagnostics to ensure it is functioning correctly.
Cost Comparison
The price of a replacement dash panel varies significantly based on the source.
| Part Source | Estimated Cost |
|---|---|
| New OEM | $800 - $1,800+ (Varies by color/trim) |
| New Aftermarket | Not commonly available |
| Used OEM | $250 - $700 |
| Shop Labor | $826 - $1,212+ |
Frequently Asked Questions (FAQ)
Can I just repair the cracks in my existing dash?

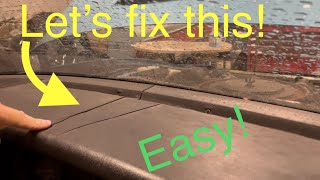

Yes, crack repair is possible using vinyl and plastic repair kits. This involves cleaning and sometimes widening the crack, filling it with a flexible compound, and then texturing and coloring the surface to match. 🎬 See this step-by-step guide on repairing a cracked dashboard However, achieving a perfect, invisible repair is very difficult, and the repair may not be a permanent solution, especially in high-heat climates.
Why is my airbag light on after replacing the dash?
An airbag light after reassembly usually indicates a missed connection or a fault detected by the system. Ensure all connectors for the instrument cluster, passenger airbag, and any related modules are securely plugged in. The fault code will need to be read with a BMW-compatible scan tool to identify the specific problem and then cleared after the issue is resolved.
How do I find my interior color code to order the right dash?

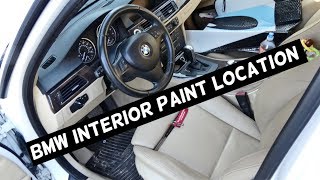

Unlike exterior paint codes, BMW interior color codes are not usually found on a simple sticker in the door jamb. The information is tied to the VIN. You can try using an online VIN decoder or contact a BMW dealership parts department with your VIN. 🎬 Watch how to locate the interior paint code on a BMW Alternatively, a build sheet with this information may be located under the rear seat cushion.
Is a dash from a 2005 or 2006 X3 compatible with my 2004?
Yes, the dash panel for the first-generation (E83) BMW X3 is generally the same from 2004 through the 2006 model year. However, always verify compatibility by matching the OEM part number. The key differences will be color and potentially trim options (like wood or aluminum trim inserts), so visual confirmation is important.
Helpful Videos
Technical Specifications
OEM Part Numbers: 51453413300 51453414558 51453415486
Fits E83 chassis. Available in multiple interior colors including Black, Grey, and Beige (Sandbeige).
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
