2023-2025 GR Corolla Dash Bezel: A Guide to Trim Finishes, Rattles, and Replacement
This guide explains the critical finish differences between Core, Premium, Circuit, and Morizo dash bezels and how to fix common interior rattles.
- The dash bezel's finish is specific to the trim level (Core, Premium, Circuit, Morizo); you must match the part number suffix to ensure a correct visual match.
- When buying a used bezel, the most critical inspection is to check that all mounting tabs on the back are intact, as even one broken tab can cause rattles.
- Rattles are a common complaint, but may not be the bezel itself. Check the A-pillars and the cover behind the rearview mirror before replacing parts.
- A blank instrument screen is a separate, serious issue covered by a safety recall (NHTSA 25V595000) and requires a dealer software update.
Part Variants: Core, Premium, Circuit, and Morizo Finishes
The most important factor when buying a replacement dash bezel for a GR Corolla is the vehicle's trim level. Toyota uses different finishes and materials that are unique to each trim, meaning the parts are not visually interchangeable if you want to maintain the original factory look. The primary instrument cluster bezel is based on the part number 55410-16010, with different suffixes denoting the specific finish.
Warning: Always verify the part number and appearance of the bezel against your original part. Installing a bezel from a different trim level may fit physically but will not match your car's interior plastics and finishes.
| Part Number Suffix | Trim Level(s) | Description / Finish |
|---|---|---|
| 55410-16010-C0 | Core | Standard black/silver finish. |
| 55410-16010-C1 | Morizo Edition | This part is listed for models both with and without the Morizo package, suggesting it may be a widely used finish or specific to certain option packages. The Morizo specifically uses a unique Brin Naub® suede-like material on other dash panels. |
| 55410-16010-C2 | Circuit Edition / Premium | Described as a "Without Morizo silver" finish, this is likely for the Circuit and Premium trims which share many interior appointments. |
| 55403-02610-C0 | Morizo Edition | This is a separate lower-left finish panel, specifically noted as being for the Morizo Edition in black. |
Symptoms of a Failing Dash Bezel
Since the dash bezel is a static trim piece, "failure" is almost always related to physical damage or fitment issues, not mechanical problems.
- Rattling or Buzzing Noises: This is the most common complaint among GR Corolla owners. A buzzing or rattling sound from the dashboard, especially over rough roads or at certain engine RPMs, can be caused by a loose bezel with broken or weak mounting clips. However, owners report that similar noises often come from the A-pillar trim, the front camera cover behind the rearview mirror, or even the brake pedal assembly, so it's important to isolate the sound before replacing parts.
- Cosmetic Damage: The plastic bezel, particularly the clear lens over the gauges, can be prone to scratches and scuffs from cleaning or general wear.
- Poor Fitment: If the bezel is not sitting flush with the dashboard, it's a clear sign that it was not installed correctly or that some of its mounting tabs are broken.
Pro Tip: To diagnose a rattle, have a passenger safely press on different parts of the dash trim (bezel, A-pillars, speaker grilles) while the car is making the noise. If the noise stops when pressure is applied to the bezel, you've found your culprit.
Buying a Used GR Corolla Dash Bezel
A used OEM bezel is a great value, as aftermarket options are rare for this specific part. Careful inspection is critical to getting a good part.
- Inspect All Mounting Tabs: This is the most important step. Turn the bezel over and check every single plastic tab and clip location. Ensure none are cracked, broken, or show white stress marks. Even one broken tab can prevent the bezel from sitting securely, leading to persistent rattles.
- Verify the Finish and Part Number: Double-check that the part number suffix (-C0, -C1, -C2) matches the trim of your vehicle. Ask the seller for clear photos of the part number sticker if it's not visible in the listing.
- Check for Scratches: Closely examine the surface for deep scratches or scuffs, especially on the clear plastic that covers the instrument display. Minor scuffs may be acceptable, but deep gouges will be visible from the driver's seat.
- Look for Warping: Ensure the part is not warped or bent, which could indicate it was stored improperly or removed from a vehicle with sun damage. It should lay flat on a level surface.
Installation Guide
Replacing the GR Corolla dash bezel is a relatively simple DIY task. The difficulty is low, but patience and the right tools are key to avoiding damage.
- Difficulty: 1/5
- Estimated Time: 0.5 Hours
- Tools Required: Plastic trim removal tool kit.
Step-by-Step Process:
- Begin by grabbing the bottom edge of the instrument cluster bezel and pulling firmly up and out. It is held in by clips.
- You may need to use a plastic trim removal tool to gently pry the corners if it's tight, but it is designed to be removed by hand.
- Be careful of any connected wires for buttons that may be part of the bezel assembly on some trims. Disconnect these by pressing the release tab on the connector.
- To install the new bezel, align the clips with their corresponding slots in the dashboard and press firmly and evenly around the perimeter until it snaps securely into place.
Known Issues, TSBs, and Recalls
While there are no recalls specifically for the plastic dash bezel itself, there is a significant safety recall related to the instrument panel it surrounds.
- Recall 24V548000 / 25V595000: Blank Instrument Panel Display. Toyota issued a recall for many 2023-2025 models, including the GR Corolla, because the digital instrument cluster can fail to start, leaving the driver with a blank screen and no access to the speedometer or warning lights. This is caused by a software error and is unrelated to the physical bezel, but it is critical information for any owner experiencing a blank gauge cluster. The fix is a software update performed by a dealer.
- Interior Rattles: While not a TSB, interior rattles are a widely discussed issue in owner forums. The stiff suspension and performance focus of the GR Corolla can make minor trim noises more apparent.
Cost Comparison
| Part Type | Estimated Cost |
|---|---|
| New OEM | $110 - $170 |
| New Aftermarket | $75+ (Carbon fiber overlays) |
| Used OEM | $50 - $100 |
| Shop Labor | $50 - $100 |
Frequently Asked Questions
Will a Circuit Edition bezel fit on a Core model?
Physically, it will likely fit as the dashboard structure is the same. However, the color and finish of the plastic will not match the rest of your Core trim, creating a mismatched look in your interior.
How can I fix a rattling dash bezel without replacing it?
If the rattle is caused by a loose fit and not a broken tab, you can try applying small pieces of felt or foam tape to the contact points on the back of the bezel. This can cushion the panel and stop it from vibrating against the dashboard. Many owners have had success using this method to quiet various interior rattles.
My instrument screen is completely black. Is this a bezel problem?
No. A blank instrument screen is not caused by the plastic bezel. This is a known issue covered by Toyota recall 25V595000. Your vehicle's instrument panel software needs to be updated by a Toyota dealer, which will be done free of charge.
Can I remove the clear plastic cover over the gauges?
Some owners have considered removing the clear plastic lens that is part of the bezel assembly because it can scratch easily. While this is possible, it would expose the underlying LCD screen to dust, moisture, and potential damage. It is not recommended.

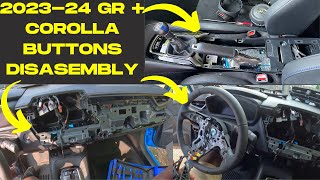

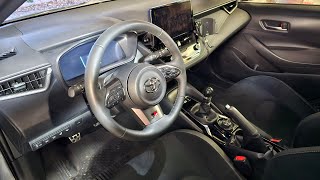

Helpful Videos
Technical Specifications
OEM Part Numbers: 55410-16010-C0 55410-16010-C1 55410-16010-C2 55403-02610-C0 4528712760 5541012E20C0 5541016010
Material: Molded plastic. Finishes vary by trim level (e.g., black/silver, suede accents).
