2003-2006 Kia Sorento Coolant Pump: The Critical Link to Your Timing Belt

Known Issues for 2003-2006 Sorento 3.5L Engines

The single most important thing to understand about the coolant pump on a 2003-2006 Kia Sorento with the 3.5L V6 engine is its relationship with the timing belt. The water pump is driven by the timing belt, not a separate, external serpentine belt. This design has critical implications for maintenance and repair.

The 3.5L V6 is an interference engine. This means the pistons (which move up and down) and the valves (which open and close) occupy the same space in the cylinder, but at different times. The timing belt is responsible for keeping these components perfectly synchronized. If the timing belt breaks, the pistons will slam into the open valves, causing catastrophic engine damage that often requires a complete engine replacement.

Because the water pump is located behind the timing belt covers and driven by the belt, replacing it is a labor-intensive job. Mechanics must perform all the steps of a timing belt replacement just to access the pump. Therefore, it is standard and highly recommended practice to replace the water pump, timing belt, tensioner, and idler pulleys all at the same time, even if only one component has failed. This prevents having to pay for the same expensive labor twice.

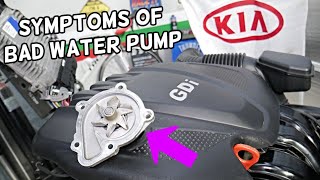

Symptoms of a Failing Coolant Pump

A failing coolant pump will usually provide clear warning signs. Ignoring them can lead to engine failure.

• Engine Overheating: This is the most serious symptom. If the pump's impeller is damaged or the pump has seized, it cannot circulate coolant, causing the engine temperature to rise quickly. Driving an overheating vehicle can warp cylinder heads and cause permanent engine damage.
• Coolant Leaks: You may notice puddles of green, pink, or orange fluid under the front-center of your Sorento. As the internal seals of the pump fail, coolant will escape through a "weep hole," which is designed to indicate a problem. The leak may start small but will worsen over time.
• Whining or Grinding Noise: A high-pitched whining or grinding sound coming from the front of the engine that changes with engine RPM is a classic sign of a failing water pump bearing. This means the pump is about to seize.
• Visible Wear or Wobble: If you can access the pump pulley (it may be behind covers), check for any wobble or play. A loose or wobbly pulley indicates a worn-out bearing.

Buying a Used Coolant Pump: A Word of Caution

For most parts, a quality used OEM component is a smart, cost-effective choice. However, for the 2003-2006 Sorento's 3.5L water pump, this is strongly discouraged.

The reason is simple: risk versus reward. The labor cost to replace this water pump is extremely high, often exceeding $600, because it requires a full timing belt service. A new, high-quality aftermarket water pump kit (including the belt and tensioners) can be purchased for $150-$300. A used pump might save you $100 on the part, but it carries an unknown service life. If that used pump fails in a year, you will have to pay the entire labor cost all over again.

Even worse, if the used pump seizes, it could break the timing belt and destroy your engine, costing you thousands. Given the critical role of this part and the high cost of labor, the small upfront savings of a used pump are not worth the immense financial risk.

If you absolutely must inspect a used pump, here is what to check:

• Shaft Play: Hold the pump and try to wiggle the hub where the pulley mounts. There should be zero side-to-side or in-and-out play. Any movement means the bearing is worn.
• Weep Hole: Inspect the weep hole for any signs of dried coolant residue or staining. This indicates the internal seal has already failed.
• Impeller: Check that the impeller (the finned wheel that moves the coolant) is made of metal, not plastic. Ensure it is tight on the shaft and that the fins are not corroded or broken.
• Smooth Rotation: Turn the hub by hand. It should spin smoothly with a slight resistance. Any grinding, roughness, or catching indicates a bad bearing.

Cost Comparison

The cost of replacing the water pump is dominated by labor. Because the job requires replacing the timing belt at the same time, prices reflect a full timing belt service.

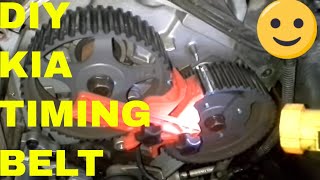

Replacement and Installation

• Difficulty: 5 out of 5 (Expert)
• Estimated Time: 5-7 hours
• DIY Feasible: Not recommended for beginners.

This is a complex and precise job that requires special tools, including cam lock tools to hold the camshafts in place and a robust tool to remove the crankshaft pulley bolt. The front of the engine must be significantly disassembled, including removing drive belts, the radiator fan, and timing covers. The most critical part of the job is correctly setting the engine timing. An error of even one tooth on the timing belt can lead to poor performance or engine damage. Due to the high risk of catastrophic engine damage if done incorrectly, this job is best left to experienced technicians.

Related Parts to Replace

When replacing the water pump, you should always replace the following as a kit:

• Timing Belt
• Timing Belt Tensioner (Hydraulic Actuator)
• Timing Belt Idler Pulley
• Water Pump Gasket and O-rings
• Coolant/Antifreeze

It is also a good time to inspect and replace the serpentine drive belts, camshaft seals, and crankshaft seal if they show any signs of leaking.

Recalls and Technical Service Bulletins (TSBs)

As of this writing, there are no specific recalls or TSBs from Kia or the NHTSA directly addressing the water pump for the 2003-2006 Sorento. Recalls for this generation have focused on issues like stop lamp switches and fuel lines. The water pump is considered a standard wear-and-tear maintenance item, though its failure mode is critical on this engine.

OEM Part Numbers and Compatibility

This coolant pump fits the 3.5L DOHC V6 "Sigma" engine only, used in the 2003-2006 Kia Sorento.

• 25100-39802 (Current)
• 25100-39800 (Replaced by 25100-39802)
• 25100-39001
• 25100-39002

Always verify fitment with the seller using your vehicle's VIN.
