2004-2006 Sprinter 2500 & 3500 Coolant Pump: Leaks, Overheating, and Replacement Guide

Symptoms of a Failing Coolant Pump

A bad coolant pump on the 2004-2006 Dodge Sprinter 2500 and 3500 will give you clear warning signs. Ignoring them can lead to severe engine damage, so it's important to act quickly.

1. Coolant Leaks

This is the most common symptom. You may notice drips or puddles of coolant (typically blue or pink) under the front of the engine. The leak often originates from the pump's "weep hole." This small hole is designed to let a tiny amount of coolant escape when the internal seals start to fail. A consistent drip from this area means the pump needs to be replaced soon. You might also see coolant stains on the belts or the front of the engine.

2. Engine Overheating

If the pump's internal impeller breaks or the bearing seizes, it can no longer circulate coolant effectively. This will cause the engine temperature gauge to climb rapidly, especially when idling or in stop-and-go traffic. Driving with an overheating engine is extremely risky and can lead to a warped cylinder head or blown head gasket. If you see the temperature rising, pull over and shut off the engine as soon as it is safe to do so.

3. Whining or Grinding Noise

A high-pitched whining or grinding sound coming from the front of the engine that changes with engine RPM is a classic sign of a failing water pump bearing. The bearing supports the pump shaft, and when it wears out, it creates noise and can eventually seize completely.

4. Wobbly Pulley

If the bearing is severely worn, you may be able to physically wiggle the pulley on the front of the water pump. With the engine off, grab the pulley and try to move it back and forth. Any noticeable play or looseness indicates a bad bearing and imminent failure.

Buying a Used Coolant Pump: What to Check

A low-mileage, used OEM coolant pump can be a reliable and cost-effective alternative to a new, cheap aftermarket part. High-quality OEM castings and bearings often provide superior longevity. Here’s what to inspect before you buy:

• Inspect the Weep Hole: Look closely at the small weep hole on the pump housing. Any signs of dried coolant (a white, pink, or blue crusty residue) mean the internal seal has failed. Do not buy a pump that shows any evidence of leaking from this hole.
• Check the Pulley Bearing: Spin the pulley hub by hand. It should rotate smoothly and silently. If you feel any roughness, grinding, or notchiness, the bearing is bad. Grab the hub and try to wiggle it from side to side; there should be no noticeable play.
• Examine the Housing: Check the aluminum housing for any cracks, especially around the bolt holes and hose connections. Look for heavy corrosion or pitting on the gasket mating surface, as this could prevent a proper seal.
• Verify Part Numbers: Ensure the part is a genuine OEM unit. Look for part numbers like 5138057AA (Dodge/Chrysler) or A6472000101 (Mercedes-Benz).
• Consider Mileage: Ask for the mileage of the donor vehicle if possible. A pump from a vehicle with under 100,000 miles is preferable. Since it's a wear item, a pump from a high-mileage van will have a shorter remaining service life.

Known Issues, Recalls, and TSBs

As of this writing, there are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) that directly address the main engine coolant pump for the 2004-2006 Dodge Sprinter 2500 or 3500 with the 2.7L diesel engine. Searches for cooling system issues primarily point to general wear and tear failures of the pump, hoses, and radiator.

Some related service campaigns for these vehicles include:

• Recall D53 (2005): Addressed leaking tire valve stems on 2002-2005 models. This is unrelated to the cooling system.
• Emissions Recall T21: Required an ECU software update related to the Mass Air Flow (MAF) sensor logic on 2004-2006 models. This is unrelated to the coolant pump.

Owners should be aware of an auxiliary electric water pump that circulates coolant to the EGR cooler. Failure of this separate, smaller pump can cause the EGR system to overheat but is a distinct issue from the main, belt-driven engine coolant pump discussed here.

Cost of Replacement

The cost to replace the coolant pump on a 2004-2006 Sprinter can vary significantly based on the parts used and local labor rates. The job is labor-intensive due to tight access.

Replacement Overview & Difficulty

Replacing the coolant pump on the 2.7L Sprinter is a moderately difficult job that requires patience and the right tools. Access is tight, and several components must be removed to reach the pump.

• Difficulty Rating: 4 out of 5
• Estimated Time: 3-5 hours

High-Level Steps:

1. Disconnect the battery and drain the cooling system via the radiator petcock.
2. Remove the front grille and potentially the radiator support crossmember for better access.
3. Remove the engine fan and fan clutch (this may require a special tool).
4. Release tension on the serpentine belt and remove it from the pulleys.
5. Unbolt any pulleys obstructing access to the water pump bolts.
6. Disconnect the coolant hoses from the pump.
7. Remove the water pump mounting bolts (a mix of E-Torx sizes, typically E10 and E12) and carefully pry the pump off the engine block.

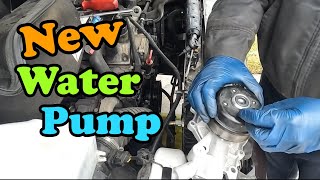

🎬 Watch: DIY video on removing the Sprinter water pump
8. Thoroughly clean the old gasket material from the engine block surface.
9. Install the new pump with a new gasket.
10. Reassemble all components in reverse order.
11. Refill the cooling system with the correct specification coolant and bleed any air from the system.
