2003-2008 BMW Z4 Convertible Top Motor: The Water Damage Guide
Learn why the hydraulic motor for your Z4's convertible top fails from water intrusion and how to diagnose, replace, and prevent it from happening again.
- The primary cause of failure is water damage due to clogged convertible top drains, which submerges the motor.
- Before buying a used motor, inspect it carefully for any signs of rust or corrosion, especially on the electrical connector.
- When replacing the motor, it is critical to clean the drain tubes thoroughly to prevent the new part from failing for the same reason.
- For a permanent solution, consider relocating the replacement motor to a higher, dry location within the trunk.
Symptoms of a Failing Convertible Top Motor
When the convertible top hydraulic motor begins to fail, the signs are usually clear. Being aware of these symptoms can help you diagnose the problem before you get stuck with the top halfway down.
- Top doesn't move, but you hear a click: When you press the button, you might hear a click from a relay, but the motor itself makes no sound. This often points to a seized or dead motor.
- Flashing red light on the top's control button: This is a general fault indicator. If the top unlatches from the windshield but then stops moving and the light flashes, it's a strong sign of a problem with the main hydraulic motor.
- Slow or struggling operation: If the top moves much slower than it used to, or seems to groan and struggle, the motor may be failing or the hydraulic fluid could be low due to a leak.
- Motor whirs but nothing happens: If you can hear the motor running but the top doesn't move, this could indicate a loss of hydraulic pressure. This might be caused by low fluid from a leak or an internal failure in the pump section of the unit.
- No sound at all: Complete silence when pressing the button could be a simple blown fuse, a bad relay, or a completely failed motor that isn't receiving power.
The Root Cause: Water Damage from Clogged Drains
The single most common reason for convertible top motor failure in the E85 Z4 is a design flaw related to its placement. BMW located the hydraulic motor assembly inside a plastic housing, which sits in a collection tray on the driver's side of the trunk area, below the convertible top assembly. This area is designed to catch water runoff from the roof and channel it out of the car through two drain tubes.

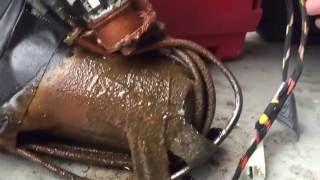

Warning: Over time, these drain tubes become clogged with leaves, dirt, and other debris. When this happens, the collection tray fills with rainwater, submerging the motor assembly. Although the motor is in a plastic case, it is not fully waterproof. Water seeps in, causing the electric motor to corrode, rust, and eventually seize. The foam sound-deadening material inside the case acts like a sponge, holding water against the motor and accelerating its failure.
Buying a Used 2003-2008 Z4 Convertible Top Motor
Due to the high cost of a new OEM unit, a used motor is a popular and practical choice. However, because of the common water damage issue, careful inspection is critical.
What to Check Before You Buy
- Inspect for Corrosion: This is the most important check. Look closely at the metal casing of the electric motor. Any signs of rust, bubbling paint, or a white, chalky residue are red flags for water damage. Pay special attention to the electrical connector and pins; any green or white powder indicates corrosion and you should reject the part.
- Ask About the Source Vehicle: Inquire if the motor was tested before being removed from the donor car. A motor from a low-mileage, front-end collision vehicle is often a good bet, as it was likely working and dry at the time of the accident.
- Check the Hydraulic Fluid: If possible, check the fluid level and condition in the reservoir. The fluid should be clear; milky or discolored fluid suggests water contamination.
- Verify Part Numbers: Ensure the part number matches your vehicle's requirements. Common part numbers include 54347193448 and its predecessors 54347119633 and 54347016893.
A used OEM motor that is clean and dry is often a more reliable and affordable option than a cheap aftermarket alternative. The original BMW units are well-made; their failure is almost always due to external water damage, not a manufacturing defect.
Installation Overview & Prevention
Replacing the convertible top motor is a common DIY job for Z4 owners and is considered moderately difficult.
- Difficulty: 3 out of 5
- Time: 2-4 hours
- Process: While some guides suggest the entire roof must be removed, many owners have successfully replaced the motor by accessing it through the trunk. This involves removing trunk liners and the convertible top shelf to gain access. 🎬 Watch this step-by-step motor replacement and drain unblocking guide The motor is then unbolted and the hydraulic and electrical lines are disconnected.
Pro Tip: While you are replacing the motor, it is absolutely essential to clean the roof drain tubes. Many owners also choose to relocate the new or used motor to a higher, drier location in the trunk to permanently prevent future water damage. This involves extending the hydraulic lines and electrical wiring and securing the motor in a safe spot away from any potential water intrusion.
🎬 See how to relocate your Z4 roof motor to the trunkKnown Issues, TSBs, and Recalls
As of this writing, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the convertible top hydraulic motor on the 2003-2008 BMW Z4. The common failure is widely documented in owner forums and by independent repair shops as a design flaw related to the location of the motor and clogging of the roof drains.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $890 - $1,025 |
| Used OEM | $250 - $500 |
| Remanufactured | $400 - $700 |
| Shop Labor | $500 - $1,000+ |
Frequently Asked Questions
How do I operate the convertible top manually if the motor fails?
You can operate the top by hand in an emergency. In the trunk, on the driver's side, there is a red plastic pull-ring. Pull this ring out and turn it 90 degrees to lock it in the open position. This opens a bypass valve in the hydraulic pump, relieving the pressure. You can then manually push the top open or pull it closed. The front latch at the windshield may still operate electrically with the button, but if it doesn't, you can use the Allen key from the vehicle's toolkit to manually lock or unlock it.
🎬 Watch a demonstration on manually opening the Z4 convertible topWhere are the drain plugs that cause this problem?
There are two main drain holes located under the convertible top assembly, one on each side of the car. They are designed to channel water from the roof area down through tubes that exit underneath the car, just in front of the rear wheels. These drains are prone to clogging with leaves and debris. Accessing them for a thorough cleaning is best done with the top partially open or by removing trunk trim panels.
What kind of hydraulic fluid does the Z4 convertible top use?
The system typically uses Pentosin CHF 11S or the equivalent CHF 202 synthetic hydraulic fluid. It is important to use the correct fluid to ensure the longevity and proper operation of the hydraulic seals and pump.
Can I just replace the electric motor instead of the whole pump assembly?
Yes, in many cases, only the electric motor part of the assembly is damaged by water. The hydraulic pump portion is often still functional. It is possible to separate the motor from the pump and replace only the motor. Some owners have even had success reviving a seized motor by disassembling, cleaning corrosion, drying it thoroughly (sometimes in an oven on low heat), and lubricating it.
Helpful Videos
Technical Specifications
OEM Part Numbers: 54347193448 54347119633 54347079586 54347016893
System uses Pentosin CHF 11S or CHF 202 hydraulic fluid.
