2023-2025 Kia Sportage Control Console Panel: Navigating the Switchable Touch Interface and Programming
This guide covers the common issues, replacement costs, and critical programming requirements for the integrated climate and infotainment control panel in the 2023-2025 Kia Sportage.
- Programming by a Kia dealer or specialist is almost always required after installation.
- This panel is for vehicles with factory navigation; ensure the part number (96540-P1000FHL) and features match your vehicle.
- Many electronic glitches can be caused by software issues; check for TSBs and recalls before replacing the hardware.
- The unique switchable interface is a common source of user confusion; ensure you understand how to switch between climate and infotainment modes.
Symptoms of a Failing Control Console Panel
Since this panel controls multiple functions, failure can manifest in several ways. Problems often relate to the touch interface, the display it controls, or the underlying software.
- Unresponsive Controls: The touch-sensitive buttons for climate or media functions do not respond to input, or the physical knobs fail to adjust temperature or volume.
- Black or Flickering Screen: The main infotainment display, which this panel controls, may go black, flicker intermittently, or fail to turn on. This can be a temporary glitch or a sign of a hardware failure.
- Inability to Switch Modes: The panel may get stuck in either climate or infotainment mode, preventing you from accessing the other set of controls.
- Climate Control Malfunctions: The heater or air conditioning may stop working, get stuck on a certain temperature, or the blower motor may not respond to fan speed adjustments.
- Settings Not Saving: Climate control settings may reset to a default state (e.g., 72 degrees, auto-off) every time the vehicle is started.
- System Glitches and Reboots: The entire infotainment system may randomly reboot, or you might see error messages on the screen. This is often a software issue that can sometimes be fixed with an update from the dealer.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
While the control panel itself has not been the subject of a specific recall, the 2023-2025 Sportage has several related electrical system recalls and TSBs that owners should be aware of.
- NHTSA Recall 23V298000: Affects some 2023 Sportage models where the digital instrument cluster (the screen behind the steering wheel) may fail to display any information on startup. This requires a software update from a dealer.
- NHTSA Recall 25V874000: This recall is for certain 2023-2025 Sportage models equipped with a specific tow hitch harness accessory. A software error can cause the instrument panel screen to go blank. The fix involves replacing the tow hitch harness control module.
- TSB ELE399: For some 2023-2024 Sportage Hybrid models, this TSB addresses a software upgrade for the Battery Management System (BMS) to fix issues with the 12V battery discharging excessively while parked, which can lead to a no-start condition.
- TSB SA569: Provides a software update for the main infotainment head unit to resolve various issues with Apple CarPlay® and Android Auto™ connectivity.
- General Electrical Complaints: Owners have reported a range of electrical issues to the NHTSA, including screens going blank, infotainment systems rebooting, and cruise control disengaging unexpectedly.
Important: Many reported issues are software-based. Before replacing hardware, always check with a Kia dealer to see if any software updates or TSBs apply to your vehicle's VIN. A simple software flash can often resolve issues that seem like a hardware failure.
Programming and Installation Requirements
This is the most critical section for anyone considering a replacement. Replacing this control panel is not a simple plug-and-play operation.
Yes, this module will almost certainly require programming by a dealership or a qualified independent shop with the proper tools.
- Dealer-Level Tools Required: Programming is performed using the Kia Diagnostic System (KDS), which is the official dealer software. While some advanced aftermarket tools and remote services claim to offer programming, their success can be inconsistent.
- Variant Coding: Kia modules often require "variant coding" after installation. This process tells the new module about the specific options and configuration of the vehicle it's in. Without this step, the module may not function correctly, and you may have persistent error codes. 🎬 Watch: How Hyundai and Kia module programming works
- Anti-Theft/Immobilizer: While this specific panel is not typically a primary immobilizer component, it is deeply integrated into the vehicle's electronics. Incorrect programming can cause communication errors with other modules.
Pro Tip: If you are buying a used control panel, it is essential to get the Vehicle Identification Number (VIN) from the donor car. This can sometimes help a technician understand the original configuration, but it does not eliminate the need for reprogramming the part to your specific vehicle.
Buying a Used 2023-2025 Sportage Control Console Panel
Purchasing a used OEM panel can offer significant savings over a new part, but it requires careful attention to detail.
- Match the Part Number Exactly: The most important step is to match the OEM part number precisely. The primary part number for the navigation-equipped version is 96540-P1000FHL (also seen as 96540P1000FHL). Do not rely on visual appearance alone; different numbers may look identical but have different internal software or hardware for different trim levels (e.g., with/without navigation, with/without hybrid).
- Verify Vehicle Options: This part is for vehicles equipped with factory navigation. Ensure the panel you are buying comes from a vehicle with the same options as yours.
- Inspect for Physical Damage: Check the touch surface for any deep scratches, cracks, or signs of delamination (bubbling). While minor cosmetic wear is expected with a used part, any damage to the touch surface itself can render it unusable.
- Factor in Programming Costs: Remember that the price of the part is not your final cost. You MUST budget for professional programming, which can cost several hundred dollars. Call local dealerships or specialized auto electronics shops beforehand to get a quote for programming a customer-supplied used module.
- Ask About the Donor Vehicle: If possible, get the mileage from the donor vehicle. While these are solid-state electronics, lower mileage is generally preferable. More importantly, confirm the part is from a 2023-2025 Sportage.
Cost Comparison for Replacement
The cost to replace the Sportage Control Console Panel can vary significantly based on the source of the part and labor rates.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM Part | $740 - $1,125 | Purchased from a Kia dealership parts counter or online OEM supplier. |
| Used OEM Part | $100 - $400 | Price depends on condition and seller (e.g., eBay, salvage yard). Does not include programming. |
| New Aftermarket | Not Yet Available | Due to the complexity and integrated nature, aftermarket versions of this specific switchable controller are not common as of mid-2026. |

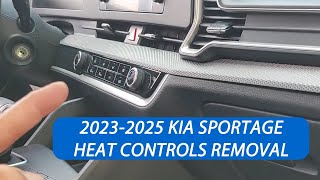

| Shop Labor (Installation) | $100 - $200 | Physical replacement is relatively simple for a technician, taking about 0.5-1.0 hours. | 🎬 See this step-by-step climate control removal guide
| Shop Labor (Programming) | $150 - $300 | This is a separate, mandatory step. Dealer labor rates for diagnostics and programming typically apply. |
Frequently Asked Questions (FAQ)
Do I have to get this part programmed by a Kia dealer?
It is highly recommended. While some top-tier independent shops or remote programming services may have the capability, a Kia dealer is the most reliable option to ensure the module is correctly coded to your vehicle's VIN and option list using the official KDS software. An improperly programmed module can cause further issues.
Why did my controls suddenly change the volume when I wanted to change the temperature?
This is a core feature of the switchable interface and a common point of confusion for new owners. The panel has two modes: 'Infotainment' and 'Climate'. You must tap a specific icon on the panel to switch between them, which changes the function of the knobs and buttons. You can also press and hold the mode-switch button to set a default mode it will revert to after a few seconds.
Can I upgrade my non-navigation Sportage with this navigation-enabled control panel?
This is not a simple swap. While the panel might physically fit, the vehicle's wiring and other computer modules are likely different. This type of retrofit would be extremely complex, costly, and may not be possible without extensive modification and programming that most dealerships would not perform.
My screen is black but the radio still plays. Is the control panel broken?
Not necessarily. This could be a failure of the main display screen (LCD) itself, a loose connection, or a software glitch in the main infotainment head unit. The control panel is the input device, but it doesn't generate the video image. A full diagnosis is needed to pinpoint the fault.
Helpful Videos
Technical Specifications
OEM Part Numbers: 96540-P1000FHL 96540P1000FHL 96540P1000
Switchable touch-sensitive controller for climate and infotainment. Designed for models with factory navigation.
