2010-2020 Fusion & Milan Center Console Guide: Fixing Latches, Peeling Trim, and Shifter Faults
Your complete guide to diagnosing common console failures and a detailed checklist for buying the correct used replacement for your Ford Fusion or Mercury Milan.
- The single most important factor is vehicle generation: consoles from 2010-2012 models are NOT compatible with 2013-2020 models.
- Before buying a used console, you must verify every option: Hybrid vs. Gas, ambient lighting, rear A/C vents, and power outlet configuration.
- For 2017+ models, a 'Shift System Fault' is likely a cheap, easy-to-fix shifter cable bushing, not a major transmission failure.
- The most common failures are physical and cosmetic, such as broken armrest latches and peeling trim, which are often simple DIY fixes.
Generation and Vehicle Guide
Before diagnosing issues or buying a replacement, it's critical to identify your vehicle's generation. The center consoles are not interchangeable between these two groups.
- First Generation (1.5): 2010-2012 Ford Fusion & 2010-2011 Mercury Milan. These vehicles are mechanically and cosmetically similar.
- Second Generation: 2013-2020 Ford Fusion. This generation saw a complete redesign, including the interior and center console.
2010-2012 Ford Fusion & 2010-2011 Mercury Milan (Gen 1.5)
The console in these models is known for physical and cosmetic wear. Failures are typically straightforward and do not involve complex electronics.
Common Problems & Symptoms
- Broken Armrest Latch: The most frequent complaint. The plastic latch that secures the armrest lid breaks, preventing the lid from staying closed. You may hear the lid rattle or see it lift up during acceleration or braking.
- Peeling Silver Trim: The silver-painted plastic trim around the gear shifter and cup holders is prone to bubbling, peeling, or chipping. This is a cosmetic issue but can leave sharp edges.
- Worn Armrest Lid: The vinyl or leather material on the armrest can crack, tear, or become compressed and uncomfortable over time.
- Broken Top Dash Storage Box: While not part of the main console, many owners experience issues with the lidded storage compartment on top of the dashboard. The plastic hinges are fragile and can break easily.
Replacement Overview
Replacing components on this generation is generally easy for a DIYer.
- Armrest Lid Replacement: This is a very simple fix. Open the console, remove the four T20 Torx screws holding the lid to the hinge, and swap the new lid on. The entire process takes less than 15 minutes. 🎬 Watch: This quick video shows the Gen 1.5 lid replacement.
- Full Console Replacement: To replace the entire assembly, you'll need to remove screws at the front and rear of the console sides (typically 7mm), as well as screws inside the storage bin (often 8mm). The trim around the shifter must be pried up carefully to disconnect wiring for the power outlet before the main body can be lifted out.
2013-2020 Ford Fusion (Gen 2)
The second-generation Fusion console is more complex, with more integrated electronics and different common failure points, especially in later model years.
Critical Warning for 2017+ Models: Shifter Cable Bushing Failure

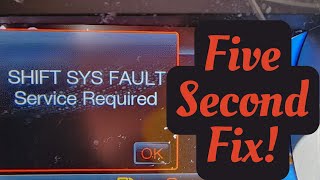

Many 2017 and newer Fusions with the rotary gear selector dial experience a "Shift System Fault" error that can prevent the car from going into gear or get it stuck in park. This is almost always caused by the failure of a small, inexpensive plastic bushing on the transmission shift cable. While Ford recalled earlier models for a similar issue, many 2017+ vehicles are not covered. The repair is simple and can be done with a new bushing kit (part number DG9Z-7K340-A or similar).
Common Problems & Symptoms
- Broken Armrest Latch: Like the first generation, the latch mechanism remains a common weak point.
- Worn Armrest Cover: The armrest material can wear out. Aftermarket replacement covers are available, but require removing the old material and gluing or stapling the new one on.
- Rotary Shifter & Electronic Faults: In addition to the bushing issue, the rotary shifter assembly itself can fail. You may also experience a complete shutdown of the center stack, where the radio, climate controls, and screen go black and become unresponsive. This can sometimes be intermittent and may be caused by a faulty control module or fuse.
- Malfunctioning Power Outlets/USB Ports: A dead power outlet is often just a blown fuse. The fuse for the center console power point is typically a 20A fuse located in the under-hood fuse box (check your owner's manual for the exact location, such as fuse #16).
Replacement Overview
- Armrest Lid Replacement: The process is similar to the first generation but requires an extra step. First, pry off the rear vent panel of the console. This exposes the four T20 Torx screws that secure the lid. 🎬 Watch: How to remove the rear panel and swap the lid.
- Rotary Shifter Replacement: This is more involved. The side panels of the console and the radio trim bezel must be pried off. This provides access to the four T20 Torx screws holding the shifter module in place. The main electrical connector must be carefully disconnected before the module can be removed.
Buying a Used Console Panel: A Buyer's Checklist
Buying a used OEM console is a great way to save money, but careful verification is essential to avoid getting the wrong part. Use this checklist before you buy.
Pro Tip: Take photos of your existing console's features, buttons, and connectors before shopping. This will be your best reference.
- Confirm the Generation: Does it match your vehicle? (2010-2012 Fusion/Milan vs. 2013-2020 Fusion). They are not cross-compatible.
- Check the Transmission Type: While most are automatic, ensure the shifter cutout matches your car (conventional lever vs. rotary dial).
- Verify Powertrain: Is your car a Hybrid or standard gas model? Hybrid consoles often have different buttons and storage configurations.
- Match Electronic Options: This is the most critical step. Check for the presence or absence of:
- Ambient Interior Lighting: Does the console have cutouts or wiring for the light pipes?
- Power Points: How many 12V outlets does it have, and where are they located?
- Rear A/C Vents: Does your car have rear vents? If so, the replacement console must have them.
- Heated/Cooled Seats: The buttons are often located on the console or nearby trim.
- Sync System: Ensure any media hubs (USB/AUX ports) match your vehicle's setup.
- Inspect for Physical Damage:
- Latch & Hinge: Test the armrest latch and hinge. Make sure the latch clicks securely and the hinge is not cracked.
- Armrest Condition: Check for tears, cracks, or deep stains in the vinyl or leather.
- Mounting Points: Look underneath and on the sides. Ensure no plastic mounting tabs or screw holes are broken off.
- Cosmetic Finish: Check for deep scratches or peeling trim that you aren't willing to live with.
Cost Comparison
Prices for console components can vary widely based on condition, source, and included features.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM Assembly | $300 - $800+ | Price for a complete console from a dealer. Individual trim pieces can also be expensive (e.g., $300+ for one panel). |
| Used OEM Assembly | $100 - $250 | Best value. Prices on sites like eBay depend heavily on condition and specific options. |
| Used OEM Armrest/Lid | $40 - $80 | A common and affordable fix for a broken latch or torn cover. |
| New Aftermarket Armrest Cover | $15 - $30 | This is just the fabric/vinyl material. Requires DIY installation (gluing/stapling). |
| Shop Labor for Full Console Swap | $120 - $250 | Typically 1-2 hours of labor. |
Frequently Asked Questions (FAQ)
Can I just replace the broken armrest latch?
Sometimes. For some models, the latch is available as a separate part. However, it is often integrated into the upper lid assembly, making it easier to replace the entire lid. Given the low cost of used lids, this is often the most practical repair.
Will a console from a 2014 Fusion fit my 2011 Milan?
No. The 2013-2020 Fusion uses a completely different console design than the 2010-2012 Fusion and 2010-2011 Milan. The mounting points, dimensions, and electrical connectors will not match up.
My silver console trim is peeling. How can I fix it?

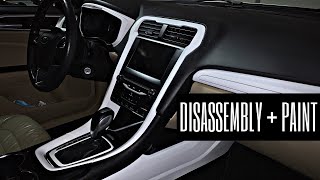

You have three main options: replace the trim piece with a new or used one, remove the peeling finish and paint the plastic underneath, or cover it with an automotive-grade vinyl wrap. Vinyl wrapping is a popular DIY solution that allows for customization with finishes like carbon fiber or brushed metal.
What's the difference between a Hybrid and non-Hybrid console?
The differences are usually in the storage compartments and button layouts. For example, the Hybrid console may have a smaller storage bin to accommodate battery-related components underneath, or it may have unique buttons related to the hybrid drivetrain system. Always match the console to your specific powertrain.
Helpful Videos
Technical Specifications
OEM Part Numbers: 9E5Z54045A76CC AE5Z54045A36BA AE5Z54045E24EA AE5Z5406024AA DS7Z-54519A70-EBA DS7Z-54519A70-EC DS7Z54045A76DA DS7Z54045B30AA DS7Z54045E24AB DS7Z54045E24BB DS7Z54045E24FA DS7Z54045E24MB DS7Z5406024AC DS7Z54519A70BB DS7Z54519A70BD
Tool requirements for removal typically include a plastic trim removal kit, T20 Torx driver, and 7mm/8mm socket wrenches.
