2024-2026 Chevrolet Equinox EV Overhead Console: A Guide to Sunroof and Option Variants
Don't buy the wrong part; this guide details the critical differences between Equinox EV overhead consoles and how to choose the correct one for your vehicle.
- The most critical factor is matching the part to your vehicle's options, specifically the presence of a panoramic sunroof.
- Verify part numbers before buying; several different consoles exist that are not interchangeable.
- Most failures are electronic, such as non-working buttons or lights, but physical damage to mounting clips is common during removal.
- As a new vehicle, there are no console-specific recalls, but be aware of vehicle-wide issues like the pedestrian sound recall.
Critical: Understanding Overhead Console Variations
The single most important factor when replacing the overhead console on a 2024-2026 Chevrolet Equinox EV is matching the new part to your vehicle's specific options. General Motors uses several different consoles that look similar but have different internal wiring and button configurations. Installing the wrong console will result in features not working.
Warning: Before ordering, you must verify if your Equinox EV has a panoramic sunroof and a universal garage door opener. These are the two most common variations that determine which part number you need.
The best way to ensure a match is to remove the existing console and find the part number printed on a sticker. If that is not possible, use the table below as a guide.
| Part Number | Vehicle Configuration | Supersedes Part(s) |
|---|---|---|
| 86507641 | For models WITH a panoramic sunroof. | 85159028, 87829058 |
| 86507640 | For models WITHOUT a panoramic sunroof. | 85159027, 87829057, 85725068 |
| 26468283 | For models WITH a panoramic sunroof but WITHOUT a garage door opener and WITHOUT an interior camera. | N/A |
Symptoms of a Failing Overhead Console
Because the Equinox EV is a new vehicle, widespread long-term failures have not yet been documented. However, failures in overhead consoles on other vehicles provide a good guide to potential symptoms. One owner has reported a non-functional rear dome light switch.
- Inoperative Buttons: The buttons for map lights, dome lights, sunroof controls, or the SOS/OnStar system do not respond when pressed.
- Flickering or Dead Lights: The interior map or dome lights flicker, are dim, or do not turn on at all. This can be caused by a bad circuit board or a loose connection.
- Garage Door Opener (HomeLink) Failure: The system cannot be programmed to a garage door opener, or it fails to transmit a signal.

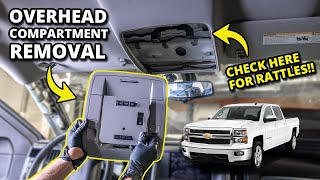

- Rattling Noises: A loose component or broken mounting clip inside the console can cause rattling or buzzing sounds, especially when driving on rough roads. 🎬 See how to fix common overhead console rattles and noises.
- Complete Failure: The entire console is dead and shows no signs of power. This often points to an internal electronic fault or a problem with the wiring harness connection.
Buying a Used 2024-2026 Equinox EV Overhead Console
A used OEM console is an excellent, cost-effective alternative to a brand-new part, especially since aftermarket versions are not available for this model. Since these vehicles are so new, a used console is likely to have very little wear. However, careful inspection is key.
What to Check Before You Buy:
- Verify the Part Number: This is the most critical step. Match the part number from the seller's listing to the part number on your original console. Do not rely on visual appearance alone.
- Inspect All Mounting Clips: The console is held in place by plastic clips. These can easily break during removal. Examine photos carefully and ask the seller to confirm that all clips and tabs on the back of the unit are intact and undamaged.
- Check for Cosmetic Damage: Look for deep scratches, cracks in the plastic, or damage to the lens covers for the lights. Ensure the sunglass holder door (if equipped) opens and closes properly.
- Button Condition: Make sure the graphics on the buttons are not worn off and that each button has a solid, tactile click when pressed. Mushy or stuck buttons could indicate a problem with the underlying switch.
- Ask About the Donor Vehicle: Inquire about the mileage and condition of the vehicle the part came from. A low-mileage donor is always preferable. Ask if the console was tested and confirmed to be working before it was removed.
Known Issues, TSBs, and Recalls (Vehicle-Wide)
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) for the overhead console itself. However, prospective buyers should be aware of other issues affecting the 2024-2026 Equinox EV platform.
- Recall N252527170 (NHTSA 25V639): A recall was issued for approximately 23,700 2024 Equinox EV models because the external pedestrian warning sound may not be loud enough at low speeds, failing to meet federal safety standards. The fix involves a software update to the Body Control Module (BCM).
- Tire Recall: Some 2025-2026 models equipped with 21-inch Continental all-season tires were recalled for potential tread detachment.
- Owner Complaints: Early owners on forums have reported various issues, including software glitches with the infotainment system, water leaks into the passenger footwell, and concerns about A/C performance.
- Wiper Misalignment TSB: A TSB was issued to address customer complaints of wiper blades contacting each other or leaving an unwiped area near the A-pillar.
Replacement Overview
Replacing the overhead console is generally a straightforward task suitable for a DIYer with the right tools.
- Difficulty: 1.5 out of 5
- Tools Needed: Plastic trim removal tools. A small flathead screwdriver may be useful but increases the risk of scratching the headliner or console.
- General Steps: Based on similar GM vehicles, the console is typically held in by pressure clips. Start by gently prying at the edge closest to the windshield with a plastic trim tool to release the front clips. Work your way around the console, carefully applying firm, even pressure to release the remaining clips. Once it is loose, disconnect the electrical connector(s) on the back before fully removing the unit. Installation is the reverse of removal—connect the wiring and firmly press the console back into the headliner until the clips snap into place.
Pro Tip: When prying, wrap the tip of your tool in a microfiber cloth to avoid leaving marks on the headliner or plastic console.
Cost Comparison
Prices can vary based on supplier and condition. The following are estimates to help you understand the value of a used OEM part.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $115 - $300 |
| Used OEM | $75 - $180 |
| New Aftermarket | Not Available |
| Shop Labor | $70 - $150 |
Frequently Asked Questions (FAQ)
Do I need to program a replacement overhead console?
For most functions like lights and basic sunroof control, programming is typically not required. However, if the console contains the HomeLink (garage opener) transmitter, you will need to program it to your specific garage door by following the instructions in your vehicle's owner's manual.
Can I upgrade to a console with a garage door opener if my car didn't have one?
This is generally not a simple plug-and-play swap. The vehicle's wiring harness may be different and lack the necessary connections for the upgraded features. It is safest and most cost-effective to replace your console with one that has the exact same features as the original.
My map light isn't working. Do I need to replace the whole console?
Not necessarily. First, check the bulb. The Equinox EV uses LED lighting, so the 'bulb' may be a small, integrated part of the light assembly. If the LED itself has failed, it may be possible to replace just that component. If the button is the problem, or if there's an issue with the circuit board, replacing the entire console assembly is often the easiest and most reliable repair.
Why are there so many different part numbers for the same console?
Automakers frequently update part numbers over a vehicle's production run. A new number can signify a minor manufacturing change, a different supplier, or it can supersede an older number. The key is to ensure the part you are buying is listed as compatible with your vehicle's options (sunroof, etc.), even if the number is slightly different from your original.
Helpful Videos
Technical Specifications
OEM Part Numbers: 86507641 85159028 87829058 86507640 85159027 87829057 85725068 26468283 85692784
Houses controls for interior lighting, panoramic sunroof, and optional HomeLink universal transmitter. Connects via a single multi-pin electrical harness.
