2020-2025 Cadillac CT4 Overhead Console: A Guide to Sunroof and Homelink Variants
This guide covers the different versions of the Cadillac CT4 overhead console, common issues, and how to choose the correct used part for your vehicle's options.
- Compatibility is critical: This console is for CT4s with BOTH a sunroof and Homelink garage opener; verify your options before buying.
- No widespread failures are known for this part on the CT4, but individual units can fail like any electronic component.
- Replacement is a very easy DIY job, requiring only a plastic trim tool and about 15 minutes.
- Buying a used OEM part is a safe and cost-effective option, provided you match the part number and features exactly.
Symptoms of a Failing Overhead Console
While the overhead console on the 2020-2025 Cadillac CT4 has proven to be a reliable component with no widespread, documented failure patterns as of early 2026, failures can still occur as with any electronic part. Symptoms are typically straightforward and related to the functions the console controls.
- Unresponsive Buttons: One or more buttons for the map lights, dome light, sunroof, or Homelink system fail to respond when pressed. The issue could be a faulty switch within the console unit itself.
- Sunroof or Sunshade Malfunctions: The sunroof or power sunshade may not open, close, or may operate intermittently. If other buttons on the console work, it points towards a specific failure of the sunroof switch.
- Homelink System Inoperable: The vehicle cannot be programmed to a garage door opener, or previously programmed doors no longer work. While this can also be an issue with the garage door opener itself, a failure in the console's Homelink transmitter is also possible. 🎬 See this quick guide to setting up your HomeLink system.
- Rattling or Buzzing Noises: Loose internal components or, more commonly, broken plastic mounting clips can cause the console to rattle against the headliner, especially on rough roads.
- Parasitic Battery Drain: Though not a documented issue on the CT4, on older Cadillac models a faulty overhead console switch could fail to let the vehicle's electronic modules go to 'sleep', causing the battery to drain overnight. This is a potential but rare symptom to be aware of if you experience unexplained battery death.
Known Issues, TSBs, and Recalls
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the National Highway Traffic Safety Administration (NHTSA) for the overhead console panel on the 2020-2025 Cadillac CT4.
However, it is important to be aware of NHTSA recall 21V611000, which concerns improperly installed roof rail side-curtain airbags on some 2020-2022 CT4 models. While this recall does not involve the console itself, the airbags are located in the same area. Extreme care must be taken when working near the headliner and roof structure during a console replacement.
Compatibility Warning: The most critical factor when replacing this part is matching it to your vehicle's exact options. This guide is for the overhead console designed for CT4 models equipped with both a sunroof and the Universal Home Remote (Homelink) garage door opener. Using a console from a vehicle with different options will result in non-functioning features.
Buying a Used Overhead Console
Purchasing a used OEM overhead console is a cost-effective solution. Because this part is mostly electronic and option-specific, a used original part is often a better choice than a non-existent or low-quality aftermarket alternative. Pay close attention to the following when buying used:
- Verify Options: This is the most important step. Before you buy, confirm your vehicle has a sunroof and Homelink. Then, ensure the seller's part came from a vehicle with the same options. Look for clear pictures showing the sunroof switch and the three Homelink buttons.
- Match Part Numbers: If possible, remove your old console to find the part number stamped on the back. Match this number exactly with the used part you intend to buy. Part numbers like 84895421, 84667738, and others are specific to certain option combinations and colors.
- Inspect for Physical Damage: Check all photos for cracks in the plastic housing, especially around the edges where pry tools might have been used during removal. Ensure the mounting clips on the back are intact and not broken.
- Check the Buttons: The buttons should sit level and not be loose or stuck. They should have a positive 'click' feel when pressed.
- Examine the Connector: Look at the electrical connector port on the back of the console. Ensure it is clean, with no bent, broken, or corroded pins.
Cost of Replacement
The cost for a 2020-2025 Cadillac CT4 overhead console can vary significantly between new and used options. Installation is simple, keeping labor costs low.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $165 - $250 |
| New Aftermarket | Not typically available |
| Used OEM | $75 - $150 |
| Shop Labor | $50 - $100 |
Replacement Procedure & Difficulty
Replacing the overhead console is a straightforward task that most DIYers can complete in under 15 minutes.
- Difficulty: 1/5 (Very Easy)
- Estimated Time: 0.25 hours
- Tools Needed: Plastic trim removal tool
Pro Tip: Never use a metal screwdriver to pry on the console; it will damage the plastic console and the soft headliner. Always use a plastic trim removal tool.

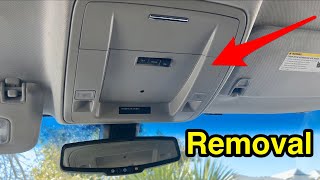

🎬 Watch this video to see how to safely pry the console.Step-by-Step Guide:
- Using a plastic trim removal tool, gently pry downwards on the edge of the console closest to the windshield. Forum users report it is held in by four pressure clips.
- Work your way around the console, releasing the clips until the unit drops down from the headliner. It will still be connected by wires.
- Carefully reach behind the console and locate the electrical connector. Press the release tab on the connector and pull it out.
- Connect the new console to the electrical harness. You should hear a click.
- Align the new console with the opening in the headliner and press firmly upwards until all the clips snap securely into place.
- Test all functions (lights, sunroof, Homelink) to confirm the repair.
Frequently Asked Questions (FAQ)
Can I install a console with Homelink if my car didn't come with it?
This is not recommended. The vehicle's wiring harness may be different and may not include the necessary wiring to power the Homelink module, even if the console fits physically.
My Homelink button is flashing but the garage door won't open. Is the console broken?
Not necessarily. This often means the console needs to be synced with your garage door opener's main unit, which is a common process for 'rolling code' openers. The process involves pressing the 'Learn' button on your garage door motor and then pressing the button in the car.
🎬 Watch this tutorial for syncing rolling code garage door openers.Why do the lights work but the sunroof doesn't?
This points to a failure within the console itself, specifically with the sunroof switch or its internal connections. Since the components are integrated, the entire overhead console assembly typically needs to be replaced to fix the issue.
Is it difficult to replace the overhead console myself?
No, this is considered a very easy DIY repair. It is held in by clips and requires no special tools other than a plastic trim remover. The entire process usually takes less than 15 minutes.
Helpful Videos
Technical Specifications
OEM Part Numbers: 42893169 84667738 84895421 84974498 85538206 86531398 87821261
Houses controls for sunroof, Homelink (Universal Home Remote), and interior lighting. Connects via a single multi-pin electrical connector.
