VW Combination Switch Failure (2002-2011): A Guide for Passat, Jetta, Golf, Beetle & CC

Understanding Volkswagen Combination Switch Platforms (2002-2011)

Before diagnosing or buying a replacement combination switch, it's critical to understand that not all 2002-2011 Volkswagens use the same part, even if they appear similar. The initial vehicle list covers multiple vehicle platforms with different core part designs. Grouping them incorrectly is a common mistake that leads to buying the wrong part.

• Group 1: MK4 Platform (Part # 1J0953513) - This switch is primarily for the Mk4 platform. Vehicles include the 1999.5-2006 Golf, 1999.5-2005 Jetta, and 1998-2010 Beetle. These parts are generally interchangeable within this group, provided the features (like cruise control) match.
• Group 2: B6/PQ35/PQ46 Platforms (Part # 3C... series) - This family of switches is for newer platforms. Vehicles include the 2006-2010 Passat, 2009-2010 CC, 2005.5-2011 Jetta, and 2006-2011 Golf/GTI. These switches have many variations based on features like rear wipers and adaptive cruise control.
• Group 3: B5.5 Platform (Part # 8L.../4B... series) - The 2002-2005 Passat uses a different switch, often with part numbers beginning in 8L or 4B, shared with some Audi models.

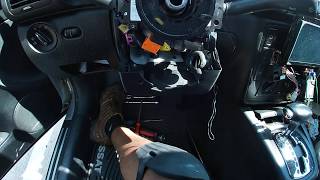

🎬 See how to change a B5.5 Passat switch

This guide will focus on the common symptoms and replacement process, but you must verify your specific part number before purchase.

Symptoms of a Failing Combination Switch

A bad combination switch can cause a wide range of frustrating electrical problems. Because multiple functions run through one component, a single internal fault can affect several systems at once. Here are the most common signs:

• Turn Signal Problems: This is the most common failure. You might experience signals that don't work at all, only work intermittently, or fail to cancel after a turn. In some cases, only one side (left or right) will fail.
• Windshield Wiper Malfunctions: The wipers may not turn on, get stuck on a single speed, or refuse to turn off. Some owners report the wipers making a single, random swipe without any input.
• Headlight and High Beam Issues: You may have trouble switching to high beams, or they won't stay engaged. The "flash-to-pass" feature might also stop working.
• Cruise Control Failure: If your cruise control is operated from the stalk, it may become unresponsive, fail to set a speed, or disengage unexpectedly.
• Physical Feel: The stalk might feel loose, stiff, or make unusual clicking or grinding noises 🎬 Watch this video on repairing a faulty stalk switch when operated, indicating an internal mechanical failure.

Known Issues, Recalls, and TSBs

While there are no widespread recalls specifically for the combination switch on most of these models, Volkswagen has issued recalls for related components that can cause similar symptoms.

• Ignition Switch Recalls: Certain Jetta models (newer than the range covered here) were recalled for faulty ignition switches that could cause a total loss of engine power and electronics. While a different part, it highlights the potential for switch-related electrical failures in VWs.
• Shift Lever Micro Switch Recall (NHTSA 19V615): Affecting some 2015-2019 models, a faulty micro switch in the gear selector could cause confusion for the car's electronics, sometimes leading to dashboard warnings. This demonstrates how one small switch failure can cause wider system issues.

Buying a Used Combination Switch: What to Check

Purchasing a used OEM combination switch is a smart way to save money, as recycled original parts often have superior fit and material quality compared to cheap aftermarket alternatives. However, compatibility is everything. Follow these steps to get the right part:

1. Verify Your Part Number: This is the most critical step. You must remove the steering column trim to see the part number printed on your existing switch. Part numbers like 1J0953513 are for the Mk4 platform, while 3C5953513B, 3C9953513, etc., are for the B6/PQ35 platform. Do not buy a switch without matching this number.
2. Match Vehicle Features: Even with a matching base part number, there are variations. Check if your vehicle has:
   • Rear Wiper: Passat Wagons, Golfs, and GTIs have a rear wiper, which requires a switch with different controls than a sedan. The sedan switch will not work.
   • Cruise Control: Ensure the replacement switch has cruise control buttons if your vehicle is equipped with it.
   • Adaptive Cruise Control (ACC): This was a rare option, but it uses a completely different and incompatible switch. The switches covered here are for standard cruise control only.
3. Check Steering Wheel Option Codes: On your vehicle's build sticker (often in the trunk by the spare tire or in the owner's manual), you'll find a list of three-digit "PR codes." Codes like 1MA, 1MH, or 2ZH refer to the type of steering wheel installed. While less critical than the part number, matching these can help confirm you have the right component group.
4. Physical Inspection: Check the used part for any signs of damage. Ensure the stalks move smoothly without excessive play. Look at the electrical connector pins to make sure none are bent or corroded.

Replacement Overview & Difficulty

Replacing the combination switch is a moderately difficult DIY job for someone with mechanical experience. The main challenge is the need to remove the airbag and steering wheel.

• Difficulty Rating: 3.5 / 5
• Estimated Time: 1.5 - 2 hours
• DIY Feasible: Yes, for experienced DIYers.

Basic Steps:

1. Disconnect the battery! This is a critical safety step. Disconnect the negative terminal and wait at least 15-30 minutes to allow the airbag system's capacitor to discharge.
2. Remove the steering wheel airbag. This is typically done by releasing clips from behind the steering wheel. Handle the airbag with care.
3. Remove the main steering wheel bolt. This often requires a special tool, like an M12 triple-square bit. Mark the steering wheel's position relative to the column before removal.
4. Remove the steering column trim/shroud.
5. Unscrew and unplug the old combination switch assembly.
6. Install the new switch, and reassemble everything in reverse order. Torque the steering wheel bolt to the manufacturer's specification.

Cost Comparison

Frequently Asked Questions
