2018-2025 Wrangler & Gladiator "Service Axle Locker" Warning: Your Real Fix

Understanding the "Service Axle Locker System" Warning

If you own a 2018-2024 Jeep Wrangler Rubicon or a 2020-2025 Jeep Gladiator Rubicon or Mojave, you may eventually see the dreaded "Service Axle Locker System" warning on your dashboard. This is often accompanied by a blinking light on the axle lock switch when you try to engage it, and the locker will fail to activate. While it's easy to assume the dashboard switch has failed, the root cause is almost always a different, more vulnerable component.

Primary Cause: Failed Axle Locker Position Sensor

The most common culprit for locker system errors is the Axle Locker Position Sensor located on the outside of the differential housing. This sensor's job is to confirm to the vehicle's computer that the differential has successfully locked or unlocked. Over time, gear oil can seep past the seals and contaminate the sensor's internal electronics, causing it to send faulty signals or fail completely. This problem is widespread on these models and can occur even on low-mileage vehicles.

The Easiest and Most Reliable Fix: A Sensor Bypass Harness

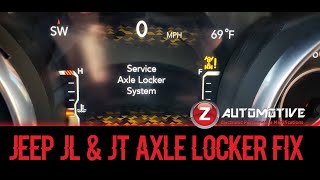

Instead of replacing the faulty sensor—a costly and often back-ordered part—the most popular solution is to install an aftermarket locker sensor bypass harness. Companies like Z Automotive and Lynx Performance 🎬 Watch: How to install the Z Automotive bypass harness. offer simple, plug-and-play modules that connect between the factory wiring and the locker connection on the axle. This harness effectively tricks the computer by sending the correct "locked" or "unlocked" signal, bypassing the faulty sensor entirely. This allows the mechanical locker, which is usually still perfectly functional, to operate as commanded by the dashboard switch.

Installation is extremely simple and can be done in minutes with no special tools. It involves unplugging the factory connector at the axle, plugging the bypass harness in, and connecting the original harness to the other end of the bypass.

Symptoms of Failure

Because three different components are involved, it's important to match the symptom to the correct part.

Axle Locker System (Sensor or Wiring)

• "Service Axle Locker System" message appears on the instrument cluster.
• Indicator light on the dashboard switch blinks continuously instead of going solid when a locker is engaged.
• Axle lockers fail to engage or disengage.
• These symptoms are often intermittent at first and become more frequent over time.

Axle Lock Switch Bank (Dashboard Buttons)

• A specific button is physically broken, stuck, or feels unresponsive.
• The indicator light for a switch does not illuminate at all when pressed (and the system has no other faults).
• No response from the system, but you have confirmed with a bypass harness that the sensor is not the issue.

Combination Switch (Turn Signal / Wiper Stalk)

• Turn signals do not work, work intermittently, or do not cancel after a turn.
• Windshield wipers or washers are inoperative or work on only some settings.
• Cannot switch between high and low beam headlights.
• Important: On the JL and JT, this switch is part of the Steering Column Control Module (SCCM). Unlike older Wranglers, it is not a simple part to replace and requires programming by a dealer or qualified shop.

Buying a Used Switch Assembly

For this set of vehicles, buying a used part can be a smart way to save money, especially for the dashboard switch. However, for locker issues, an aftermarket bypass harness is often a better investment than a used sensor.

What to Check Before Buying Used:

• Axle Lock Switch Bank (Dashboard):
  • Verify Part Number: Match the part number exactly. Key numbers include 56046716AD and 68359089AA.
  • Inspect Buttons: Check for physical damage, cracks, or excessive wear on the graphics. Ensure the buttons have a solid, tactile click and are not loose.
  • Check Connectors: Look at the back of the unit and ensure the connector pins are straight, clean, and free of any corrosion.
• Combination Switch (Steering Column Module):
  • High Risk Purchase: Buying this used is risky. Because it's a programmed electronic module, a used one may not be compatible or may require expensive dealer programming to work with your vehicle's specific options.
  • Physical Inspection: If you do proceed, check that the stalks are not loose or cracked. The rotational switches for wipers and lights should click firmly into each position.
  • Prefer New or Remanufactured: For a critical, programmed part like the SCCM, new OEM is the safest choice to avoid compatibility headaches.

Cost Comparison for Locker & Switch Repairs

Repair costs can vary dramatically depending on which part has actually failed.

Installation Overview

Axle Locker Sensor Bypass Harness

• Difficulty: 1 out of 5
• Estimated Time: 0.25 hours
• DIY Feasible: Yes, highly recommended.
• Procedure: Locate the wiring connector on the top of the differential. Release the locking tab, unplug the connector, and install the bypass harness in between the two ends. Secure the new wiring with a zip tie. 🎬 Watch this easy DIY guide to bypassing the locker system. No programming is needed.

Combination Switch / Steering Column Control Module (SCCM)

• Difficulty: 4 out of 5 (due to programming requirement)
• Estimated Time: 1 hour + programming time
• DIY Feasible: No (unless you have access to wiTech software)
• Procedure: The process involves disconnecting the battery, removing the steering column shrouds, unplugging the old module, and installing the new one. The critical final step is the electronic programming.
