2016-2023 Lincoln MKX & Nautilus Rear Sensor Bracket Failures and Fixes

Understanding the Part: Sensor vs. Bracket

When your 2016-2018 Lincoln MKX or 2019-2023 Lincoln Nautilus displays a "Blind Spot System Fault" or "Cross Traffic System Fault," the problem may not be the expensive radar sensor. Often, the issue is the plastic bracket that holds the sensor. These brackets are located in the rear corners of the vehicle, mounted behind the bumper cover. Their job is to hold the radar unit securely at a very specific angle. Any damage or misalignment can prevent the system from working, as the sensor can no longer accurately detect other vehicles.

Symptoms of a Failed Sensor Bracket

The symptoms point to a failure in the driver-assist system, but the root cause is often mechanical damage to the bracket. Look for:

• "Blind Spot System Fault" Message: This is the most common indicator, appearing in the instrument cluster.
• "Cross Traffic System Fault" Message: This alert often appears alongside the blind spot system fault.
• "Pre-Collision Assist Not Available" Message: While this can have other causes related to front sensors, a fault in the rear radar network can sometimes trigger this warning.
• BLIS Indicator Lights Malfunction: The amber warning lights in your side mirrors may not light up when a car is in your blind spot, or they may stay on constantly.
• System Disabled After Minor Impact: If the warnings appeared after a minor bump to the rear bumper, a broken bracket is a very likely cause.

Known Issues, TSBs, and Recalls

While there are no specific recalls for the sensor brackets themselves, both the Lincoln MKX and Nautilus have had recalls and Technical Service Bulletins (TSBs) related to electrical systems and wiring that are housed in the same areas.

• 2016-2018 Lincoln MKX: A recall was issued for some models where the seat wire harness could be damaged, affecting airbag deployment. Another recall concerned front brake hoses that could rupture. A common owner complaint involves electrical glitches, sometimes related to water getting into connectors in the rear of the vehicle, which can cause blind spot system faults.
• 2019-2023 Lincoln Nautilus: The 2019 model year had several recalls, including for a blank instrument panel display and an issue with the driver's airbag cover. Owners have reported various electronic issues, including failures of driver-assist features.

A TSB for the 2016-2018 MKX and 2019-2020 Nautilus mentions a clicking noise from the mirrors when using memory functions, which is related to the BLIS system's mirror assemblies.

Buying a Used Collision Avoidance Sensor Bracket

Since this is a non-electronic, structural part, a used OEM bracket is an excellent way to save money. It will provide the same fit and performance as a new part from the dealer.

1. Verify the Part Number: This is the most important step. There are different brackets for the left (driver) and right (passenger) sides. Check your original part for a number before ordering. Known OEM part numbers include FA1B-17E850-AC, KA1B-17B949-AC, and KA1D-17D948-AB. Always confirm which side you need.
2. Inspect for Damage: Even though it's a used part, it must be in perfect structural condition. Look for cracks, especially around the screw holes where it mounts to the vehicle and where the sensor clips in.
3. Check for Warping: The bracket must be perfectly flat and true. A warped bracket from a previous accident will not hold the sensor at the correct angle, leading to the same fault codes you're trying to fix.
4. Confirm All Tabs are Intact: Ensure all small plastic tabs, clips, and mounting points are present and not broken. These are essential for a secure, rattle-free installation that keeps the sensor properly aimed.

Replacement Overview

Replacing the sensor bracket requires removing the rear bumper cover. While not overly complex, it is a multi-step process.

• Difficulty: 3 out of 5
• Estimated Time: 1.5 - 2.5 hours
• Tools Needed: Socket set (7mm, 10mm), Torx bits, trim removal tools, Phillips screwdriver.

High-Level Steps:

1. Remove fasteners along the top edge of the bumper cover inside the liftgate opening.
2. Remove screws securing the bumper cover to the fender liners in each rear wheel well.
3. Remove any clips or fasteners on the underside of the bumper.
4. Carefully pull the sides of the bumper cover outward to release the clips holding it to the body.
5. With a helper, pull the bumper cover straight back. Disconnect the main wiring harness for the parking sensors and other electronics before fully removing it.
6. Locate the faulty bracket and sensor assembly in the corner of the vehicle. Unplug the sensor, unbolt the old bracket, and install the new one.

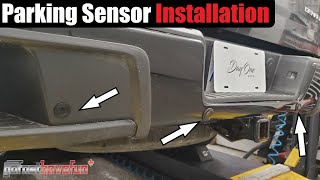

🎬 Watch: How to replace rear bumper sensors and brackets
7. Transfer the sensor to the new bracket, ensuring it clips in securely.
8. Installation is the reverse of removal. Have a helper to position the bumper cover without scratching it.

Calibration Requirements

Simply replacing a broken bracket and reinstalling the original, undamaged sensor typically does not require a system recalibration. The system should function correctly once the sensor is held in its proper position again. However, if you replace the electronic sensor module itself, it will require programming and calibration by a dealer or a qualified shop with the correct diagnostic tools. This procedure links the new sensor to the vehicle's VIN and ensures it is aimed correctly.
