2004-2011 SRX & 2011 Saab 9-4X Coil Spring Guide: Decoding Generations and RPO Codes

A Critical Warning: Two Generations of Cadillac SRX

Before diagnosing or purchasing a coil spring for a Cadillac SRX, you must identify its generation. The parts are not interchangeable between generations.

• First Generation: 2004-2009 Cadillac SRX. These models are built on a rear-wheel-drive (RWD) based platform.
• Second Generation: 2010-2016 Cadillac SRX & 2011 Saab 9-4X. These models share a front-wheel-drive (FWD) based platform. The Saab 9-4X is mechanically identical to the 2010-2011 SRX for suspension purposes.

This guide covers both, but pay close attention to the section that applies to your specific vehicle year.

Symptoms of a Failing Coil Spring

A broken or worn-out coil spring will make itself known through poor ride quality and distinct noises. Here are the most common signs:

• Vehicle Sagging or Leaning: The most obvious symptom is a visible drop in ride height at one corner or along one side of the vehicle when parked on level ground.
• Clunking or Rattling Noises: A sharp 'clunk' when going over bumps or a rattling sound can indicate a broken piece of the spring is loose in its seat.
🎬 Watch: How to diagnose a rear suspension clunking noise
• Bouncy and Unstable Ride: With a failed spring, the shock absorber is overwhelmed, causing the vehicle to bounce excessively after hitting a bump and feel 'floaty' or unstable at speed.
• Uneven Tire Wear: Incorrect ride height throws off the wheel alignment, causing tires to wear unevenly on the inside or outside edges.
• Visible Damage: A visual inspection may reveal the spring is cracked (often near the top or bottom coil), heavily corroded, or visibly deformed.

Known Issues & Recalls for SRX and 9-4X Suspension

While there are no specific recalls for broken coil springs on these vehicles, a major suspension recall for the second-generation SRX and Saab 9-4X can cause symptoms that are easily mistaken for a bad spring.

Recall: Rear Suspension Toe Link (2010-2015 SRX & 2011-2012 9-4X)

General Motors issued recalls (including NHTSA campaign numbers 14V571 and 21V-473) for a rear toe link that could loosen or separate. A loose toe link can cause symptoms like:

• A wandering or swaying feeling at highway speeds.
• Loud metallic noises from the rear suspension, especially over bumps.
• Sudden changes in vehicle stability.

Because these symptoms overlap with a failed spring, it's crucial to have a mechanic check for this recall's status and inspect the toe links if you experience these issues on a second-generation model. The fix involves inspecting the components and replacing them with an updated design, free of charge at a dealership.

Compatibility Guide: Finding the Right Spring

Choosing the correct spring is critical. Installing the wrong one will result in incorrect ride height, poor handling, and compromised safety. The key is the three-character RPO (Regular Production Option) code found on your vehicle's identification sticker.

First Generation (2004-2009 Cadillac SRX)

For the first-gen SRX, the Service Parts Identification sticker is typically located in the cargo area, often in the spare tire well or on a compartment cover. You will find one of the following suspension codes:

• FE1: Standard 'Soft Ride' Suspension. Designed for maximum comfort.
• FE3: 'Sport' Suspension. Provides a firmer ride, better handling, and may have a slightly different ride height.

The springs for FE1 and FE3 suspensions are not interchangeable. You must match the RPO code.

Second Generation (2010-2011 Cadillac SRX & 2011 Saab 9-4X)

For these models, the RPO code sticker is usually found inside the glove box. Compatibility depends on two factors: the suspension code and the drivetrain.

• Suspension RPO Codes:
  • FE2: 'Ride and Handling' Suspension. This is the standard, non-sport setup.
  • FE3: 'Sport' Suspension. This option features stiffer springs and shocks for improved cornering.
• Drivetrain:
  • FWD (Front-Wheel Drive): Lighter front end, requires specific springs.
  • AWD (All-Wheel Drive): Heavier and with a different weight distribution, requiring different springs than FWD models.

Buying a Used Coil Spring: What to Check

A used OEM spring can be an excellent value, offering factory-correct spring rates that cheap aftermarket parts often miss. Here’s what to inspect before you buy:

1. Verify Compatibility First: This is the most important step. Confirm the donor vehicle's year, generation, drivetrain (for 2010+), and suspension RPO code (FE1/FE2/FE3). Do not proceed if you cannot verify this information.
2. Check for Cracks: Carefully inspect the entire spring, paying close attention to the very top and bottom coils where they sit in the suspension. This is where stress cracks most often form. Any crack, no matter how small, means the spring is junk.
3. Inspect for Severe Corrosion: Surface rust is normal, but deep, flaky, or pitted rust weakens the metal and can lead to failure. Avoid springs with significant corrosion.
4. Look for the Part Tag: Many original springs have a paper or plastic tag with a specific 2 or 3-character code (e.g., 8MA, 8GD). Matching this code ensures you get the exact same spring rate as the original, which is ideal for a perfect repair.
5. Check for Deformation: The coils should be evenly spaced and the spring should stand straight. Any sign that it is bent, compressed, or distorted means it has been compromised.

Replacement Overview & Difficulty

Replacing a rear coil spring on these vehicles is moderately difficult. While it can be done by an experienced DIYer, the stored energy in a coil spring makes it dangerous if handled improperly.

• Difficulty: 3 out of 5

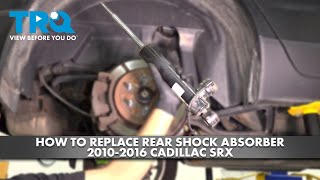

• Special Tools: For the separate rear springs on these models, a spring compressor is often not needed. The procedure typically involves supporting the lower control arm with a floor jack, then unbolting the lower shock mount and/or control arm bolts to carefully 🎬 Watch: How to replace the rear shock and access the spring lower the arm and relieve spring tension. Front strut replacement, however, does require a dangerous, high-tension spring compressor.
• Always Replace in Pairs: Springs should always be replaced in pairs (both fronts or both rears) to ensure an even ride height and predictable handling. A new spring on one side and an old, sagging spring on the other can make the vehicle unstable.
• Wheel Alignment: A four-wheel alignment is highly recommended after replacing any major suspension component like a coil spring to prevent premature tire wear and ensure the vehicle tracks straight.
