1984 Corvette Clutch Disc: Guide to the 4+3 Manual and 26-Spline Disc
Your definitive reference for diagnosing, buying, and replacing the unique clutch disc in the first C4 Corvette with the Doug Nash 4+3 manual transmission.
- The clutch disc for a 1984 Corvette with a manual must have a 10.4-inch diameter and a 26-spline hub to fit the 4+3 transmission.
- When replacing the clutch disc, it is essential to also replace the pressure plate, pilot bearing, and throwout bearing, and to resurface the flywheel.
- Symptoms like a spongy pedal or difficulty disengaging the clutch are often caused by the hydraulic system (master/slave cylinders), not the disc itself.
- When inspecting a used disc, ensure there is at least 1mm of friction material above the rivets and check for signs of heat damage (glazing) or oil contamination.
Symptoms of a Failing Clutch Disc
A worn clutch disc rarely fails without warning. Recognizing the signs early can prevent you from being stranded and can help avoid damage to other components like the flywheel or transmission. Here are the most common symptoms:
- Clutch Slipping: This is the most classic sign of a worn-out disc. You'll notice the engine RPMs increase as you accelerate, but the car's speed doesn't increase accordingly. This is most obvious in higher gears at low RPMs or when trying to accelerate up a hill.
- Burning Smell: A slipping clutch generates intense heat from friction, which burns the disc's organic friction material. This creates a distinct, acrid smell often compared to burning carpet or sulfur. You'll likely notice it after a period of slipping.
- Difficulty Shifting Gears: If the clutch disc is worn or warped, it may not fully disengage from the flywheel even when the pedal is pressed to the floor. This makes it difficult to shift, especially into first or reverse from a stop, and may be accompanied by grinding noises.
- Clutch Chatter or Shudder: When you release the clutch pedal to pull away from a stop, you may feel a violent shaking or shuddering. This can be caused by a warped disc, contamination from oil or grease, or hot spots on the flywheel surface.
- Change in Pedal Feel: While often related to the hydraulic system, a change in the clutch pedal's engagement point can indicate disc wear. If the clutch only starts to grab when the pedal is very high up from the floor, the friction material is likely thin.
Known Issues for the 1984 Chevrolet Corvette
The 1984 Corvette is unique for its use of the Doug Nash "4+3" manual transmission, which pairs a 4-speed manual gearbox with a 3-speed automatic overdrive unit. This system has its own specific quirks that relate to the clutch.
- Hydraulic System Problems: The C4 Corvette uses a hydraulic system (master and slave cylinders) to actuate the clutch. These components are a frequent point of failure. Symptoms like a spongy pedal, a pedal that sticks to the floor, or an inability to disengage the clutch are often caused by a failing master or slave cylinder, not the clutch disc itself. Owners report that replacement hydraulic parts can be of inconsistent quality.
- Clutch Sticking to Flywheel: After sitting for extended periods, some owners report the clutch disc rusting or 'freezing' to the flywheel. This causes the car to lurch forward when started in gear, even with the clutch pedal depressed. This is often due to moisture in the bellhousing.
- No Recalls for the Clutch Assembly: There have been no NHTSA safety recalls issued specifically for the clutch disc, pressure plate, or flywheel on the 1984 Chevrolet Corvette. Recalls were issued for other items like seat belts, brake caliper bolts, and a cruise control servo.
Compatibility Warning: The 1984 Corvette with the 4+3 manual transmission requires a very specific clutch disc. It must have a diameter of approximately 10.4 inches (often listed as 10-3/8" or 10.5") and a 26-spline hub to match the transmission's input shaft. Using a disc with a different spline count, such as the 10-spline version common on older GM vehicles, will not work. Always verify these two specifications before purchasing.
Buying a Used 1984 Corvette Clutch Disc
Given that new OEM clutch discs are discontinued, a high-quality used OEM disc or a new aftermarket kit are your primary options. A good used OEM disc can offer excellent performance, often superior to a low-cost aftermarket part. Here’s what to check.
Physical Inspection Checklist

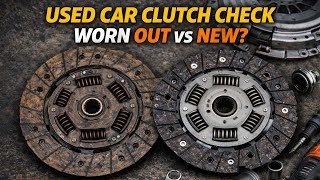

- Measure Friction Material: The most important check is the thickness of the friction material. Using calipers, measure the distance from the surface of the material to the top of the rivets that hold it to the disc. A new disc has several millimeters of material. A disc is considered worn out when it has 0.5mm or less. For a used part, look for at least 1mm of material above the rivets 🎬 Watch this visual comparison of a worn clutch disc versus a new one to ensure a reasonable service life.
- Check for Glazing and Hot Spots: Look for smooth, shiny, or blackened areas on the friction surface. This is called glazing and is a sign of overheating from clutch slippage. Glazed areas will not grip properly and can cause chatter.
- Inspect for Oil Contamination: Dark, soaked-in stains on the friction material indicate contamination from an engine or transmission oil leak. An oil-soaked disc will slip and chatter and cannot be salvaged; it must be replaced.
- Examine Damper Springs: Check the small coil springs in the center hub of the disc. They should be tight in their housings with no signs of cracking or breaking. If they are loose or broken, the disc will cause noise and harsh clutch engagement.
- Check for Warpage: Lay the disc on a known flat surface. Check for any wobble or runout. A warped disc will not disengage cleanly, leading to grinding gears and chatter. ZF Aftermarket recommends lateral run-out not exceed 0.5mm.
Replacement Overview
Replacing the clutch disc is a major job that requires removing the entire transmission.
- Difficulty: 4 out of 5. This is a complex and physically demanding job best suited for experienced DIY mechanics or a professional shop.
- Tools Required: A vehicle lift or multiple heavy-duty jack stands, transmission jack, extensive set of sockets and wrenches, torque wrench, and a clutch alignment tool are necessary.
- Labor Time: A professional shop will typically quote between 6 to 9 hours for this job.
Pro Tip: While the transmission is out, it is highly recommended to replace the pressure plate, pilot bearing, and throwout (release) bearing at the same time. These components wear along with the disc and are included in most aftermarket "clutch kits." It is also the perfect time to inspect the flywheel for heat cracks and scoring and have it resurfaced or replaced as needed. Finally, carefully inspect the clutch fork and the hydraulic master and slave cylinders for leaks.
Cost Comparison (2024 Estimates)
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (GM) | Discontinued | No longer available from the manufacturer. May be found as New Old Stock (NOS) at a high premium. |
| New Aftermarket Kit | $135 - $500+ | Price varies widely by brand and performance level. Includes disc, pressure plate, and bearings. |
| Used OEM Disc | $40 - $100 | Dependent on condition and remaining material. A cost-effective option if inspected carefully. |
| Shop Labor | $700 - $1,400 | Labor costs vary by region and shop rate. Assumes 6-9 hours of labor. |
Technical Specifications
| Specification | Value |
|---|---|
| Vehicle Fitment | 1984 Chevrolet Corvette w/ 4+3 Manual Transmission |
| Diameter | ~10.4 inches (also listed as 10-3/8" or 10.5") |
| Spline Count | 26 |
| Input Shaft Diameter | 1-1/8 inches |
| Known OEM Part Numbers | 10120998, 10232736, 10232737, 14085720 (Flywheel), 366860 |
Note: Part number 14085720 is for the flywheel that uses a 10.4" disc, not the disc itself. Other numbers may refer to kits or superseded parts. Always verify fitment by spline count and diameter.
Frequently Asked Questions (FAQ)
Do I have to replace the whole clutch kit or just the disc?
Because replacing the clutch is so labor-intensive, it is standard practice to replace the clutch disc, pressure plate, and pilot/throwout bearings all at once. These parts wear together, and failing to replace one could mean doing the entire job again in the near future if another component fails.
Do I need to resurface or replace my flywheel?
Yes, it is critical to have the flywheel resurfaced by a machine shop or replaced whenever you install a new clutch disc. A fresh, flat surface is required for the new disc to bed in properly and prevent chatter. Failure to do so can void the warranty on many new clutch kits.
My clutch pedal feels spongy. Is the clutch disc bad?
A spongy or soft clutch pedal is almost always a sign of a problem in the hydraulic system, not the clutch disc itself. This is typically caused by air in the hydraulic line or a failing master or slave cylinder. Check your clutch fluid level and look for leaks before assuming the clutch disc is the problem.
What is the "4+3" transmission in my 1984 Corvette?
The "4+3" is the nickname for the Doug Nash manual transmission offered in Corvettes from 1984 to 1988. It consists of a traditional 4-speed manual gearbox with an automatic overdrive unit attached to the back, which can engage in 2nd, 3rd, and 4th gears, giving a total of seven possible forward gear ratios.
Helpful Videos
Technical Specifications
OEM Part Numbers: 10120998 10232736 10232737 14085720 366860
Fits 1984 Corvette with 4+3 manual transmission. Diameter: ~10.4 inches (10-3/8"). Spline Count: 26. Input Shaft: 1-1/8".
