2013 Audi A4 & S4 Parking Brake Module Failure: A Guide to Replacement and Programming

Symptoms of a Failing Parking Brake Module

When the EPB module begins to fail on a 2013 Audi A4 or S4, the symptoms are usually very clear and appear on the instrument cluster display.

• "Parking Brake Malfunction" Warning: This is the most common and direct indicator of a problem within the system. The message will appear on the driver information screen.
• Flashing or Solid Brake Warning Lights: A yellow or red flashing parking brake light on the dash is a primary symptom. This is often accompanied by the ABS and ESC (Electronic Stability Control) warning lights illuminating at the same time.
• Inability to Engage or Release the Brake: You may find that the parking brake will not apply when you lift the switch, or more critically, it will not release when you push the switch, leaving the vehicle stuck.

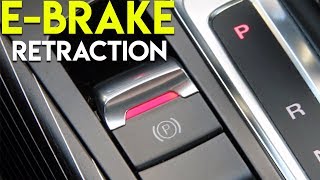

🎬 Watch how to handle a seized electric parking brake
• Audible Noises: In some cases, you may hear grinding or clicking from the rear of the car as the caliper motors struggle to operate.
• Fault Codes: A diagnostic scan will reveal trouble codes stored in the braking system. The most relevant modules to scan are Address 53 (Parking Brake) and 03 (ABS Brakes). Common faults point to issues with the parking brake motors or the module's power supply, such as code C100E 11 (Right Parking Brake Motor voltage supply Short to Ground).

Known Issues, Causes, and Recalls

Common Causes of Failure

Several issues can lead to a "Parking Brake Malfunction" warning. While the module itself can fail internally, it's important to rule out other causes first.

• Weak Battery: The EPB system requires a stable and strong voltage to operate the caliper motors. A weak or dying vehicle battery is a frequent cause of intermittent parking brake faults.
• Wiring Harness Damage: The wiring that runs from the control module to the rear brake caliper motors is exposed to the elements. Corrosion, especially at the connector on the caliper, or physical damage to the wires can cause a short or open circuit, leading to a fault.
• Faulty Caliper Motor: The small electric motor attached to one or both rear brake calipers can fail, which the control module will detect as a system fault.
• Software Glitches: Audi issued a Technical Service Bulletin (TSB 2031135/1) for a one-time software glitch that could cause the yellow EPB warning light to appear on 2013 models. This fault would typically clear after restarting the car and was not supposed to recur. The TSB explicitly advises against replacing the module for this specific, non-repeating issue.
• Module Failure: The internal electronics of the control module can fail over time, requiring replacement of the unit.

As of early 2026, there are no active recalls on the NHTSA database specifically for the electronic parking brake module on the 2013 Audi A4 or S4.

Programming and Calibration: The Critical Step

Replacing the EPB module is not a simple physical swap. These modules are equipped with a factory anti-theft feature called Component Protection (CP).

Component Protection links the module to the vehicle's original VIN. When a new or used module is installed, the car recognizes that it doesn't belong, and it enters a restricted mode. This means the parking brake will not work until the Component Protection is removed and the module is adapted to your vehicle.

How is Component Protection Removed?

• Audi Dealer or VAG Specialist: The official method requires connecting the vehicle to Audi's factory servers using a diagnostic tool called ODIS. This online process, sometimes called GEKO access, verifies the new part and codes it to your car's VIN. Dealers and well-equipped independent specialists can perform this service.
• Independent Programming Services: Some independent shops specialize in VAG programming and can remove Component Protection, often at a lower cost than a dealer.
• DIY Tools (VCDS, OBDeleven): Standard enthusiast tools like VCDS cannot remove Component Protection on their own because they lack the required online connection to Audi's servers. However, after CP is removed, a tool like VCDS is necessary to perform basic settings and calibration, such as adapting the brake pad thickness.

Buying a Used Chassis Control Module

A used OEM module is a great way to save money, especially since even a brand-new part requires the same programming. Here’s what to look for:

• Match the Part Number: The most important step is to match the OEM part number exactly. For the 2013 A4 and S4, the primary part number is 8K0907801J. You may see other letter suffixes (like H, L, or M), which are often earlier revisions. The 'J' suffix is a later release, but always try to match your original part number.
• Inspect for Damage: Check the module's casing and connectors for any signs of physical damage, corrosion, or water intrusion. A module from a flood-damaged vehicle should be avoided at all costs.
• Compatibility Check: This module was primarily used on Audi B8-platform vehicles with Quattro All-Wheel Drive. While it fits many A4, S4, A5, and S5 models from roughly 2008-2017, ensure the donor vehicle had an electronic parking brake and AWD.
• Why Used OEM is a Good Choice: Aftermarket versions of complex control modules are rare and often have compatibility or quality issues. Since both new and used OEM modules require professional programming, the cost savings of a tested, used OEM part make it a very practical choice.

Replacement Guide

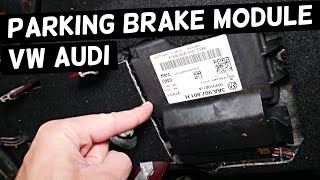

The EPB control module is most commonly located under the center console, beneath the MMI controls and near the gear shifter. Some parts databases incorrectly list the location as the right side of the trunk, but video evidence from mechanics points to the center console.

1. Disconnect the Battery: Before working on any electronic module, disconnect the negative terminal of the battery.
2. Remove Center Console Trim: 🎬 Watch this step-by-step center console removal guide This is the most labor-intensive part of the job. You will need to carefully pry off the trim around the gear shifter, remove the MMI/radio control panel, and unbolt the ashtray and climate controls to gain access. This requires trim removal tools to avoid scratching the interior.
3. Unbolt and Unplug the Module: Once the console trim is out of the way, you will see the EPB module. It is typically held in by a few bolts or screws. Disconnect the electrical connectors and remove the old module.
4. Install the New Module: Bolt the replacement module in place and reconnect the electrical harnesses.
5. Reassemble and Program: Reassemble the center console in the reverse order of removal. The vehicle must then be taken to a dealer or qualified shop for Component Protection removal and calibration.
