2024-2026 Ford Mustang Bumper Brackets: A Guide to Fitment Issues, TSBs, and Part Numbers
This guide covers the numerous front and rear bumper mounting brackets for the S650 Mustang, explaining how to fix factory panel gaps and choose the right used part for a collision repair.
- A known factory issue (TSB 23-2434) causes poor rear bumper fitment on early 2024 models; revised brackets are available to fix this.
- Damage is the primary cause of failure. When buying a used bracket, inspect every single mounting tab and clip for cracks, as even one broken tab can make the part useless.
- There are many different brackets for the front, rear, center, and sides. Always verify the exact OEM part number stamped on your old part before buying a replacement.
- A broken bracket can cause parking sensor errors by changing the sensor's alignment, in addition to causing visible sagging and rattling.
Known Issues & TSB for Bumper Fitment
The most significant known issue for 2024-2026 Mustang bumper brackets is poor factory fitment, particularly at the rear. Many owners have reported noticeable issues straight from the dealership, including large, uneven panel gaps where the rear bumper cover meets the quarter panels, and visible "ripples" or stress marks in the plastic bumper cover.
Pro Tip: Ford has acknowledged this problem and issued Technical Service Bulletin (TSB) 23-2434 for 2024 Mustangs built on or before December 4, 2023. This TSB instructs dealers to replace the original rear bumper cover side brackets with revised parts to correct the poor fit. If you are buying a used bracket for a rear corner, it is highly advisable to get the updated part number to ensure proper fitment.
TSB 23-2434 Details:
- Issue: Rear bumper cover has poor fitment and/or excessive body gap where it meets the quarter panel.
- Cause: Incorrect installation or poor attachment to the original bumper support bracket.
- Solution: Replace both left and right rear bumper cover reinforcement brackets with revised parts.
- Updated Part Numbers: PR3Z-17D942-C (Right) and PR3Z-17D943-C 🎬 See how to remove the rear bumper cover. (Left).
Symptoms of a Failed or Damaged Bracket
Since the primary cause of failure is impact damage from a collision, the symptoms are almost always visible. Age-related failure is unlikely on these newer vehicles.
- Sagging or Misaligned Bumper: The most obvious sign is a bumper cover that droops, sags, or has uneven gaps with the adjacent body panels (fenders, quarter panels, headlights). This was also a known factory quality control issue on some early 2024 models.
- Loose Bumper Cover: If you can easily move or wiggle a corner of the bumper cover with your hand, it's a clear sign that the underlying clips or the bracket itself is broken.
- Rattling or Vibrating Noises: A broken bracket can allow the bumper cover to vibrate against the car's body or the main bumper reinforcement bar, especially when driving on rough roads.
- Parking Sensor Malfunctions: The bumper brackets are responsible for holding the parking sensors in a precise position. If a bracket is broken or warped from an impact, it can change the sensor's angle, leading to false alerts, "no-fault" error messages on the dashboard, or a complete failure of the park assist system.
Decoding 2024-2026 Mustang Bumper Bracket Part Numbers
Ford uses numerous brackets for the front and rear bumpers, and it's critical to get the exact one for your vehicle's location and trim. The part number is typically stamped directly onto the plastic part. Note that part numbers starting with 'PR3Z' are for the 2024+ S650 generation. Part numbers like 'JR3B' or 'FR3Z' belong to the previous S550 generation (2015-2023) and will not fit.
| Part Number | Location | Common Name | Notes |
|---|---|---|---|
| PR3Z-17C947-B | Front, Driver Side | Support Bracket / Cover Support | Fits EcoBoost, GT, and Dark Horse models. |

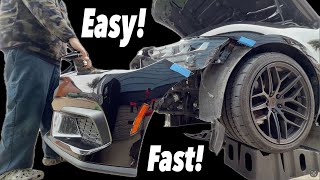

| PR3Z-17C947-A | 🎬 Watch this step-by-step front bumper removal guide.Front, Passenger Side | Support Bracket / Cover Support | Fits EcoBoost, GT, and Dark Horse models. |
| PR3Z-17754-AB | Rear, Center | Center Support Bracket | This bracket sits in the middle of the rear bumper. |
| PR3Z-17E855-A | Rear, Driver Side (Inner) | Bumper Cover Support Rail | Fits all trims. |
| PR3Z-17D942-A | Rear, Passenger Side (Outer) | End Support / Support Rail | Original part, may be superseded by the TSB part for better fitment. |
| PR3Z-17D943-C | Rear, Driver Side (Outer) | Reinforcement Bracket | Revised part from TSB 23-2434 for improved fitment. |
| PR3Z-17D942-C | Rear, Passenger Side (Outer) | Reinforcement Bracket | Revised part from TSB 23-2434 for improved fitment. |
Buying a Used Bumper Mounting Bracket
For a part like this, a used OEM bracket is often a smarter choice than a new aftermarket one. Used OEM parts guarantee perfect fitment, which is critical for panel gaps and sensor alignment. Aftermarket brackets for a new model may have slight variations that cause installation headaches.
Inspection Checklist:
- Verify the Part Number: This is the most important step. Find the number stamped on your old part and match it exactly. For rear corner brackets, prioritize getting the updated TSB part numbers (PR3Z-17D942-C / PR3Z-17D943-C) if possible.
- Check All Mounting Tabs: Carefully inspect every single tab, clip, and screw hole. These are the most common failure points. A bracket with even one broken tab will not hold the bumper cover securely and may cause rattling or sagging.
- Look for Hairline Cracks: Bend the part slightly and look for small, hairline cracks, especially around the mounting points. What looks like a minor crack can quickly break completely during installation or from road vibrations.
- Inspect Sensor Mounts: For brackets that hold parking sensors, ensure the circular mounting rings and their small retaining clips are perfectly intact and not warped. A damaged sensor mount will prevent the sensor from seating correctly.
- Avoid Repaired Parts: Look for signs of plastic welding, glue, or epoxy. These repairs rarely hold up and are a sign that the part was severely damaged.
Replacement Overview & Difficulty
Replacing a bumper bracket requires removing the entire bumper cover. While not technically difficult, it is a multi-step process that requires care to avoid scratching the paint.
- Difficulty: 2.5 out of 5
- Estimated Time: 1.5 - 2 hours
- Is DIY Feasible?: Yes, for those comfortable with basic hand tools.
The general process involves removing screws and plastic clips inside the wheel wells, along the bottom edge of the bumper, and sometimes hidden behind the trunk liner or under the headlights. Before pulling the bumper cover off, you must disconnect any wiring harnesses for lights and parking sensors. The brackets themselves are then typically unbolted from the car's body, swapped, and the process is reversed.
Warning: When removing the bumper cover, have a soft blanket or mat ready to set it on to prevent scratches. It's often helpful to have a second person to help guide the cover off and on without damaging the paint on the adjacent body panels.

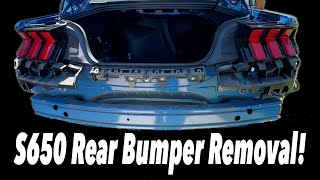

🎬 Watch a walkthrough of the rear bumper removal process.Cost Comparison
Prices can vary based on the specific bracket's location and complexity. Rear corner brackets with sensor mounts tend to be more expensive.
| Part Type | Estimated Cost |
|---|---|
| New OEM | $40 - $115 per bracket |
| New Aftermarket | $50 - $75 per bracket |
| Used OEM | $30 - $60 per bracket |
| Shop Labor | $150 - $300 to remove bumper, replace bracket(s), and reinstall |
Frequently Asked Questions (FAQ)
Can I reuse my old bumper brackets after an accident?
It is not recommended. Bumper brackets are made of plastic and are designed to crack or break during an impact to absorb energy. Even if a bracket looks intact, it may have hidden stress cracks that will fail later. Given their relatively low cost, it's always best to replace them after any collision.
Do I need to recalibrate my parking sensors after replacing a bracket?
Generally, no. If you use a correct, undamaged OEM bracket that positions the sensor in its original factory location, recalibration is typically not necessary. However, if the system gives errors after reassembly, it may indicate the sensor was damaged, the wiring is loose, or the bracket is incorrect.
Are the brackets the same for the EcoBoost, GT, and Dark Horse?
For the most part, yes. The main support brackets appear to be shared across all major trims. However, some diagrams show different part numbers for components on cars with or without the Dark Horse package, so it is absolutely essential to verify the part number from your specific vehicle before ordering a replacement.
My 2024 Mustang has bad bumper gaps from the factory. What should I do?
If your car was built on or before December 4, 2023, it may be covered by TSB 23-2434. Contact a Ford dealership with your VIN and describe the issue. They should be able to perform the TSB repair, which involves installing updated rear brackets, under the new vehicle warranty.
Helpful Videos
Technical Specifications
OEM Part Numbers: PR3Z-17C947-A PR3Z-17C947-B PR3Z-17754-AB PR3Z-17E855-A PR3Z-17D942-A PR3Z-17D942-C PR3Z-17D943-C PR3B-17B861 PR3B-17B861-A PR3B-17E851-A PR3B16072 PR3B17D960 PR3B17F766 PR3Z-16072-A PR3Z-16072-B PR3Z-17754-AB PR3Z-17C947-C PR3Z-17D942-A PR3Z-17D942-C PR3Z-17E855-A
Primarily made of engineered plastics like polypropylene. Designed to fit specific locations (front/rear, left/right, inner/outer) and may include integrated mounts for parking sensors.
