2014-2017 Mazda 6 Bumper Impact Bar: Decoding the LED vs. Non-LED Fitment

Fitment Warning: LED vs. Non-LED Headlights

The most important factor when replacing the front bumper impact bar on a 2014-2017 Mazda 6 is identifying the correct part for your vehicle's trim level. Unlike many components, there is a specific and meaningful difference based on the type of headlights your car has.

• Models with LED Headlamps: These vehicles, typically higher trim levels like the Grand Touring, require part number GHP9-50-070A.
• Models without LED Headlamps: These vehicles, often the Sport or Touring trims, may use a different impact bar.

Symptoms of a Damaged Bumper Impact Bar

A bumper impact bar is a passive safety component, meaning it doesn't have moving parts that wear out. Failure is always caused by an external event, either a collision or severe corrosion.

Visible Collision Damage

This is the most common reason for replacement. After any front-end accident, the impact bar should be considered a single-use item. Even if the plastic bumper cover pops back into place with minimal visible marks, the steel bar behind it may be bent, dented, or creased. Any deformation, no matter how small, means the bar has done its job by absorbing an impact and will not provide the designed level of protection in a future collision.

Advanced Rust and Corrosion

For vehicles in the salt belt or humid climates, rust can become a serious safety issue. While light surface rust is cosmetic, deep, flaky, or bubbling corrosion can significantly weaken the steel structure. A heavily rusted bar can collapse on impact instead of properly absorbing energy. If you can poke a hole in the bar with a screwdriver or see sections of metal flaking off, it is no longer safe and must be replaced.

Buying a Used 2014-2017 Mazda 6 Bumper Impact Bar

A used, undamaged OEM impact bar is an excellent, cost-effective alternative to a new part. It provides the same fitment and safety performance as a new one because it was made to Mazda's original specifications. This is often a better choice than a cheap, new aftermarket part, which may use lower-grade steel or have slight fitment issues. Here’s what to check:

• Zero Deformities: This is non-negotiable. Lay the bar on a flat concrete floor to check for any warping or twisting. Carefully inspect the entire surface for any dents, creases, or areas that look compressed. Pay close attention to the mounting points. Any sign of impact means the part is scrap.
🎬 Watch: How to remove a damaged bumper impact bar
• Check the Mounting Points: Ensure the bolt holes are perfectly round and not torn, stretched, or deformed. Damaged mounting points indicate the bar was ripped from a vehicle during a severe impact.
• Assess the Rust: Look for signs of corrosion. Light, uniform surface rust can be easily treated with a wire brush and a coat of rust-inhibiting paint before installation. However, you must reject any bar with deep, pitting rust, flaking, or holes.
• Confirm the Part Number: Given the fitment difference between models with and without LED lights, it is crucial to match the OEM part number. Ask the seller to provide a clear photo of the part number sticker or stamping if possible.

Cost Comparison

Installation Overview & Difficulty

• Difficulty Rating: 3 out of 5 (Moderate)
• Estimated Time: 1.5 - 2.5 hours
• DIY Feasible: Yes, for those comfortable with basic tools.

The replacement process is not mechanically complex, but it requires patience and care to avoid damaging the painted bumper cover. The basic steps involve removing the front bumper cover to access the impact bar, unbolting the old bar, and bolting the new one in place.

The general procedure is as follows:

1. Remove Upper Fasteners: Open the hood and remove the series of plastic push-clips and screws that secure the top of the bumper cover to the radiator support.
2. Remove Wheel Well Fasteners: In each front wheel well, remove the push-clips and the 8mm screw that attach the bumper cover to the fender and liner.
3. Remove Lower Fasteners: Remove all 8mm screws and push-clips along the bottom edge of the bumper cover that connect it to the engine splash shield.
4. Detach Bumper Cover: Starting at the corners by the wheel wells, carefully but firmly pull the sides of the bumper cover away from the car to release the clips holding it to the fender bracket. Once both sides are free, the entire cover can be pulled forward. If you have fog lights, disconnect their wiring harnesses before fully removing the cover.
5. Replace Impact Bar: The steel impact bar is now fully exposed. It is held to the frame rails by several large bolts. Unbolt and remove the old bar, then position the new bar and tighten the bolts to the proper torque specification.

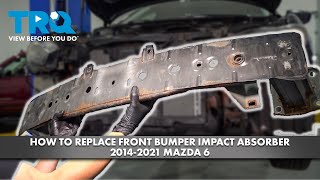

🎬 See how to replace the front bumper impact absorber
6. Reassembly: Re-install the bumper cover by reversing the removal steps. Make sure all clips snap securely into place before reinstalling the screws and fasteners.

Known Issues, TSBs, and Recalls

As of mid-2026, there are no specific recalls or Technical Service Bulletins (TSBs) from Mazda or the NHTSA related to the front bumper impact bar for the 2014-2017 Mazda 6. Recalls for this model year range exist for other issues like parking brake calipers and passenger seat sensors, but the bumper reinforcement itself has no known manufacturing defects.
