2014-2020 Kia Cadenza Bumper Reinforcement: Decoding the Generational Part Split
This guide clarifies the critical differences in rear bumper impact bars between the 2014-2016 and 2017-2020 Kia Cadenza models, ensuring you get the right part for a safe repair.
- The 2014-2016 Cadenza (Gen 1) and 2017-2020 Cadenza (Gen 2) use different, non-interchangeable rear impact bars. Verify your year before buying.
- A bent, cracked, or twisted impact bar must be replaced, never repaired. Its ability to protect you in a crash is permanently lost once damaged.
- Damage to the impact bar can be hidden behind a plastic bumper cover that looks fine. Always inspect it after any rear-end collision.
- A used OEM bar is a good value, but must be carefully inspected for subtle bends, cracks at the welds, or deep rust before installation.
Symptoms of a Damaged Bumper Impact Bar
A bumper impact bar is a passive component, meaning it doesn't have moving parts that wear out over time. Failure is almost always the result of a collision or advanced corrosion. The symptoms are typically visual and may not be obvious without inspection.
- Visible Damage After a Collision: The most obvious sign is a bent, cracked, or twisted metal bar. This damage is often hidden behind the plastic bumper cover and only discovered after it's removed. 🎬 Learn how to inspect a car for hidden body damage.
- Misaligned Bumper Cover: If the plastic bumper cover appears loose, sagging, or has uneven gaps with the body panels, it could be a sign that the underlying reinforcement bar is bent and no longer supporting it correctly.
- Severe Rust or Corrosion: In areas with road salt or high humidity, the bar can rust. While surface rust is common, deep or flaking rust can compromise the metal's strength, making it unable to properly absorb impact in a future accident.
Pro Tip: Even a minor fender bender with little visible damage to the plastic bumper cover can be enough to bend the steel impact bar behind it. Always inspect the reinforcement bar after any rear-end collision, no matter how small.
Generational Differences and Part Numbers (2014-2020)
The Kia Cadenza underwent a full redesign for the 2017 model year. This means the rear bumper impact bar for the first generation is not interchangeable with the second generation. Using the wrong part will result in improper fitment and compromised safety. It is crucial to order the part that matches your specific model year.
| Generation | Model Years | Common OEM Part Number | Notes |
|---|---|---|---|
| 1st Generation | 2014, 2015, 2016 | 86620-3R600 (or 86631-3R600) | Fits the first-generation body style. |
| 2nd Generation | 2017, 2018, 2019, 2020 | 86631-F6100 | Fits the redesigned second-generation body style. |
Warning: The initial prompt's suggestion of a single part for all years is incorrect. The parts for 2014-2016 and 2017-2020 are different and cannot be swapped. Always confirm your vehicle's year before purchasing.
A Note on Park Assist Sensors
While some bumper covers are different for vehicles with or without park assist sensors, the reinforcement bar itself is generally not affected. The sensors and their wiring harness are separate components that typically mount to the plastic bumper cover or small brackets, not the main impact bar. When buying a used part, ensure the bar is correct for your generation; when dealing with the bumper cover, ensure it has the correct holes for your vehicle's options.
Buying a Used Bumper Impact Bar: What to Check
A used OEM impact bar is an excellent value, offering the original factory fit and material quality. However, since these parts are often salvaged from wrecked vehicles, a careful inspection is essential.
- Check for Bends and Kinks: Lay the bar on a flat surface. It should sit flush with no wobbling. Look down the length of the bar from both ends to spot any subtle bends or twists. A compromised bar cannot be safely repaired and must be replaced.
- Inspect for Cracks: Pay close attention to the mounting points and any welded areas. Even small hairline cracks mean the part's structural integrity is gone.
- Examine the Mounting Holes: Ensure the mounting holes are round and not elongated or torn. Damage here indicates the bar was stressed heavily during an impact and should not be reused.
- Assess Rust Damage: Minor surface rust can often be cleaned and painted. However, if the rust is deep, causes pitting, or flakes off in layers, the bar has lost structural strength and should be rejected.
Known Issues, Recalls, and TSBs
As of early 2026, there are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA regarding the rear bumper impact bar for the 2014-2020 Kia Cadenza.
However, several significant safety recalls exist for these vehicles that owners should be aware of:
- HECU Fire Risk: Certain 2014-2019 Cadenza models were recalled due to a risk of an electrical short in the Hydraulic Electronic Control Unit (HECU), which could cause an engine compartment fire while parked or driving.
- Windshield Detachment: All 2014-2016 Cadenza vehicles were recalled because the front windshield may not have been properly bonded, potentially allowing it to detach in a crash.
- Wheel Fracture Risk: Some 2014 Cadenza models equipped with specific 19-inch non-chrome wheels were recalled due to the risk of the wheels fracturing after hitting a large pothole.
You can check if a specific vehicle is affected by these or any other recalls by entering its 17-digit VIN on the NHTSA website.
Replacement Overview & Difficulty
Replacing the rear bumper impact bar is a straightforward but somewhat tedious process. The main task is the careful removal and reinstallation of the plastic bumper cover.
- Difficulty: 3 out of 5 (Moderate)
- Estimated Time: 1.5 - 2.5 hours
- Process: The job involves removing screws and clips from inside the wheel wells, under the trunk sill, and beneath the bumper. 🎬 Watch: The secret to easily removing Kia rear bumpers. The tail lights may also need to be removed to access hidden fasteners. Once the bumper cover is off, the impact bar is typically held to the frame rails by a few large bolts. 🎬 See this walkthrough on how to replace a reinforcement bar. The process is then reversed for installation.
- DIY Feasible?: Yes, for a patient DIYer with basic hand tools. Having a second person to help handle the large, flexible bumper cover without scratching it is highly recommended.
Cost Comparison
Prices can vary based on location and supplier, but here is a general cost expectation for the rear bumper impact bar:
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $270 - $400 | Purchased from a Kia dealership or online OEM parts store. |
| New Aftermarket | $150 - $250 | Less common for this structural part. Fit and material quality may not match OEM. |
| Used OEM | $150 - $225 | A great value if inspected carefully for damage. |
| Shop Labor | $150 - $250 | Based on 1.5-2.0 hours of labor at a typical independent shop rate. |
Frequently Asked Questions (FAQ)
Is a bumper impact bar the same as a bumper?
No. The part you see on the outside of the car is the bumper cover, which is a flexible, painted piece of plastic. The impact bar is the solid metal beam behind it that provides structural protection in a crash.
Can I repair a bent bumper impact bar by hammering it straight?
Absolutely not. Once the metal has been bent, its structural integrity is permanently compromised. Bending it back does not restore its ability to absorb impact correctly. A damaged impact bar must always be replaced.
Do I have to replace the impact bar after a minor fender bender?
It depends. If the bar is bent, cracked, or has its mounting points damaged, it must be replaced for safety. The plastic bumper cover can flex and pop back into shape, hiding serious damage to the reinforcement bar behind it. An inspection is always necessary to be sure.
Will a damaged rear impact bar cause the car to fail a safety inspection?
This depends on state regulations and how thorough the inspection is. If the bumper cover is loose, hanging, or misaligned due to a damaged bar, it will likely fail inspection. Even if it passes, driving with a compromised safety component is not recommended.
Helpful Videos
Technical Specifications

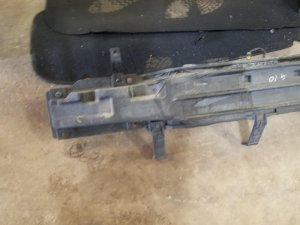

OEM Part Numbers: 86620-3R600 86631-3R600 86631-F6100
Material: Primarily steel. Function: Passive safety, energy absorption.
