2012-2014 Hyundai Azera Bumper Impact Bar: A Guide to Post-Collision Replacement
Learn how to inspect a used bumper bar for hidden damage and understand the critical safety recall affecting all 2012-2014 Azera models.
- A damaged bumper impact bar must always be replaced, never repaired; it is a one-time-use safety component.
- All 2012-2014 Azera owners should be aware of a critical fire-risk recall for the ABS module (Hyundai Recall #251) and should park outside until the repair is done.
- When buying used, meticulously inspect the bar for any bends, cracks, or distorted mounting plates to ensure it has not been in a prior accident.
- A straight, undamaged used OEM part (86530-3V080) is often a better choice than a cheap new aftermarket part due to guaranteed fitment and material quality.
Symptoms of a Damaged Bumper Impact Bar
A bumper impact bar does not wear out like a mechanical part; it is only damaged by physical impact. The signs of a bad impact bar are almost always visual and are typically discovered after a front-end collision.
- Misaligned or Sagging Bumper Cover: If the plastic front bumper cover is crooked, drooping, or has uneven gaps with the headlights and fenders, the underlying reinforcement bar is likely bent or damaged, pushing the cover out of position.
- Visible Damage to the Bar: After even a minor accident, the impact bar itself may be bent, creased, or have cracks, especially near the mounting points or welds. This damage can be hidden behind a bumper cover that appears to have popped back into place.
- Cracked Plastic Bumper Cover: Significant cracks in the outer plastic cover are a strong indication that the impact was severe enough to compromise the metal reinforcement bar behind it.
CRITICAL SAFETY RECALL: All 2012-2015 Hyundai Azera models are part of a major recall for the Anti-Lock Brake System (ABS) module (NHTSA Campaign ID: 23V651000, Hyundai Recall #251). The ABS module can leak brake fluid internally, causing an electrical short that can lead to an engine compartment fire while the vehicle is parked or being driven. Owners are advised to park their vehicles outside and away from structures until the recall repair, which involves replacing the ABS fuse, is completed by a dealer. You can check if your specific vehicle is affected by entering your VIN on the NHTSA website.
🎬 Watch: News report on the Hyundai fire risk recallBuying a Used 2012-2014 Azera Impact Bar: A Buyer's Checklist
A used OEM impact bar is an excellent, cost-effective choice, often providing better fit and material integrity than a cheap aftermarket alternative. However, since this is a critical safety component, careful inspection is mandatory. Never install a bar that has been in a previous accident, no matter how minor.
- Check for Bends or Creases: Lay the bar on a flat surface. It should sit perfectly level. Look down its length from both ends to spot any subtle bends, waves, or twists. A compromised bar cannot absorb a future impact correctly.
- Inspect Mounting Plates: The flat plates on each end that bolt to the vehicle's frame must be perfectly straight and free of any distortion. Check for elongated or torn bolt holes, which indicate the bar was stressed in a collision.
- Examine Welds: Look closely at all welds where the main beam connects to the mounting plates. Any visible cracks or signs of stress mean the part is junk.
- Assess for Rust: Surface rust can be cleaned and treated with a rust-inhibiting paint before installation. However, you should reject any bar with deep, flaking, or pitting rust, as this indicates the structural strength has been compromised.
- Verify the Part Number: Ensure the part is stamped with or identified as OEM part number 86530-3V080 to guarantee correct fitment for your 2012-2014 Azera.
Pro Tip: When replacing the impact bar, it's also a good time to inspect the foam energy absorber that sits on its face (Part No. 86520-3V100). This part is designed to crush and absorb low-speed impacts and should be replaced if it is cracked, compressed, or missing pieces.
Replacement Overview & Difficulty
Replacing the front bumper impact bar is a straightforward process that can be done by a DIY mechanic with basic tools. The main challenge is carefully removing the painted bumper cover without scratching it.

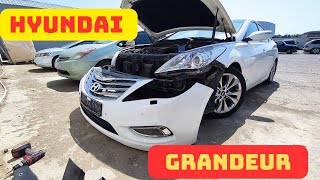

🎬 Watch: How to remove the front bumper cover- Difficulty: 2 out of 5
- Estimated Time: 1.5 - 2.5 hours
- Process: The job involves removing plastic push-clips and screws from the top, sides (in the wheel wells), and bottom of the bumper cover. Once the fasteners are out, the cover is gently pulled away from the body, disconnecting any fog light wiring. The steel impact bar is then fully exposed, held to the frame rails by several large bolts. 🎬 See how to remove a bumper impact bar Simply unbolt the old bar, bolt the new one in its place, and reverse the procedure to reinstall the bumper cover.
Cost Comparison: New vs. Used Azera Impact Bar
Prices for the impact bar itself can vary significantly. Labor costs for a professional installation are additional.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM | $460 - $720 | Purchased from a Hyundai dealership. Guarantees perfect fit and material quality. |
| New Aftermarket | $150 - $300 | Prices vary. Fitment and material quality can be inconsistent compared to OEM. |
| Used OEM | $140 - $270 | A cost-effective option providing OEM quality, provided it is carefully inspected for prior damage. |
| Shop Labor | $150 - $350 | Includes removing the bumper cover, swapping the bar, and reinstallation. |
Technical Specifications
| Specification | Value |
|---|---|
| OEM Part Number | 86530-3V080, 865303V080 |
| Other Names | Rail Assembly-Front Bumper, Bumper Reinforcement |
| Material | Steel |
| Fitment | 2012, 2013, 2014 Hyundai Azera |
Frequently Asked Questions (FAQ)
Can I reuse my bumper impact bar after a small accident?
No. A bumper impact bar is a one-time-use safety device. Even if it looks straight, a collision can cause microscopic cracks and weaken the metal, meaning it will not provide the designed protection in a subsequent crash. It must be replaced.
Will an aftermarket impact bar work as well as an OEM one?
While some high-quality aftermarket parts exist, many cheaper versions may use lower-grade steel or have slight dimensional inaccuracies that can cause problems with bumper cover alignment. For a critical safety part, a verified-undamaged used OEM bar is often a safer and better-fitting choice than a new, low-cost aftermarket bar.
Do I need to paint the new or used impact bar?
Most new OEM and aftermarket impact bars come with a black protective coating (e-coat) that is sufficient to prevent rust. You do not need to paint it. If you purchase a used bar and have to clean off surface rust, it is highly recommended to apply a coat of rust-inhibiting paint before installation.
Is the front impact bar the same as the rear one?
No, they are completely different parts with unique shapes and mounting points. The rear impact bar for a 2012-2014 Azera has a different part number (typically 86631-3V100).
Helpful Videos
Technical Specifications
OEM Part Numbers: 86530-3V080 865303V080
Material: Steel. Location: Front of vehicle, behind bumper cover.
