2000-2007 Subaru Legacy & Outback Front Bumper: Solving the Interchange Puzzle
Sorting out which front bumper fits your 3rd or 4th generation Legacy or Outback is tricky—this guide clarifies the critical differences to ensure you get the right part.
- The single most critical factor is vehicle generation: 3rd Gen (2000-2004) and 4th Gen (2005-2007) bumpers are NOT interchangeable.
- For 2005-2007 models, Legacy and Outback bumpers are completely different and cannot be swapped.
- When buying a used bumper, the condition of the mounting tabs on the back is more important than the cosmetic condition of the paint.
- Expect to have any replacement bumper (new or used) professionally painted to match your vehicle, which can be a significant portion of the total cost.
Key Compatibility Warning: Not All Bumpers Are The Same
Critical: The most common mistake when buying a bumper for these vehicles is assuming they are all interchangeable. They are not. The 2000-2007 year range spans two completely different Subaru Legacy generations, and the bumpers are different between them. Furthermore, within each generation, there are important distinctions between Legacy and Outback models.
- Third Generation (2000-2004): Applies to 2000-2004 Legacy and 2000-2004 Outback models.
- Fourth Generation (2005-2007): Applies to 2005-2007 Legacy and 2005-2007 Outback models.
You must correctly identify your vehicle's generation and model before purchasing a part.
Third Generation: 2000-2004 Legacy & 2000-2004 Outback
For this generation (chassis codes BE, BH), the Subaru Outback was still technically a trim level of the Legacy, but it featured distinct, more rugged styling. This extended to the front bumper.
- Standard Legacy (L, GT, Brighton): These models used a smoother, fully painted bumper cover for a street-oriented look.
- Outback & Legacy SUS (Sport Utility Sedan): These models featured a more aggressive bumper, often with a two-tone color scheme and integrated, larger fog lights. The shape was different to accommodate the body cladding.
While the underlying mounting points on the chassis are the same, swapping a standard Legacy bumper for an Outback bumper (or vice-versa) is not a direct bolt-on. It may require changing the reinforcement beam, fender liners, and mounting brackets to ensure proper fitment.
Fourth Generation: 2005-2007 Legacy & 2005-2007 Outback
For this generation (chassis codes BL, BP), the Legacy and Outback became more distinct models, and their front bumpers are not interchangeable. They have different shapes, grille openings, and mounting points to the fenders and headlights.

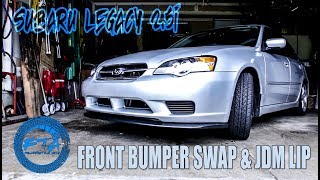

- 2005-2007 Legacy (2.5i, GT): The Legacy bumper is specific to Legacy models only. 🎬 Watch: 2006 Subaru Legacy front bumper removal and install There were minor variations for models with and without fog lamps.

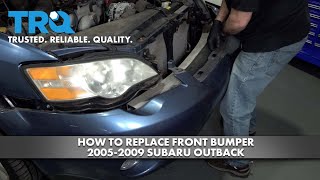

- 2005-2007 Outback (2.5i, XT, L.L. Bean): The Outback bumper is taller and shaped differently to match the vehicle's higher ride height and body cladding. It will not fit on a Legacy. 🎬 See this step-by-step 2005-2009 Outback bumper replacement guide
Pro Tip: When searching for a part, always specify your exact year, model (Legacy or Outback), and trim (e.g., GT, Limited). For this generation, you cannot mix and match parts between the two models.
Symptoms of a Failing Bumper Assembly
Failure is almost always due to physical impact or age. Here’s what to look for:
- Visible Cracks, Scuffs, or Holes: This is the most obvious sign of damage. Deep gouges and cracks cannot be easily repaired and compromise the cover's integrity.
- Poor Alignment or Gaps: If the bumper sags, sticks out at the corners, or has uneven gaps with the fenders and headlights, it's a sign of broken mounting tabs or brackets. This is a very common issue, especially after minor bumps.
- Rattling or Shaking: A loose bumper cover can vibrate or rattle while driving. This indicates that fasteners or clips are broken or missing, and the bumper is not secure.
- Damaged Fog Lights or Sensors: An impact that seems minor can often break the plastic housings or mounts for fog lights and other integrated components.
Buying a Used Bumper Assembly: What to Check
A used OEM bumper is often a better choice than a cheap aftermarket one, as the factory plastic is typically more durable and flexible. However, you need to inspect it carefully.
- Verify Exact Fitment: This is the most important step. Confirm the bumper came from the exact same generation and model as your vehicle (e.g., a 2006 Outback bumper for a 2006 Outback, not a 2006 Legacy). Check part numbers if possible.
- Inspect All Mounting Tabs: Carefully check the backside of the bumper. Pay close attention to the tabs and slots that connect to the fenders, headlights, and grille. These are the most common failure points. If they are cracked or broken, the bumper will never sit flush.
- Look for Previous Repairs: Check the back for signs of plastic welding (melted/discolored areas) or epoxy. A professional repair can be strong, but a poor repair will fail. Be wary of bumpers with thick layers of body filler.
- Check for Warping: Look down the length of the bumper to ensure it's straight. A bumper that was stored improperly or came from a wreck with frame damage may be warped and impossible to align.
- Understand the Finish: A used bumper will almost always have cosmetic scratches and will need to be professionally prepped and painted to match your car. The value is in the structurally sound plastic, not the paint job it comes with.
Replacement Overview and Difficulty
Replacing the front bumper cover is a manageable DIY job for those with basic tools.
- Difficulty: 2/5. It's mostly removing clips and screws, but it can be tedious.
- Estimated Time: 1-2 hours.
- Tools: Flathead screwdriver, Phillips screwdriver, trim clip removal tool, and a socket set (typically 10mm).
General Steps:
- Remove the plastic clips holding the top of the bumper to the radiator support.
- Remove the screws and/or clips inside each front wheel well that attach the bumper to the fender liner and fender.
- Remove any screws or clips along the bottom edge of the bumper attaching it to the splash shield.
- If equipped, disconnect the wiring harnesses for the fog lights.
- Carefully pull the sides of the bumper cover outwards to release them from the retaining brackets under the headlights.

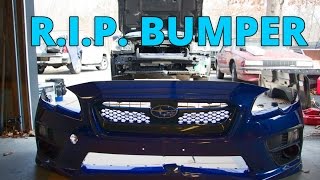

- Pull the entire bumper cover forward and off the vehicle. 🎬 Watch: Subaru front bumper removal and disassembly walkthrough Installation is the reverse of removal.
Cost Comparison: New vs. Used
Prices can vary significantly based on condition and source. Remember to factor in the cost of painting, which can often be more than the part itself.
| Part Type | Estimated Cost (Part Only) | Notes |
|---|---|---|
| New OEM | $250 - $400+ | Guaranteed fit, but comes unpainted. |
| New Aftermarket | $100 - $250 | Fitment can be inconsistent. May be made of a more brittle plastic than OEM. |
| Used OEM | $150 - $500 | Best value. OEM quality and fit, but requires inspection and will need painting. |
| Shop Labor (Installation) | $150 - $300 | Typically 1-2 hours of labor. |
| Shop Labor (Painting) | $300 - $600+ | Cost to prep, paint, and clear coat the new or used cover to match your vehicle's color. |
Known Issues, Recalls, and TSBs
There are no major safety recalls or Technical Service Bulletins (TSBs) from the NHTSA specifically for the bumper assemblies on these vehicles. The most common issues reported by owners on forums are related to broken retaining clips causing the bumper corners to pop out, or damage from minor impacts.
Frequently Asked Questions (FAQ)
Will a bumper from a 2007 Legacy fit my 2004 Legacy?
No. They are from two different vehicle generations (4th and 3rd, respectively) and have completely different shapes. You must use a bumper from the same generation as your car.
Can I put a rugged Outback bumper on my standard Legacy?
For 2000-2004 models, it is physically possible but requires additional parts like brackets and potentially the reinforcement beam for a proper fit. For 2005-2007 models, it is not feasible as the bumpers are completely different shapes and will not align with the Legacy's headlights and fenders.
Do I need to paint a new or used bumper cover?
Yes. New bumper covers, both OEM and aftermarket, typically come in a black, unpainted primer. Used bumpers will be in a variety of colors and will have cosmetic flaws. To ensure a perfect match with your vehicle, the cover must be professionally painted.
What's the difference between a 'bumper cover' and a 'bumper assembly'?
The 'bumper cover' (or fascia) is the visible, painted plastic part. The 'bumper assembly' typically refers to the entire system, including the cover, the foam energy absorber behind it, and the steel reinforcement beam that bolts to the car's frame.
Helpful Videos
Technical Specifications
OEM Part Numbers: 57704AE05A 57704AG02A 57704AE20A SU1000133 SU1000149 SU1000150
Material: Typically Polypropylene (PP) plastic. Finish: Shipped unprimed or primered, requires painting.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
