2011 Chevrolet Caprice PPV Brake Master Cylinder: Failure Symptoms & Replacement Guide

Symptoms of a Failing 2011 Caprice Brake Master Cylinder

A master cylinder rarely fails without giving some warning signs. The most common and significant symptom is a change in how the brake pedal feels. If you notice any of the following, you should inspect your brake system immediately.

• Spongy or Soft Brake Pedal: This is the most common sign of a failing master cylinder. The pedal may feel mushy or sink towards the floor when you press it. This happens because internal seals have worn out, allowing brake fluid to leak past the piston instead of building pressure.
• Brake Pedal Sinks to the Floor: If you hold your foot on the brake pedal while stopped, and it slowly sinks to the floor, this is a classic sign of an internal leak in the master cylinder.
• Brake Warning Light: The brake warning light on your dashboard can illuminate for several reasons, including low brake fluid. A leak in the master cylinder can cause the fluid level to drop, triggering the sensor in the reservoir.
• Contaminated Brake Fluid: If you check the brake fluid reservoir and the fluid is dark, black, or has specks in it, this can indicate that the rubber seals inside the master cylinder are deteriorating and breaking apart.
• External Fluid Leaks: While internal leaks are more common, the master cylinder can also leak externally. You might see brake fluid on the firewall behind the master cylinder or dripping from the area where it mounts to the brake booster. Brake fluid is very corrosive and can damage paint, so any leaks should be addressed immediately.

Known Issues, Recalls, and TSBs

For the 2011 Chevrolet Caprice PPV, there are no specific recalls or widespread technical service bulletins (TSBs) directly related to the brake master cylinder. However, two safety recalls are on record for this model year:

• GM Recall 14549 (NHTSA 14V544): This recall addresses an issue with the transmission shift lever, which could allow the vehicle to be shifted out of park without depressing the brake pedal or allow the key to be removed when not in park, creating a rollaway risk.
• Ignition Key Recall: A separate recall was issued because the driver's knee could bump the ignition key, potentially moving it out of the 'Run' position and causing the engine to stall.

While these recalls do not directly involve the master cylinder, they are important safety items for any 2011 Caprice owner to be aware of.

Buying a Used 2011 Caprice Master Cylinder: What to Check

A quality, low-mileage used OEM master cylinder can be a reliable and cost-effective alternative to expensive new parts. Here’s what to inspect before you buy:

1. Verify Part Numbers: Cross-reference the part number from the used unit with the known OEM numbers (such as 92257177, 92421250, or ACDelco 18M2746) to ensure compatibility.
2. Inspect the Reservoir: The plastic reservoir should be clean, with no cracks or signs of damage. The fluid inside should be clear or light amber, not dark or murky. Ensure the cap and fluid level sensor are intact and the electrical connector pins are not bent or corroded.
3. Check for Leaks: Carefully inspect the entire unit, especially the rear seal where it mounts to the brake booster. There should be no signs of brake fluid residue, which would indicate a leak. Also, check the ports where the brake lines attach for any cracks or thread damage.
4. Examine the Housing: The aluminum body of the cylinder should be free of corrosion, deep gouges, or cracks. Pay close attention to the mounting flanges to ensure they are not damaged.
5. Consider Mileage: While master cylinders can last a long time, choosing one from a lower-mileage vehicle (ideally under 100,000 miles) increases the chances of the internal seals being in good condition.

Replacement Overview & Difficulty

Replacing the brake master cylinder is a moderately difficult job that requires careful attention to detail to ensure the safety of the brake system.

• Installation Difficulty: 3 out of 5
• Estimated Time: 1.5 - 2.5 hours
• DIY Feasible: Yes, for experienced DIY mechanics.

Key Steps:

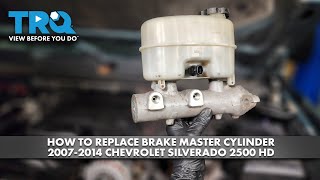

1. Bench Bleed the New Cylinder: This is the most critical step. Before installation, the new or used master cylinder must be 'bench bled' to remove all air from its internal chambers. This involves mounting it in a vise, filling it with fresh DOT 3 fluid, and using a tool to slowly push the piston in and out until no more air bubbles emerge. 🎬 Watch this step-by-step master cylinder replacement guide Failure to do this will make it nearly impossible to bleed the brakes properly on the vehicle.
2. Remove the Old Cylinder: Disconnect the negative battery terminal, then the fluid level sensor connector. Use a flare nut wrench to carefully disconnect the two brake lines to avoid stripping the fittings. Remove the two mounting nuts that hold the cylinder to the brake booster and pull it straight off.
3. Install the New Cylinder: Mount the bench-bled master cylinder onto the brake booster studs and tighten the nuts to the specified torque (24 ft-lbs for similar GM vehicles). Reconnect the brake lines and the sensor connector.
4. Bleed the Entire Brake System: After installation, the entire brake system must be bled to remove any air that entered the lines. Start at the wheel farthest from the master cylinder 🎬 See how to swap a GM brake master cylinder (typically the passenger rear) and work your way closer. This step usually requires a second person or a pressure bleeding tool.
