2002-2004 Jeep Liberty Header Panel: Fixing Cracks and Alignment Issues

What The Header Panel Does on a 2002-2004 Jeep Liberty

Think of the header panel as the skeleton of your Jeep's face. This large plastic structure sits directly behind the grille and serves as the primary mounting bracket for the headlights and the grille itself. It bolts to the vehicle's core support and fenders, creating the rigid structure needed to keep the entire front end of the vehicle properly aligned. If the header panel is cracked or warped, it can cause a cascade of issues, from misaligned body panels to improperly aimed headlights, which is a safety concern.

Common Symptoms of a Failed Header Panel

Failure of a header panel is almost always due to physical damage from a front-end collision, or from age-related brittleness causing cracks at stress points. Unlike mechanical parts, it won't trigger a check engine light. Instead, symptoms are all visual and structural.

• Misaligned Headlights: One headlight may point noticeably higher, lower, or to the side compared to the other. The light beam pattern on a wall will look uneven.
• Loose or Vibrating Grille: The grille may feel loose to the touch, rattle while driving, or have uneven gaps around its edges.
• Poor Bumper or Fender Gaps: The space between the header panel, bumper, and fenders may become uneven or excessively wide, indicating a shift in the panel's position.
• Difficulty Latching the Hood: In severe cases, damage to the header panel can affect the alignment of the upper radiator support and the hood latch mechanism.
• Visible Cracks or Broken Mounts: The most obvious sign is visible damage to the panel itself, especially around the headlight mounting points or where it bolts to the vehicle's frame. A dangling or loose fog light can also be a symptom of a broken mounting tab on the header panel.

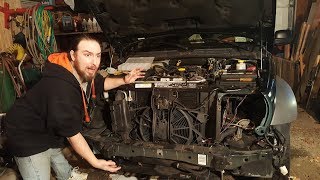

🎬 Watch: Replacing a cracked header panel and grille

Buying a Used 2002-2004 Liberty Header Panel: What to Check

A used OEM header panel is often a smart choice over a new aftermarket part, as the fit and plastic quality of the original part are typically superior. However, since these parts are often salvaged from wrecked vehicles, a thorough inspection is critical.

1. Inspect All Mounting Points: This is the most important check. Carefully examine every screw hole and mounting tab. Look for hairline cracks, especially around the headlight buckets and where the panel bolts to the fenders. A common failure point is a broken mounting tab, which can make proper alignment impossible.
2. Check for Warping: Lay the panel on a flat surface. It should sit flush without any significant rocking or twisting. A warped panel from a previous accident will never allow the headlights and grille to align correctly.
3. Look for Stress Marks: On the black plastic, look for white-ish lines or discoloration. These are stress marks that indicate the plastic has been bent or impacted, even if it didn't fully crack. These areas are weak and likely to fail in the future.
4. Verify Compatibility: The header panel for the 2002-2004 Jeep Liberty is specific to those years. The part was updated several times by Mopar, with part numbers progressing from 55155800AC to 55155800AF. Any of these will fit, but the latest 'AF' version is the most revised. Ensure you are buying a panel for a 2002-2004 model, as the 2005-2007 panel is different.

Known Issues, Recalls, and TSBs

There are no recalls or Technical Service Bulletins (TSBs) issued by Jeep or the NHTSA specifically for the body header panel on the 2002-2004 Liberty. Failures are exclusively the result of physical impact or age degradation.

However, it is important to note that the 2002-2004 model years of the Jeep Liberty are known for several significant issues, including engine problems, faulty window regulators, and safety recalls for airbags and corroding rear suspension components. While these are unrelated to the header panel, a buyer should be aware of the overall reliability concerns for this vehicle generation.

Cost of Replacing a Jeep Liberty Header Panel

The cost can vary significantly based on the part source and who performs the labor. A DIY replacement with a used part is very affordable, while a shop repair using a new OEM part will be the most expensive.

Header Panel Replacement Overview (Difficulty: 3/5)

Replacing the header panel is a manageable DIY project for someone with basic mechanical skills and tools. The main challenge is the number of components that must be removed to access it. No special tools are required, but a trim removal tool is helpful.

Estimated Time: 2-4 hours

Basic Steps:

1. Remove the Grille: It is typically held in by clips and sometimes screws at the top.
2. Loosen the Bumper Cover: You will need to remove several clips and bolts, including some in the wheel wells, to pull the top of the front bumper cover forward. You may not need to remove it completely.
3. Remove Headlight Assemblies: Unplug the wiring harnesses and unbolt both headlight housings from the header panel.
4. Unbolt the Old Header Panel: Remove the bolts along the top of the radiator support and at each side where it attaches to the fenders.
5. Transfer Components: You may need to transfer wiring clips or other small hardware from the old panel to the new one.
6. Install New Panel: Bolt the new header panel in place, but leave the bolts slightly loose for final adjustment.
7. Re-install Components: Re-install the headlights and grille. Adjust the header panel as needed to ensure even gaps and proper alignment before fully tightening all bolts. Re-secure the bumper cover.
