2022 Toyota Corolla Cross Air Bag Control Module (SRS): What You Must Know
This guide clarifies the critical difference between the Air Bag Control Module and a Body Control Module, covering replacement, programming, and recall information for the 2022 Corolla Cross.
- This part is the Air Bag Control Module (SRS Module), NOT a Body Control Module (BCM).
- After any accident, the module stores crash data and must be professionally reset or replaced; it cannot be reused as-is.
- A replacement module (new or used) MUST be programmed to your vehicle's specific VIN to function.
- A major recall exists for 2022-2023 models where the passenger airbag may not deploy; check your VIN on the NHTSA website.
Important: Air Bag Module vs. Body Control Module
There is significant confusion regarding this part. The part number 89170-0A140 is the Air Bag Control Module (also called the SRS module or Diagnostic Module), NOT the Body Control Module (BCM). The BCM is a separate part (e.g., part number 89221-16030) that controls functions like lights, windows, and locks. This guide focuses exclusively on the Air Bag Control Module for the 2022 Toyota Corolla Cross.
Warning: This is a critical safety component. Incorrect installation, handling, or programming can result in the airbags failing to deploy in a crash or deploying unexpectedly, causing serious injury or death. All work should be performed with the vehicle's battery disconnected.
Known Issues, Recalls, and TSBs
As of early 2024, there is a significant safety recall affecting some 2022-2023 Toyota Corolla Cross vehicles. The details are as follows:
- NHTSA Recall No. 23V-865 (Supersedes 23V-384): Some vehicles were manufactured with an instrument panel that does not have the necessary perforation for the front passenger airbag. This defect could prevent the passenger airbag from deploying correctly in a crash, increasing the risk of injury. Toyota dealers will re-inspect the instrument panel and replace it if necessary, free of charge. Toyota has advised that no one should sit in the front passenger seat of an affected vehicle until the inspection and remedy are completed.
Owners can check if their specific vehicle is involved by visiting Toyota.com/recall or nhtsa.gov/recalls and entering their Vehicle Identification Number (VIN).
Symptoms of a Faulty Air Bag Module
- Illuminated SRS or Airbag Warning Light: This is the most common symptom. If the light stays on after starting the vehicle, it indicates a fault within the Supplemental Restraint System. 🎬 Watch: How to reset the airbag warning light The module has detected a problem and has disabled the system.
- Airbags Do Not Deploy in a Collision: This is the most dangerous symptom of a failed module.
- Fault Codes Stored in the System: A diagnostic scan tool can retrieve specific Diagnostic Trouble Codes (DTCs) related to the module or its associated sensors. Common issues include internal module failure or communication errors.
Programming and Replacement Requirements
Replacing an Air Bag Control Module is not a simple plug-and-play operation. These modules are VIN-specific and contain critical configuration data for your exact vehicle.
- Post-Collision Lockout: After any airbag or seatbelt pretensioner deployment, the module records "crash data" and becomes locked. It cannot be reused until this data is cleared by a professional service. A standard OBD-II scanner cannot clear this hard-coded data.
- Programming: A new or used replacement module must be programmed to the vehicle's VIN and specific options. This ensures it communicates correctly with all the sensors and restraint devices in your car. Failure to program the module correctly can render the entire SRS system inoperative.
- Professional Services: While some independent shops with advanced tools can perform this work, it often requires a Toyota dealership or a specialized service that focuses on SRS module resetting. These services can clear crash data from an existing module or program a replacement.
Pro Tip: If your vehicle has been in an accident, it is often more cost-effective to have your original module's crash data cleared by a reputable service than to buy and program a new or used replacement. 🎬 See how a professional airbag module reset is done This guarantees the module is correct for your vehicle's VIN and options.
Buying a Used Air Bag Control Module
Purchasing a used SRS module can be a viable option, but requires extreme caution.
- Verify Part Number: Ensure the part number (89170-0A140 for the 2022 model) matches your original module exactly. Different part numbers exist for later model years or hybrid versions.
- Confirm "No Crash Data": Only buy a module that is guaranteed to be from a vehicle that has not had an airbag deployment. The seller should explicitly state that the module is "virgin" or has had the crash data professionally cleared. A module with crash data is unusable until it is reset.
- Physical Inspection: Check for any signs of physical damage, corrosion from water intrusion, or bent connector pins. Do not buy a module that was in a flood- or fire-damaged vehicle.
- Factor in Programming Costs: Remember that even a perfectly good used module will need to be professionally programmed to your vehicle's VIN, adding to the total cost.
Cost Comparison
| Part or Service | Estimated Cost |
|---|---|
| New OEM Module (Part Only) | $395 - $435 |
| Used OEM Module (Part Only) | $150 - $275 |
| Crash Data Reset Service (Mail-in) | $50 - $100 |
| Shop Labor (Replacement & Programming) | $200 - $400 |
Frequently Asked Questions (FAQ)
Can I reset the airbag light myself by disconnecting the battery?
No. If the light is on due to a fault or stored crash data, disconnecting the battery will not clear it. The fault is stored in non-volatile memory and requires a specialized tool or service to be cleared.
Where is the Air Bag Control Module located on a 2022 Corolla Cross?
On most Toyota models, the Air Bag Control Module is located under the center console, between the front seats, toward the firewall. This central location helps it accurately detect crash forces. Accessing it typically requires removing the center console trim pieces.

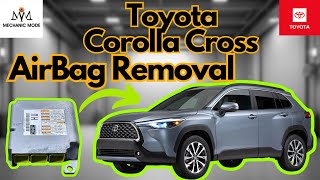

🎬 Watch: How to remove the Corolla Cross airbag moduleIs it legal to use a used airbag module?
Yes, it is generally legal, provided it is the correct part for the vehicle, is free of crash data, and is properly programmed. However, due to the safety-critical nature of this part, many repair shops have policies against installing customer-supplied used SRS components due to liability concerns.
Will a used module from another Corolla Cross work in my car?
Only if it is the exact same part number (89170-0A140) and is professionally reprogrammed for your vehicle's specific VIN. You cannot simply swap a module from one car to another and expect it to work correctly.

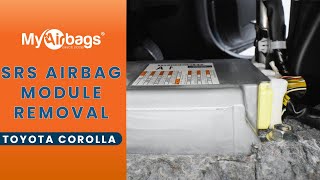

Helpful Videos
Technical Specifications
OEM Part Numbers: 89170-0A140 891700A140
Other Names: Diagnostic Module, Diagnostic Unit, Sensor Assembly Air Bag.
