2019-2022 Subaru Ascent Air Bag Module: Programming and Replacement Guide
This guide clarifies the critical difference between the Air Bag Module and the Body Integrated Unit (BIU) and explains the mandatory programming required for replacement.
- This part (98221XC00A/B) is for the AIRBAGS ONLY, not general body electronics like windows or locks.
- A replacement module MUST be programmed to the vehicle's VIN. A used part will not work without cloning or reprogramming.
- Before buying a used module, you must find a service that can clone the data from your original module onto the replacement.
- A major fire risk recall (NHTSA 22V907000) exists for the 2019-2022 Ascent related to the PTC heater ground bolt, which is separate from this module but a critical safety issue.
Understanding This Part: Air Bag Module vs. Body Integrated Unit (BIU)
It is essential to correctly identify the module you need to replace. The part numbers covered here, 98221XC00A and its replacement 98221XC00B, are for the Air Bag Control Module. This module's only job is to control the airbags. If you are experiencing problems with features like power windows, door locks, wipers, a dead battery from parasitic drain, or the key fob, your issue is likely with the Body Integrated Unit (BIU), which is a separate part. While both require programming, misdiagnosing the faulty module will lead to wasted time and money.
Symptoms of a Failing Air Bag Control Module
Failure of the Air Bag Control Module is typically straightforward and presents a serious safety risk.
- Airbag Warning Light is On: This is the most common and direct symptom. An illuminated SRS or airbag light on your dashboard indicates a fault within the airbag system, and the module is a primary suspect. The system is disabled when this light is on. 🎬 See this guide on how to reset the airbag light
- Failure to Deploy in an Accident: In the most critical failure scenario, the module will not command the airbags to deploy during a collision.
- OBD-II Fault Codes: A scan tool may show specific trouble codes related to the SRS or airbag system. Codes starting with 'B' (Body) or 'U' (Network) are common for module communication failures.
Vehicle-Specific Known Issues, Recalls, and TSBs
While troubleshooting your Ascent, be aware of these major electrical issues affecting the 2019-2022 models. While not all are direct failures of the Air Bag Module, they are critical for any owner to know.
Major Recall: PTC Heater Fire Risk (NHTSA 22V907000)
Warning: A significant safety recall was issued for 271,694 Subaru Ascent vehicles from model years 2019-2022. The issue involves an improperly secured ground bolt for the Positive Temperature Coefficient (PTC) heater. This defect can cause the ground terminal to overheat and melt, creating a serious risk of fire originating from the dashboard or driver's footwell area. Symptoms include smelling smoke or seeing it come from the dash area. If this occurs, owners are advised to immediately stop the vehicle, turn it off, and contact Subaru roadside assistance. Subaru dealers will replace the ground bolts and associated wiring free of charge.
Widespread Issue: Parasitic Battery Drain
Many 2019-2020 Ascent owners have experienced recurring dead batteries. This issue was so prevalent it led to a class-action lawsuit and a warranty extension program from Subaru. The drain can be caused by several factors:
- Data Communications Module (DCM): The DCM (telematics unit) can sometimes fail to enter a 'sleep' mode, causing a continuous power draw as it searches for a cellular signal.
- Power Liftgate: On early models, leaving the liftgate open for extended periods could prevent the vehicle's electronics from going to sleep, draining the battery.
- Faulty Body Integrated Unit (BIU): In some cases, a faulty BIU is the source of the parasitic draw.

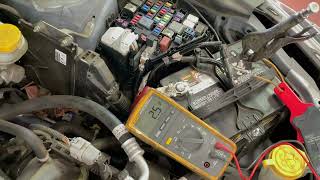

If you have a dead battery, these issues should be investigated before replacing modules. 🎬 Watch: A professional walkthrough for diagnosing Subaru dead battery issues Subaru has issued Technical Service Bulletins (TSBs) to help technicians diagnose the excessive current draw.
Other Service Campaigns
- TCM Recall (WUV-07): Some 2019 Ascent models were recalled for a Transmission Control Module (TCM) issue that could lead to a loss of power. The fix involves reprogramming the module.
- ECM Service Program (WUU-06): Subaru created a service program to reprogram the Engine Control Module (ECM) on 2019-2020 models. A software glitch could cause multiple warning lights for VDC, EyeSight, and RAB to illuminate.
Programming and Installation Requirements
IMPORTANT: You cannot simply swap in a used Air Bag Control Module. The replacement module MUST be programmed to your vehicle's specific Vehicle Identification Number (VIN). Installing a module from another vehicle without programming will result in an inoperative airbag system. The airbag warning light will remain on, and the airbags will not deploy in a crash.
Subaru's various control modules (Air Bag, BIU, ECM, Instrument Cluster) are all synchronized. When one is replaced, this synchronization must be re-established.
Who Can Program the Module?
- Subaru Dealers: A dealer can program a new module to your vehicle using their proprietary Subaru Select Monitor software. However, many dealers will refuse to program a used part that you provide.
- Independent Repair Shops: Some independent shops specializing in automotive electronics may have the J2534 pass-thru devices and software subscriptions needed to perform programming. You must confirm they have the capability for a late-model Subaru SRS module specifically.
- Mail-In Cloning Services: This is often the best option when using a recycled part. You send your original module and the replacement used module to a specialist service. They will copy the VIN and calibration data from your old module to the replacement. The replacement module then becomes a plug-and-play part for your vehicle.
Buying a Used Air Bag Control Module
Buying a used OEM Air Bag Module is a cost-effective option, but you must be careful to ensure compatibility and factor in the cost of programming.
- Match the Part Number: You must match the OEM part number exactly. The original part number is 98221XC00A, which was superseded by 98221XC00B. Either part should work as long as it is programmed correctly.
- Inspect the Part: When you receive the used module, inspect the case for any cracks or signs of being opened. Check the electrical connector pins to ensure they are straight and free of corrosion. Any sign of water damage is a major red flag.
- Verify the Source: Purchase from a reputable auto recycler that offers a warranty. This protects you if the part is dead on arrival.
- Plan for Programming: Before you buy the part, have a plan for programming. Contact local shops or identify a mail-in cloning service and include their fee in your total repair cost.
Replacement Cost Breakdown
Prices can vary by location and supplier. These are estimates as of early 2026.
| Part or Service | Estimated Cost |
|---|---|
| New OEM Module (Part #98221XC00B) | $320 - $480 |
| Used OEM Module | $100 - $200 |
| Shop Labor (Physical Swap) | $120 - $200 |
| Shop Labor (Programming) or Cloning Service | $150 - $300 |
Frequently Asked Questions (FAQ)
What is the difference between the Air Bag Module and the Body Control Module (BCM/BIU)?
The Air Bag Module (part # 98221XC00B) exclusively manages the airbag system. The Body Integrated Unit (BIU), or BCM, controls convenience features like lights, locks, and windows. They are two separate parts in the Subaru Ascent.
Can I replace the Air Bag Module myself?
The physical replacement is relatively simple for a mechanically inclined person. However, the mandatory programming that must be done after installation makes this a job best left to professionals or those who have arranged for a mail-in cloning service.
🎬 Watch: How to remove the SRS airbag control moduleWhat happens if I install a used module without programming it?
The vehicle will likely run, but the airbag system will be completely non-functional. The airbag warning light on the dashboard will stay on, and the airbags will not deploy in a crash, making the vehicle unsafe to drive.
Why won't my dealer program a used Air Bag Module?
Dealers often have policies against installing or programming customer-supplied used parts, especially safety-critical components like an airbag module. They cannot guarantee the history or functionality of the used part and prefer to sell and program a new part for which they can provide a warranty.
Helpful Videos
Technical Specifications
OEM Part Numbers: 98221XC00A 98221XC00B
Also known as Sensing and Diagnostic Module (SDM) or Air Bag Control Unit. Controls the Supplemental Restraint System (SRS).
