2008-2016 Smart Fortwo Body Control (SAM) Module: Water Leaks, Programming, and Replacement
This guide covers common failure symptoms, critical programming requirements, and how to choose the right used SAM unit for your 2008-2016 Smart Fortwo.
- The primary cause of failure is water intrusion from a leaking windshield seal, which corrodes the module's electronics.
- A replacement SAM module, new or used, is NOT plug-and-play. It absolutely must be programmed to the vehicle by a dealer or specialist.
- Symptoms are almost always electrical, including erratic lights, non-functional wipers, power lock/window failure, and even no-start conditions.
- Repairing the original module or cloning a used one are viable alternatives to buying a new unit and paying for dealer programming.
Symptoms of a Failing Smart Fortwo SAM Module
A failing SAM unit can cause a wide range of confusing and seemingly unrelated electrical problems. Because it controls so many different systems, symptoms can vary, but often start intermittently before becoming constant.
- Erratic Lights: Headlights, turn signals, or interior lights may flicker, stay on, or not work at all.
- Wiper and Washer Malfunctions: The windshield wipers may stop working, operate randomly, or not turn off.
- Power Window and Lock Issues: Power windows may become inoperative, and the central locking system might fail, preventing doors from locking or unlocking.

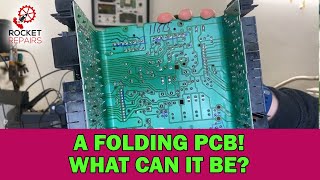

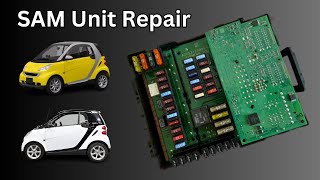

- Instrument Cluster Problems: Warning lights may illuminate on the dashboard, sometimes resembling a 'Christmas tree' effect. 🎬 Watch: See how these warning lights look during a real failure. A common critical failure shows three horizontal lines on the gear display, indicating a communication failure that can prevent the car from selecting a gear. 🎬 See this walkthrough on fixing the common 3-line gear fault.
- Engine Stalling or No-Start: In severe cases, the engine may cut out while driving or the vehicle may fail to start. This can be due to the SAM's role in the vehicle's immobilizer and communication network.
- Communication Faults: Diagnostic scanners may show CAN bus communication errors or be unable to communicate with various control modules. Common codes include P1800 (Implausible transmission data) and other communication-related faults.
Known Issues, TSBs, and Recalls
The Primary Cause of Failure: Water Intrusion
The most common reason for SAM module failure in the 2008-2016 Smart Fortwo is water damage. The SAM unit is located in the driver's side footwell, under the dashboard, making it highly vulnerable to water leaking from a faulty windshield seal. Over time, moisture gets into the module's multi-layered circuit board, causing corrosion on the connectors, traces, and solder joints. This corrosion leads to short circuits and open circuits, causing the various electrical gremlins associated with a failing unit.
Secondary Cause: Cracked Solder Joints
Even without direct water intrusion, the SAM modules are known to develop cracked or 'dry' solder joints over time due to thermal cycles and vibration. These microscopic cracks create intermittent connections, which can explain why symptoms sometimes appear and disappear randomly. Technicians often find failed solder joints on the relays and connector pins inside the unit.
Pro Tip: If you are experiencing intermittent electrical issues, it's wise to check for any signs of dampness in the driver's side footwell carpet. Catching a water leak early can prevent catastrophic damage to the SAM module.
Programming and Immobilizer Requirements
Warning: A replacement SAM module, whether new or used, MUST be programmed to the vehicle after installation. This is not a 'plug-and-play' part.
The SAM module is a critical part of the vehicle's security and immobilizer system. It is 'married' to the Engine Control Unit (ECU), the instrument cluster, and the keys. Because of this, you cannot simply swap a used SAM from another car and expect it to work. The vehicle will likely not start, and many electronic features will be disabled.
Programming involves using a dealer-level diagnostic tool, like a Mercedes STAR Diagnostic System, to code the replacement module to the car's specific VIN and options. While a dealership can always perform this service, some independent shops specializing in European vehicles may have the necessary equipment. Another option is to use a mail-in cloning service. This involves sending your original (faulty) module and a compatible used replacement to a specialist who will copy the data from your old unit to the new one, making it plug-and-play upon return.
Buying a Used Body Control Module
Given the high cost of a new module from a dealer, a used OEM unit is often the most practical solution. However, it's crucial to buy the right part and inspect it carefully.
- Match Part Numbers Exactly: The part number on the replacement SAM must be identical to your original. There are many different versions based on year, model, and options. Do not rely on visual similarity alone.
- Inspect for Water Damage: Carefully examine the pins on all connectors. Look for any signs of green or white corrosion, which is a clear indicator of water intrusion. If the casing shows any signs of water stains or warping, it's best to avoid that unit.
- Check Compatibility Notes: Be aware of specific production date cutoffs. For example, on 2012 models, compatibility can depend on whether the vehicle was produced before or after March 19, 2012. Also, note that 2011-2012 models have SAMs that control the knee airbags, and 2016 modules may be specific to the electric (EV) version.
- Plan for Programming: Remember to factor in the cost and logistics of programming. Before you buy a used module, have a plan for who will program it—a dealer, an independent specialist, or a mail-in cloning service.
Cost Breakdown
The cost to replace a Smart Fortwo SAM module can vary significantly based on the parts source and labor.
| Item | Estimated Cost |
|---|---|
| New OEM Module | $180 - $250 |
| Used OEM Module | $40 - $100 |
| Module Repair/Cloning Service | $125 - $450 |
| Shop Labor (Installation & Programming) | $150 - $300 |
Note: Prices are estimates and can vary based on location, supplier, and vehicle specifics. Shop labor does not include diagnostic time.
Frequently Asked Questions (FAQ)
What is a SAM module?

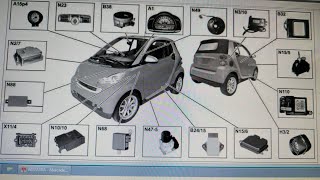

SAM stands for Signal Acquisition and Actuation Module. In the Smart Fortwo, it's the official name for the Body Control Module (BCM). 🎬 Watch: A helpful guide to module locations and how they communicate. It's the central computer that controls most of the car's electrical systems, like lights, wipers, locks, and windows.
Can I install a used SAM module myself?
You can physically install the module yourself, as it is accessible in the driver's footwell after removing a few panels. However, the car will not function correctly until the module is professionally programmed to your vehicle's VIN and security system.
Why did my SAM module fail?
The most common cause of failure is water leaking into the car, typically from the windshield seal, and dripping onto the module. This causes corrosion and short circuits. The second most common cause is the development of cracked solder joints from age and heat cycles.
Can my original SAM module be repaired?
Yes, in many cases. If the failure is due to cracked solder joints or minor water damage, specialists can often repair the circuit board. This can be a cost-effective option that avoids the need for programming, as the original data is retained.
Will the car start after I swap in a used SAM?
No, it is highly unlikely to start. The SAM is part of the immobilizer system and is coded to the original car's keys and engine computer. A direct swap will result in a security mismatch, preventing the engine from starting until the replacement unit is properly programmed.
Helpful Videos
Technical Specifications
OEM Part Numbers: 4518200126 4519003501 A4518200126 4515401550 4515402250 4519001802 4519005201 4519007201 4519008100 4519009400 4519061300
Location: Driver's side footwell, under the dashboard.
