Mercedes Central Gateway Module Failure: 2008-2013 C, E, GL, ML-Class & More

Common Symptoms of a Failing Central Gateway Module

A failing Central Gateway Module (CGW) can cause a wide and confusing range of electrical problems. Because it's the communication hub, its failure can make it seem like multiple unrelated parts have broken at once. The vehicle may still start and run, but many systems will be offline or behave erratically.

Key Failure Indicators:

• No Communication with OBD-II Scanner: One of the most definitive symptoms is when a diagnostic scanner cannot communicate with the vehicle or can only see a few modules. This is because the CGW is the entry point for the scanner.
• Multiple Warning Lights: The instrument cluster may light up with numerous warnings simultaneously, such as for the SRS/Airbag, ABS, Check Engine, and brake systems.
• Systems Stop Working: Various electronic features may suddenly stop functioning. This can include power seats, wipers, turn signals, the radio/COMAND unit, sunroof, or the rear liftgate.
• Vehicle Dies While Driving: In some cases, a complete failure of the CGW can cause the engine to shut off while driving and prevent it from restarting.
• Erratic Behavior: Systems may turn on and off by themselves, such as wipers activating randomly or the radio rebooting.

What Causes the CGW to Fail?

The most common cause of failure is water damage. Depending on the vehicle model, the CGW can be located in areas prone to water intrusion, such as the passenger footwell or under a seat. Clogged sunroof drains or a bad windshield seal can allow rainwater to pool in the cabin, shorting out the module and corroding its connectors. Internal hardware or software defects can also cause failure, though this is less common.

Diagnosing the Central Gateway Module

If you suspect a CGW failure, the first step is a full vehicle scan with a Mercedes-specific diagnostic tool (like Xentry/DAS or a high-end aftermarket scanner). Look for "No Communication" errors with multiple modules or specific fault codes pointing to the CGW itself.

Common Fault Codes:

• U103888: Central gateway malfunction - CAN-Bus OFF.
• U103811: Communication with the diagnostic CAN bus has a malfunction. There is short circuit to ground.
• Various codes indicating low voltage or communication loss with specific modules.

A visual inspection is also critical. You will need to locate the module and check for any signs of green or blue corrosion on the pins and connectors, which is a clear sign of water damage.

Location by Vehicle:

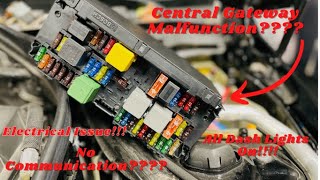

• C-Class (W204): The gateway function is integrated into the Front SAM (Signal Acquisition and Actuation Module) located in the engine bay fuse box on the driver's side. It is not a separate module.
• E-Class (W212): Located in the front passenger footwell, under the carpet. You may need to peel back the carpet to access it.
• ML-Class (W164) / GL-Class (X164) / R-Class (W251): Found under the front driver's seat, beneath the carpet.

Always verify the location for your specific model and year, as it can vary.

Buying a Used Central Gateway Module

Buying a used CGW is a cost-effective option, but it is not a simple plug-and-play replacement. This is the most critical part of the process to understand.

Compatibility and Part Numbers

You must match the part number exactly. The part number is printed clearly on the module's label. Using a module with a different part number will not work. The main part number for this group of vehicles is often based on the A2049000300 series, but many other numbers were used. Always use the number from your original part to find a replacement.

Why Programming is Required

The Central Gateway Module is a "theft-relevant" part that is coded specifically to the vehicle it was installed in at the factory. It stores the vehicle's VIN, mileage, and service history. You cannot simply install a used CGW from another car because:

1. The VIN stored in the used module will not match your vehicle's VIN.
2. The mileage and service data will be incorrect.
3. The module's programming for specific vehicle options (like air suspension or keyless entry) will not match your car.

A Mercedes-Benz dealer will typically refuse to program a used control module. They will only program a brand new one purchased from them.

Cloning: The Solution for Used Modules

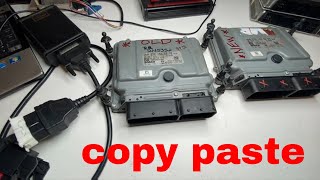

The correct way to use a used CGW is to have it "cloned." This involves using specialized tools to read the data from your original (even if it's water-damaged) module's memory chip and write it onto the used replacement module. This makes the replacement module an exact electronic copy of your original.

• If your original module can still be read: A specialist can transfer all data (VIN, mileage, coding) to the donor module. This is the ideal scenario.
• If your original module is destroyed (e.g., burnt or completely unreadable): A specialist may still be able to help. They can make the used module "virgin" (like new) and then program it to your car using data from your ignition switch (EIS) and key.
🎬 Watch: How to restore data when the original module is unreadable.

This cloning service is offered by many independent automotive electronics specialists. You typically mail both your original module and the used replacement to them.

Cost to Replace a Central Gateway Module

Costs can vary significantly based on the path you choose. Labor for removal and reinstallation is typically 1-2 hours.
