2014-2018 Ford Transit Connect BCM: Decoding Failures, Programming, and Part Number Confusion
This in-depth guide clarifies common electrical failures, demystifies the mandatory programming process, and explains the critical difference between the BCM and the Air Bag Control Module.
- This part is NOT plug-and-play. It requires mandatory programming and key relearning by a Ford dealer or a specialized shop with Ford's IDS/FDRS software.
- Do NOT confuse the Body Control Module (BCM) with the Air Bag Control Module (RCM). They are different parts with similar-looking numbers. Verify your original part number.
- A failing BCM is a common cause of parasitic battery drain, erratic electrical behavior, and no-start conditions related to the anti-theft system.
- Before buying a used BCM, confirm that a local shop is willing and able to program a customer-supplied used module, as some will refuse.
Symptoms of a Failing Body Control Module
A failing BCM in a Ford Transit Connect typically causes a wide range of strange and seemingly unrelated electrical problems. Because the BCM controls so many different systems, symptoms can be confusing. One of the most common signs is a parasitic battery drain that kills the battery overnight. 🎬 Watch: Diagnosing a frustrating parasitic battery drain Owners may find that pulling a specific fuse related to the BCM stops the drain, temporarily confirming the module is the source of the problem.
- Erratic Electronics: Lights (interior or exterior) staying on or not working, power locks or windows operating on their own, or the horn randomly sounding.
- Instrument Cluster Problems: The entire dashboard display may go dark intermittently, gauges may stop working, or warning lights may appear for no reason.
- No-Start Condition: Because the BCM is linked to the Passive Anti-Theft System (PATS), a faulty module can prevent the vehicle from starting.
- Communication Faults: A mechanic with a diagnostic scanner may find "U" codes, such as U0140, which indicate a loss of communication with the BCM.
Critical: BCM vs. Air Bag Module Confusion
It is extremely important to distinguish between the Body Control Module (BCM) and the Air Bag Control Module (also called the Restraints Control Module or RCM). Many online sellers incorrectly label Air Bag Modules as BCMs.
- The BCM part numbers often look like DV6T-14A073-UM or F1DT-14A073-DF and it is typically integrated with the interior fuse box. It controls lights, locks, and windows.
- The Air Bag Control Module part numbers look like DT1T-14B321-K_ or DT1Z-14B321-G. This module ONLY controls the airbag system. It is often specific to Long Wheelbase (LWB) models with 3-row curtain airbags. Installing the wrong one or a faulty one will disable the safety system.
Always match the part number from your original module exactly. Ordering a part described as a "BCM" using an Air Bag Module part number will result in you getting the wrong part.
Known Issues, TSBs, and Recalls
Ford has issued several technical service bulletins (TSBs) and recalls related to the BCM and its programming for this generation of Transit Connect.
- Recall 23C35 / NHTSA 23V727: A recall was issued because a software error in the BCM could prevent the brake fluid warning light from illuminating. The fix is a free software update performed by a Ford dealer.
- TSB SSM 47703 / 47749: This bulletin addresses a situation where a newly installed service BCM may not power on or cannot be programmed. The procedure advises technicians to inspect the BCM for the presence of fuse F88. This is a crucial check if you are installing a replacement module and it appears to be dead.
- Customer Satisfaction Program 16B10: For 2015-2016 models, some vehicles had a BCM misconfiguration that caused the rear camera zoom feature to be inoperative. The fix involved reconfiguring the BCM using dealer diagnostic tools.
Buying a Used Body Control Module
Buying a used BCM can save you a significant amount of money, but it is not a simple plug-and-play part. Success depends entirely on proper programming.
- Verify the Part Number: This is the most important step. You must match the engineering number (e.g., F1DT-14A073-DF) on your original BCM. Do not rely on sales descriptions alone.
- Physical Inspection: When you receive the used BCM, inspect it carefully. Look for any signs of corrosion on the pins, water damage to the case, or cracks. Water intrusion is a common cause of electronic module failure.
- Understand Programming is Mandatory: A used BCM will not work correctly until it is programmed to your van's specific VIN and configuration. The vehicle will likely not start, and numerous systems will be inoperative until this is done.
- Secure a Programmer FIRST: Before you even buy the part, call your local Ford dealer or a qualified independent shop that has Ford's IDS/FDRS software. Confirm they are willing and able to program a customer-supplied used module. Some shops refuse. Expect to pay for 1-2 hours of labor for programming.
Pro Tip: When replacing the BCM, you will need at least two original, non-cloned keys for the PATS anti-theft system relearn procedure. If you only have one key, you will need to have a second one made before the programming can be completed.
Replacement & Programming Overview
The BCM is typically located under the dashboard, near the steering column, and is often part of the main interior fuse box assembly.
The replacement process requires professional-level tools and knowledge. It is not a simple DIY job for most home mechanics due to the software requirements.
- Data Transfer (If Possible): A technician will first connect their diagnostic tool (Ford IDS/FDRS) to the vehicle with the old BCM still installed. They will use a function called "Programmable Module Installation" (PMI) to save the vehicle's configuration data, known as "As-Built" data.
- Module Installation: The old BCM is removed and the replacement unit is installed.
- Data Restoration: The technician then writes the saved As-Built data to the new module.
- Parameter Reset & Key Relearn: This is the final, critical step. The technician performs a "Parameter Reset" to sync the newly installed BCM with the vehicle's other computers, like the engine control module (PCM). They will then erase and relearn the vehicle's keys to the new BCM. The van will not start until this security handshake is complete. 🎬 See the full replacement and parameter reset process
Cost Comparison
Replacing the BCM can be expensive, primarily due to the cost of the part and the specialized labor for programming.
| Part/Service | Estimated Cost |
|---|---|
| New OEM BCM | $400 - $600 |
| Used OEM BCM | $75 - $200 |
| Shop Labor (Physical Install) | $100 - $200 |
| Shop Labor (Programming) | $150 - $400+ |
| Total Dealer Replacement | $800 - $1400+ |
Frequently Asked Questions (FAQ)
Does a used BCM need to be programmed?
Yes, absolutely. A BCM for a 2014-2018 Transit Connect is not a plug-and-play part. It must be professionally programmed to your vehicle's VIN and specific options using dealer-level software like Ford IDS or FDRS. The vehicle will not start or run correctly without this step.
Can I program the BCM myself with FORScan?
While FORScan is a powerful tool, programming a BCM is very risky for a DIYer. You may be able to copy the As-Built data, but completing the PATS key relearn procedure (Parameter Reset) often requires a licensed subscription to Ford's security services that is not available to the public. Attempting this without proper knowledge can "brick" the module and leave your vehicle completely immobilized, requiring a tow to the dealer.
Why won't my van start after installing a new BCM?
The van won't start because the BCM is a key part of the Passive Anti-Theft System (PATS). The new module has not been introduced to the other computers in the vehicle, and your keys are not registered to it. It requires a "Parameter Reset" and key programming procedure to be performed by a technician with the proper diagnostic tool.
What's the difference between a BCM and the part number DT1Z-14B321-G?
The part number DT1Z-14B321-G is for the Air Bag Control Module, not the Body Control Module. The BCM controls lights, locks, and windows. The Air Bag module controls the airbags. They are two separate parts that are often confused. Always match the number on the module you are actually replacing.

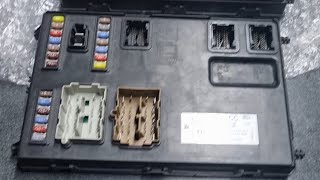

Helpful Videos
Technical Specifications
OEM Part Numbers: DV6T-14A073-UM F1DT-14A073-DF
Integrates with the interior fuse panel. Controls body electronics such as lights, locks, windows, and wipers. Linked to the vehicle's PATS anti-theft system.
