1999-2004 Ford Mustang GEM Module: Fixing Water Leaks & Electrical Gremlins
Learn to diagnose, replace, and understand the programming needs of the Generic Electronic Module (GEM) in your SN95 Mustang, and most importantly, how to prevent the common water leaks that destroy it.
- The #1 cause of GEM failure is water damage from a leaking windshield seal or clogged cowl drains. You must fix the leak before replacing the module.
- When buying a used GEM, you must match the part number exactly and try to find one from a vehicle with identical options (coupe/convertible, etc.).
- A replacement GEM needs to be programmed to the vehicle's VIN for all features to work correctly. The car will start without programming, but functions like windows or locks may not work.
- Symptoms are almost always electrical and intermittent, including erratic wipers, battery drain from interior lights, and non-working power windows/locks.
The #1 Killer of Mustang GEM Modules: Water Intrusion
The single most common cause of GEM failure in the 1999-2004 Ford Mustang is water damage. This is not due to a faulty part, but a design issue where water leaks into the cabin from the outside and drips directly onto the GEM and fuse box. Over time, this moisture corrodes the module's circuit board and connectors, leading to short circuits and system failures.
These leaks typically originate from two main areas:
- Windshield Seals: A poorly sealed or failing windshield allows water to seep in, run down the A-pillar (the metal pillar on either side of the windshield), and get behind the dashboard. Ford issued a Special Service Message (SSM #15773) acknowledging that windshield leaks could cause water intrusion into the GEM and Central Junction Box.
- Cowl Vents: The plastic cowl panel at the base of the windshield has drains that can become clogged with leaves and debris. 🎬 See how to clean and replace your cowl vent grille. When these drains back up, water can overflow and find its way into the cabin's fresh air intake or other openings, eventually reaching the electronics. While many TSBs for cowl leaks reference the 2005 and newer models, the principle remains the same for the 1999-2004 generation.
Pro Tip: Before replacing a faulty GEM, you MUST find and fix the water leak. 🎬 Watch this video to find and fix common convertible leaks. If you install a new or used module without addressing the source of the water, the replacement part will quickly fail for the same reason.
Symptoms of a Failing 1999-2004 Mustang GEM Module
Because the GEM controls so many different functions, a failure can present itself in many ways. Often, the symptoms are intermittent and seem unrelated. Common signs of a bad GEM include:
- Erratic Wipers: Windshield wipers may turn on by themselves, refuse to turn off, or operate at the wrong speed.

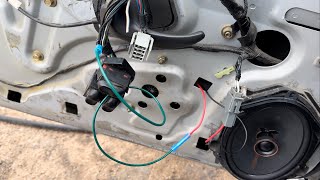

- Power Window and Lock Problems: Windows may not roll up or down, or the one-touch-down feature for the driver's side may stop working. Power locks may operate randomly or not at all.
- Interior Lighting Issues: The dome light may stay on continuously, draining the battery, or not turn on when the doors are opened.
- Battery Drain: A shorted GEM can create a parasitic draw that drains the battery when the car is parked.
- Warning Chimes and Lights: You might hear random chimes or see warning lights on the dash flicker without reason.
- Key Fob Inoperable: The remote keyless entry system may stop responding.
Associated OBD-II Codes
A standard OBD-II scanner may not be able to communicate with the GEM. An advanced scanner is often needed to pull body-related codes (B-codes) or communication codes (U-codes). Some potential codes related to GEM failure include P1882 (Engine coolant level switch circuit short to ground) and P1883 (Engine coolant level lamp switch circuit failure, GEM), which indicate circuit failures within the module.
Buying a Used Body Control Module
Due to new parts being discontinued or hard to find, a quality used OEM module is often the best choice. However, compatibility is critical.
- Match Part Numbers Exactly: The most important rule is to match the engineering part number on your original GEM with the replacement. Part numbers can vary by year and options. Common part numbers include XR3Z-14B205-AA, YR33-14B205-AA, and 1R3F-12B577-AA.
- Match Vehicle Options: For the best chance of a simple swap, find a module from a donor vehicle with the exact same options as yours (e.g., coupe vs. convertible, V6 vs. GT, manual vs. automatic). The GEM is programmed for the car's specific features.
- Inspect for Corrosion: When buying a used module, carefully inspect the electrical pins and connectors. Any sign of green or white crusty corrosion is a major red flag that it has suffered water damage. Do not buy a corroded module.
Programming and Installation
This is the most common question for buyers. For a 1999-2004 Mustang, the answer is nuanced:
- Does it need programming? Yes, for 100% correct functionality, a replacement GEM should be programmed. A Ford dealer or a well-equipped independent shop can use a scan tool to download your vehicle's original "as-built" data (based on the VIN) and upload it to the replacement module. This ensures all options work correctly.
- Will the car start without programming? Yes. The Mustang's Passive Anti-Theft System (PATS) is controlled by the Powertrain Control Module (PCM), not the GEM. A GEM swap will not prevent the engine from starting.
- What happens if I don't program it? If you install a used GEM from a car with different options, some features may not work. For example, the windows on a convertible may not operate correctly if you use a GEM from a coupe. However, if you find a module from an identical car, it may work perfectly without any programming.
- Can I program it myself? Reprogramming key fobs for remote entry can be done at home by cycling the ignition key. However, programming the module's core functions requires professional-level tools like Ford's IDS or a capable J2534 programmer.
Warning: While some online sellers claim their modules are "Plug and Drive" and require no programming, this is only true if the module happens to have the exact same programming as your original. It is always best to assume programming will be necessary for full functionality.
Cost to Replace a 1999-2004 Mustang GEM Module
Prices can vary based on availability and condition. Here are some typical cost ranges:
| Part Type | Estimated Cost |
|---|---|
| New OEM | $400 - $550+ (Largely discontinued and very hard to find) |
| New Aftermarket | Not commonly available |
| Used OEM | $50 - $150 |
| Remanufactured | $145 - $250 |
| Shop Labor | $100 - $200 (for diagnosis and physical replacement) |
| Dealer Programming | $100 - $175 (typically one hour of labor) |
Frequently Asked Questions (FAQ)
Where is the GEM module located on a 1999-2004 Mustang?
The GEM is attached to the back of the interior fuse panel, located in the driver's side footwell, to the left of the steering column and above the emergency brake pedal. You will likely need to remove the lower dash panel to access it.
🎬 Watch this step-by-step guide on how to replace the GEM.Will a bad GEM module prevent my Mustang from starting?
No, typically it will not. The engine immobilizer (PATS) is controlled by the PCM, not the GEM. However, in rare cases, a severely shorted GEM could cause network communication issues or blow a critical fuse that might result in a no-start condition.
Can I just clean my water-damaged GEM module?
Sometimes, if the corrosion is minor, you can open the module's case and clean the circuit board with electronics cleaner and a soft brush. This can be a temporary fix, but often the damage is too extensive or corrosion has occurred between layers of the circuit board. Replacement is the only reliable, long-term solution.
Do I need to disconnect the battery before replacing the GEM?
Yes. It is critical to disconnect the negative battery terminal before unplugging or plugging in any electronic module. Failure to do so can cause a voltage spike that damages the replacement GEM or other electronics in the vehicle.
Helpful Videos
Technical Specifications
OEM Part Numbers: XR3Z-14B205-AA XR3Z-14B205-AB YR33-14B205-AA YR33-14B205-AB YR33-14B205-AD YR33-14B205-AG 1R3F-12B577-AA
The Generic Electronic Module (GEM) is integrated with the Central Junction Box (interior fuse panel) and controls various body-related electrical functions.
