2021-2023 Ford Bronco Transfer Case Module: Decoding 4x4 Faults and Programming Needs
This guide explains common 'Check 4x4' warnings, why the Transfer Case Control Module (TCCM) fails, and the critical programming steps required for replacement.
- This part is the Transfer Case Control Module (TCCM), not the Body Control Module (BCM).
- A replacement TCCM (new or used) absolutely requires programming to the vehicle's VIN using Ford's FDRS software; it is not plug-and-play.
- Before replacing the module, inspect wiring harnesses for damage (especially near the driveshaft) and check electrical connectors for a secure fit.
- Symptoms include 'Check 4x4' warnings, unavailable G.O.A.T. modes, and being stuck in a specific 4WD setting.
Is This the Same as the Body Control Module (BCM)?
No, this is a common point of confusion. The part discussed here is the Transfer Case Control Module (TCCM), sometimes called the 4WD Control Module. It specifically manages the four-wheel-drive system. The Body Control Module (BCM) is a separate, more central computer that controls functions like interior and exterior lights, power windows, and door locks. While these modules communicate with each other, they are distinct parts with different functions.
Symptoms of a Failing 2021-2023 Bronco TCCM
When the TCCM begins to fail, you will likely see warnings on your dashboard and notice issues with the 4x4 system. Because the module is integrated with other vehicle systems, a TCCM fault can sometimes disable other features as well.
- 'Check 4x4' or '4WD Fault Service Required' Message: This is the most common indicator of a problem within the 4x4 system. 🎬 Watch: Troubleshooting steps for the Ford 4WD Fault warning.
- 'Powertrain Malfunction / Reduced Power' Warning: The vehicle may enter a limp mode to prevent further damage when a serious fault is detected.

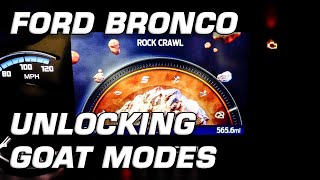

- G.O.A.T. Modes Unavailable: You may be unable to switch between driving modes, or you might receive a 'Drive Mode Preconditions Not Met' error. 🎬 Watch: A guide to using and unlocking Bronco GOAT modes.
- Stuck in 2H, 4H, or 4A: The system may become unresponsive, leaving the vehicle stuck in whatever mode it was in when the fault occurred.
- Loss of Other Features: Some owners report that a 4x4 fault can also temporarily disable features like anti-lock brakes (ABS), cruise control, and parking sensors as a safety precaution.
An OBD-II scanner capable of reading Ford-specific codes can help pinpoint the issue. Look for codes stored in the TCCM, PCM (Powertrain Control Module), or BCM. Common codes associated with TCCM failures include:
- B1485: Control Module Fault
- U0415: Invalid Data Received From Anti-Lock Brake System Control Module
- P18xx Codes: This range of codes often relates to transfer case circuits, switches, and motors (e.g., P1838, P1876).
Pro Tip: Before condemning the module, check the wiring. Forum members on Bronco6G have reported that a wiring harness can sometimes rub against the rear driveshaft, causing wires to fray and short out. Also, check all related electrical connectors for looseness or corrosion, as this can mimic a module failure.
Programming is Required: The #1 Buyer Concern
Warning: A replacement Transfer Case Control Module, whether it is brand new from a dealer or a used OEM part, MUST be programmed to your vehicle's specific VIN and configuration. It is not a plug-and-play part.
This process is called Programmable Module Installation (PMI). If the old module is still able to communicate, the technician can copy its configuration data and load it onto the new module. If the old module is dead, the technician will download the vehicle's original 'as-built' data from Ford's servers and install it on the replacement part.
This programming requires a Ford-specific diagnostic tool, such as the Ford Diagnostic & Repair System (FDRS). 🎬 See how to use FDRS for programming in your driveway. Most DIY tools like basic OBD-II scanners and even the advanced FORScan software may not be able to perform the PMI procedure on a vehicle this new. You will almost certainly need to have the programming performed by a Ford dealership or a well-equipped independent repair shop that subscribes to Ford's software.
Buying a Used 2021-2023 Bronco TCCM
Purchasing a used TCCM is a great way to save money, but it's important to buy smart. Since programming is required regardless, the primary goal is to get a good, working piece of hardware.
- Match the Part Number: Verify the OEM part number on your original module and match it exactly. The primary part number for this generation is MB3Z-7P238-D, which supersedes older numbers like MB3A-7P238-FA.
- Inspect the Connectors: Look for any signs of corrosion, bent pins, or physical damage to the plastic housing and connector ports. Water intrusion is a potential, though not widely reported, failure mode for modules mounted under the vehicle.
- Factor in Programming Costs: Remember that the price of the used module is not your final cost. Call a local dealership or qualified shop and get a quote for programming a customer-supplied module. Expect to pay for 1-2 hours of labor.
- Buy From a Reputable Source: Purchase from a seller that offers a warranty and a return policy. This protects you in case you receive a non-functional part.
Replacement Cost Breakdown
Prices can vary by location and supplier, but this table provides a general estimate of what to expect.
| Part or Service | Estimated Cost | Notes |
|---|---|---|
| New OEM TCCM | $400 - $820 | MSRP is high ($820), but online Ford parts dealers often sell it for around $410. |
| Used OEM TCCM | $150 - $250 | Based on typical pricing for late-model used modules on sites like eBay. |
| New Aftermarket TCCM | Not Commonly Available | As of early 2026, aftermarket options for this specific new model are not widely available. |
| Shop Labor (Installation & Programming) | $250 - $400 | Includes ~0.5 hr for physical replacement and 1-1.5 hrs for the required PMI programming. |
Frequently Asked Questions (FAQ)
Can I install a used TCCM myself and drive to the dealer for programming?
Yes. The physical replacement is straightforward for someone with basic mechanical skills. After installation, the 4x4 system will not function correctly until it is programmed, but the vehicle should be drivable. You will likely have warning lights on the dash during your trip to the dealer.
Will a used TCCM from a Bronco with the same options work without programming?
No. The module is tied to the specific VIN of the vehicle it came from. Even if the donor vehicle is identical, the module must be wiped and reprogrammed with your Bronco's VIN and as-built data to communicate properly with the other computers in your vehicle.
Where is the TCCM located on a 2021-2023 Ford Bronco?
The Transfer Case Control Module is typically mounted on the vehicle's frame or underbody, near the transfer case itself, to allow for a short wiring run to the transfer case shift motor.
Is a TCCM failure covered under the powertrain warranty?
This can be a gray area. Some dealers consider the module an 'electrical part' which is only covered by the 3-year/36,000-mile bumper-to-bumper warranty. Others may cover it under the 5-year/60,000-mile powertrain warranty since it directly controls a core powertrain component. If you are near the warranty boundary, it is best to clarify with your dealer.
Helpful Videos

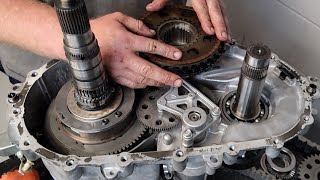

Technical Specifications
OEM Part Numbers: MB3Z-7P238-D MB3A-7P238-FA MB3A7P238FA MB3Z7P238D
Controls the electronic shift-on-the-fly transfer case. Communicates on the vehicle's CAN bus network.
