2012-2017 Fiat 500 Body Control Module: Decoding Failures, Programming, and Proxy Alignment

Symptoms of a Failing Fiat 500 Body Control Module

A bad BCM in a 2012-2017 Fiat 500 can cause some very specific and frustrating electrical issues. Because the BCM controls so many different systems, symptoms can be varied and appear random. A failing battery can also cause similar electrical problems, so always test your battery and charging system before condemning the BCM.

Common Failure Symptoms:

• Headlights Stuck On or Not Working: This is one of the most common and specific symptoms for this BCM. One or both headlights may stay on after the car is turned off, draining the battery, or they may not turn on at all. This is often caused by a failed internal relay on the BCM's circuit board.
• Flashing Odometer: If you see the mileage on your dashboard constantly blinking, it's a tell-tale sign of a communication breakdown on the car's computer network (CAN bus). This almost always means a "Proxy Alignment" is needed, which can be triggered by a failing or improperly replaced BCM.
• Random Warning Lights: You may see warning lights for the Electronic Stability Control (ESC), ABS, or other systems appear on the dash, even if those systems are mechanically sound.
• Inoperative Electronics: Power windows may not open or close, door locks may become unresponsive, turn signals might not work, and the horn may fail.
• Battery Drain: If a component like a headlight is stuck on due to a faulty BCM, it will drain the battery overnight.
• No-Start or Immobilizer Issues: The BCM is linked to the car's anti-theft system. A severe failure can result in a no-start condition or an "Invalid SKIM Key" error (DTC P0513), which indicates the BCM is locked or cannot recognize the key.

The Critical Importance of "Proxy Alignment"

You cannot simply swap a Body Control Module in a Fiat 500 and expect it to work. When a new or used BCM is installed, the vehicle's network must be updated to recognize the new module. This process is called a Proxy Alignment or Proxi Configuration.

Think of it as introducing a new person to a group; all the existing members (the other computers in the car) need to be formally introduced to the newcomer (the BCM) so they can communicate. If this procedure is not performed, you will experience issues like a flashing odometer, and various electronic features will not work correctly.

Who Can Perform a Proxy Alignment?

• Fiat Dealerships: Dealers have the proprietary wiTECH scan tool and can perform this procedure.
• Independent Shops: Many independent repair shops have high-end professional scan tools (from brands like Snap-on, Autel, or Topdon) that are capable of performing a Proxy Alignment on Fiat vehicles.
• DIY Mechanics: This is generally not a DIY-friendly task unless you have access to one of the aforementioned professional-grade scan tools. Standard consumer OBD-II code readers cannot perform this function.

Known Issues, TSBs, and Recalls

While there are no direct safety recalls for the BCM itself on the 2012-2017 Fiat 500, its failures are well-documented among owners and mechanics.

• TSB 08-122-15 (2016 Models): Fiat issued a Technical Service Bulletin that involves updating the Body Control Module (BCM) software to address unspecified issues.
• TSB S2208000073 (Relevant to 2018+ but shows pattern): For later models, a TSB was issued for a no-start condition and DTC P0513 (Invalid SKIM Key), which is directly related to BCM communication.
• Common Failure Point: The most widely reported failure is for the internal headlight relays, leading to headlights that won't turn off. 🎬 Watch: How to diagnose and repair faulty headlight relays. This has led to a robust market for mail-in repair services that specifically target this issue.

Buying a Used Body Control Module

A used BCM can be a cost-effective solution, but you must be aware of the programming requirements. Given the complexities, many buyers opt for a repair service for their original module.

Option 1: Repair Your Original BCM (Recommended)

Multiple companies specialize in repairing the original BCM. You remove your module, mail it to them, and they repair the internal faults (like the faulty headlight relays) and send it back.

• Pro: This is typically a plug-and-play solution. Since all the original programming and vehicle data is retained, no Proxy Alignment is needed upon reinstallation.
• Con: Your vehicle will be down for several days while the module is in transit and being repaired.

Option 2: Buy a Used BCM

If you choose to buy a used BCM, follow these steps to ensure compatibility:

1. Match the Part Number: There are many different BCM part numbers for the Fiat 500. It is critical to match the OEM part number exactly. The number is printed on a sticker on the module's case. Verified numbers include 68073618AE, but many others exist like 68184342AD, 68077760AH, and 68248991AB.
2. Budget for Programming: You MUST factor in the cost of having a dealer or qualified independent shop perform a Proxy Alignment. Call around for quotes before you buy the part.

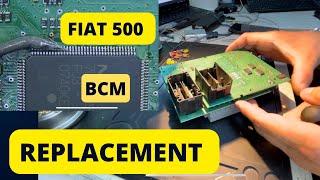

3. Consider a Cloning Service: Some specialists can "clone" your original BCM's data onto the used replacement unit. This makes the used part plug-and-play, similar to a repair, and avoids the need for a Proxy Alignment.

Cost to Replace the Fiat 500 BCM

Costs can vary significantly based on which solution you choose. Labor for removal and reinstallation is typically 1-2 hours.
