2004-2010 Audi A8 & S8 (D3) J393 Module Failure: A Guide to Component Protection, Replacement, and Programming

Understanding the Audi D3 Body Control System: J393 vs. J519

When diagnosing electrical problems in a 2004-2010 Audi A8 or 2007-2009 Audi S8, it's important to know that there isn't one single "Body Control Module." Functions are split between several units. This guide focuses on the most common source of major electrical failures:

• J393 - Comfort System Central Control Module: This is the brain for security and convenience. Located in the right side of the trunk, it manages the immobilizer, key recognition, door locks, and alarm. Failure often results in a no-start condition or severe security system glitches.
• J519 - Vehicle Electrical System Control Module: Located under the dashboard, this module handles different tasks like headlights, wipers, and the horn. While it can fail, it typically won't prevent the car from starting.

Most widespread, confusing electrical problems that include a no-start condition or key recognition issues trace back to a faulty J393 module.

Symptoms of a Failing J393 Comfort Control Module

A failing J393 module can cause a wide range of seemingly unrelated problems as it loses communication with other parts of the car. A weak or old battery can cause similar issues, so always test and confirm your battery is healthy before condemning the module.

• No-Start or Key Not Recognized: The most serious symptom is the car refusing to start, often with a "Key not detected" or "Engine Start Blocked by Immobilizer" message on the dash.

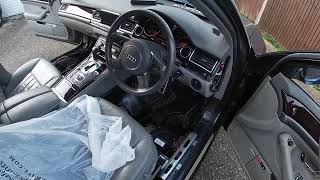

🎬 Watch: Diagnosing a no-start condition on an Audi A8 D3
• Parasitic Battery Drain: The module may fail to go to sleep when the car is off, draining the battery overnight.
• Erratic Door Locks and Alarm: The central locking may not work with the remote, or the factory alarm may go off randomly.
• Flickering or Inoperative Lights: Interior dome lights, door lights, or rear tail lights may flicker or stop working entirely.
• Multiple Warning Lights: A failing J393 can cause a cascade of fault messages and warning lights on the instrument cluster as other modules report a loss of communication.
• Associated Fault Codes: A scan with a proper diagnostic tool like VCDS will often show codes such as 01330 - Central Control Module for Central Convenience (J393): Faulty, 01336 - Data Bus for Comfort System: Faulty, or various U-series (communication) codes.

The #1 Challenge: Audi Component Protection (CP)

You cannot simply swap a J393 module from one car to another. All D3-platform A8 and S8 models use an anti-theft system called Component Protection (CP). This system electronically locks major control modules to the vehicle's original VIN.

If you install a replacement J393 module (either new or used), Component Protection will be active. This will severely limit its function—the car will not start, and many convenience features will be disabled. Removing this protection is a mandatory step for any replacement.

There are two primary methods to correctly install a replacement J393 module:

1. Dealer Programming (ODIS): An Audi dealer or a qualified independent specialist with an official ODIS (Offboard Diagnostic Information System) subscription can adapt the replacement module to your car. This process involves connecting the vehicle to Audi's servers in Germany to verify the part and authorize its marriage to your car's VIN. This is the official factory procedure.
2. Mail-In Cloning Service: Several third-party services offer to "clone" your original module. You mail both your original (faulty) module and a compatible used replacement to them. They extract the unique immobilizer and VIN data from your old module's memory chip and flash it onto the replacement. The cloned module is then returned to you as a plug-and-play part, with no Component Protection active and no dealer visit required. 🎬 Watch: How the mail-in cloning process works for these modules This is only possible if the data on your original module is not completely corrupted.

Replacement Location and Procedure

The J393 Comfort Control Module is located in the trunk, on the right side, behind the liner panel near the battery and rear fuse box.

1. Disconnect the vehicle's battery.
2. Remove the right-side trunk liner and any surrounding panels to gain access to the electronics rack.
3. The J393 module is a black box with several large electrical connectors. Carefully document the position of each connector before removal.
4. Press the release tabs on each electrical connector and unplug them from the module.
5. Unbolt the module from its mounting bracket and remove it from the vehicle.
6. Installation is the reverse of removal. Once the new module is physically installed, it must be programmed using one of the methods described above before it will function correctly.

Buying a Used J393 Body Control Module

Purchasing a used J393 module is a very cost-effective strategy, but you must follow these guidelines to ensure success:

• Match the Part Number Exactly: There are many versions of this module. You must match the full OEM part number (e.g., 4E0909511A) from your original module to the replacement. The hardware and software versions must be compatible.
• Inspect for Water Damage: Modules in the trunk are susceptible to water intrusion from leaking tail light seals or clogged sunroof drains. Carefully inspect the pins on the used module for any signs of green or white corrosion. Do not buy a module with any evidence of water damage.
• Understand the Programming Requirement: A used module is not plug-and-play. Budget for either the dealer programming fee or the cost of a mail-in cloning service. A used module by itself will not solve your problem.
• Source from a Reputable Seller: Buy from a seller with a good return policy in case the part arrives damaged or is not the correct part number you ordered.

Cost Breakdown for Replacement

Prices can vary based on your location and chosen repair path. All replacement scenarios require programming.
