Audi Q5, Q7 & A5 BCM Failure (2017-2024): Solving Electrical Chaos & Component Protection

Symptoms of a Failing Body Control Module

A failing BCM in these Audi models often leads to a cascade of strange and seemingly unrelated electrical issues. Because the module controls so many different systems, symptoms can vary widely, but they typically fall into several common categories.

Common Failure Symptoms:

• Lighting Problems: Headlights, taillights, or interior lights may flicker, stay on constantly, or not turn on at all. You might see erroneous "light out" warnings on the dashboard.
• Central Locking & Key Fob Issues: The remote key fob may stop working, or only work intermittently. Doors may fail to lock or unlock, or they might lock and unlock on their own. The keyless entry and push-button start system may become unresponsive.
• Power Window & Sunroof Malfunctions: Windows or the sunroof may refuse to open or close, or they may operate erratically.

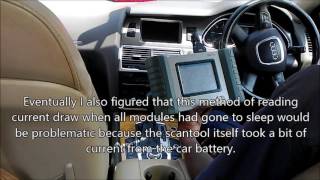

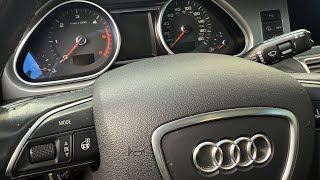

• Parasitic Battery Drain: One of the most common and frustrating symptoms is a battery that dies overnight. A faulty BCM can fail to enter its low-power "sleep mode" when the car is off, causing a slow but steady drain on the battery.
• Alarm System Faults: The factory alarm may trigger for no reason or may not arm when you lock the vehicle.
• Total Electrical Shutdown: In severe cases, a related Gateway Control Module failure can cause the entire vehicle to shut down while driving, resulting in a loss of power steering and brakes. This is a critical safety failure reported by some owners.

Known Issues and Causes of Failure

The #1 Killer: Water Intrusion in the Trunk

By far, the most common cause of BCM failure in the 2017-2024 Audi Q7, Q5, SQ5, and related models is water damage. Contrary to information about older models, the main Comfort Control Module (J393) in these vehicles is typically located in the rear luggage compartment, on the left (driver's) side, behind a trim panel.

This location makes it extremely vulnerable to water that leaks into the trunk. The most common sources of these leaks are:

• Clogged sunroof drains
• Failed tailgate weather seals
• Cracked or disconnected drain tubes

When water pools in this area, it soaks the module, leading to severe corrosion on the circuit board and connectors. Often, the failure is not sudden. It may start as intermittent glitches that worsen over time as the corrosion spreads. If you are experiencing BCM-related symptoms, the very first step is to inspect this area of the trunk for any signs of moisture, water stains, or corrosion 🎬 See this walkthrough of an Audi SQ5 BCM water damage repair on the module itself.

NHTSA Recalls and Investigations

While there isn't a widespread recall specifically for the BCM in all these models, there are related issues that have been acknowledged:

• 2017 Audi Q7 Air Bag Module Software (NHTSA Recall 16V519): A software issue in the air bag control module could cause airbags to deploy with excessive force. While not the BCM, it highlights the complexity of module software in these vehicles.
• Gateway Control Module Failures: Numerous complaints have been filed with the NHTSA regarding sudden vehicle shutdowns in Audi Q5 and Q7 models. This is often linked to the gateway control module, which can be affected by water intrusion from spills in the rear seat or other leaks, causing a loss of power while driving.

Programming: The Component Protection Trap

Replacing the Body Control Module in these Audis is not a simple plug-and-play repair. These modules are protected by a sophisticated anti-theft system called Component Protection (CP).

Component Protection links the BCM to your specific vehicle's VIN in a central database at the factory. If you install a new or used BCM, the system will detect that it doesn't belong to your car and will place it in a restricted mode. This means that even after installation, most of its functions will not work until the Component Protection is removed.

How to Remove Component Protection

You have two main options for adapting a replacement BCM:

1. Audi Dealer or Authorized Specialist: A dealer or a qualified independent shop with a legitimate subscription to Audi's online system can perform the adaptation. They use a diagnostic tool called ODIS (Offboard Diagnostic Information System) to connect 🎬 Watch: How to remove Component Protection using ODIS software to Audi's servers, verify the repair, and authorize the new module for your vehicle's VIN. This is the official method but can be costly.
2. BCM Cloning Service: This is often the best option for those buying a used BCM. A specialist service can read the data from your original (even if faulty) BCM and "clone" it onto the replacement used module. This process transfers all the original coding and security information, making the replacement module a plug-and-play part that does not trigger Component Protection. You typically mail both your old and replacement modules to the service provider.

Buying a Used Body Control Module

Given the high cost of a new OEM module, a used BCM is an excellent value, provided you are aware of the challenges. Here’s what you need to know:

• Match the Part Number EXACTLY: There are many different hardware and software versions of this module. You must match the full OEM part number from your original module. Even a one-letter difference can mean incompatibility.
• Inspect for Water Damage: Ask the seller for clear photos of the module's connectors. Look for any green or white crust (corrosion) or signs of rust on the pins. Do not buy a module that shows any evidence of water exposure.
• Find a Cloning Service First: Before you even buy a used module, research and contact a BCM cloning service. Confirm they can work with your specific part numbers and understand their process and costs.
• Keep Your Original Module: Do not throw away your old BCM, even if it's completely dead. It is required for the cloning process. Without it, you will be forced to go to the dealer.

Cost of Replacement

The cost to replace the BCM can vary significantly based on the parts and labor required.
