2016-2018 Porsche Cayenne Lane Change Assist Failure: A Guide to the Rear Radar Sensors

Symptoms of Failure

When a Lane Change Assist control module begins to fail, your Cayenne will provide clear warnings. The most common symptom is a message on the instrument cluster that reads “Lane change assist not available service required” or a similar warning. This indicates the system has detected a fault and has been disabled.

• Dashboard Warning Message: The most direct symptom is the “Lane Change Assist Unavailable” or “Service Required” message appearing on your dashboard. This may be intermittent at first but often becomes permanent.
• System Inoperative: The button to activate or deactivate the Lane Change Assist system may become unresponsive, and the warning lights in the side mirrors will not illuminate when vehicles are in your blind spot.
• Warning Light Stays On or Flickers: In some cases, the warning light in one or both mirrors may stay on constantly or flicker, even with no vehicle present.
• Fault Codes: A diagnostic scan with a professional tool like the Porsche PIWIS Tester will reveal specific fault codes. Common codes include C111504 (Lane Change Assist slave control unit - function restriction) and B200000 (Lane Change Assist master control unit - function restriction). Another related code is C12030 (no communication with lane change assist control unit).

Known Issues, TSBs, and Recalls

For the 2016-2018 Porsche Cayenne, there are no specific recalls for the Lane Change Assist system itself. However, Porsche has issued Advanced Technical Information (ATI) bulletins, which are similar to Technical Service Bulletins (TSBs), addressing known issues.

ATI Bulletin #1601.1: Intermittent "Lane change assist not available" Warning

Porsche released this bulletin for 2016-2018 Cayenne and Macan models experiencing the common "Lane change assist not available service required" warning. The bulletin identifies that specific modules with hardware level H06 are prone to this issue. It recommends replacing these affected H06 units in pairs, ensuring both the left and right sensors have a matching hardware level (e.g., both H05 or both H07). The bulletin also notes that a software issue in the master control unit could be the cause, requiring replacement.

Buying a Used Blind Spot Detection System Warning Control Module

Purchasing a used OEM module is a cost-effective way to restore your Lane Change Assist system. Because these are sensitive electronic components, careful inspection is key to getting a good part.

What to Check Before You Buy:

• Verify the Part Number: The most critical step is to match the part number exactly. The primary part number for this generation is PAB907566C, which supersedes older numbers like 8T0907566B. While part numbers starting with 8T0 are originally from Audi, they are used across Volkswagen Auto Group (VAG) brands, including Porsche. Always confirm the part number on your original sensor before ordering.
• Inspect the Housing: Look for any cracks, chips, or signs of physical damage on the black plastic housing. The sensors are located in a vulnerable area behind the bumper and can be damaged in minor impacts. A compromised housing can allow water to enter and destroy the electronics.
• Check the Connector: The electrical connector pins should be clean, straight, and free of any green or white corrosion. Water intrusion is a common failure mode, and a corroded connector is a major red flag.
• Ask About Hardware Level: As noted in the Porsche ATI, modules with hardware level H06 were problematic. If possible, try to source a used module with a different hardware level like H05 or H07, and plan to replace both sensors to ensure they match.
• Source from a Reputable Seller: Buy from a seller that offers a warranty and has good reviews. This provides a safety net in case the used part is non-functional.

Replacement and Calibration

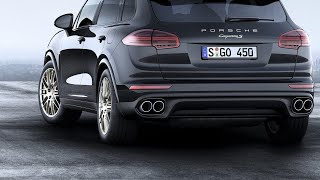

Replacing the Lane Change Assist module is a moderately difficult job, primarily because it requires the complete removal of the rear bumper cover.

Installation Steps Overview:

1. Remove Rear Bumper Cover: This involves removing screws in the wheel wells, under the vehicle, and inside the trunk area to access the taillight bolts. The taillights must be removed to access key bumper fasteners.
2. Disconnect Wiring: Before the bumper can be fully removed, electrical connectors for the parking sensors and other components must be disconnected.
3. Access the Module: With the bumper cover off, the Lane Change Assist modules will be visible, mounted to brackets on the rear corners of the vehicle.
4. Replace the Module: Unbolt the old module and install the new one. Reconnect the electrical harness.
5. Reinstall Bumper: Re-install the bumper cover by reversing the removal steps.

Calibration is Required

After installing a new or used sensor, the system must be calibrated by a Porsche dealer or a qualified independent shop with a Porsche PIWIS Tester and specialized calibration equipment (VAS 6350 calibration board). The PIWIS tool guides the technician through a process of programming the control unit and using the calibration rig to aim the radar sensors precisely. Attempting to use the system without proper calibration can result in it not working at all or, worse, providing inaccurate warnings.
