2015-2016 Lexus GX460 Blind Spot Module: Decoding Failures and Replacement Costs
This guide covers the common failures, diagnosis, and critical part number matching needed when replacing the blind spot warning module on your 2015-2016 Lexus GX460.
- The single most critical step is matching the OEM part number exactly (88162-0W320 for the left side).
- Replacement is not a simple plug-and-play job; professional calibration is mandatory after installation and costs an additional $300-$600.
- The modules are located behind the rear bumper cover, so replacement requires removing the bumper.
- The primary symptom of failure is a "Check BSM System" warning message on the dashboard.
Symptoms of a Failing Blind Spot Module
When the blind spot module begins to fail, your vehicle will typically give you clear indications. The most common symptom is a warning message on the instrument cluster that says "Check BSM System" or a similar phrase, accompanied by a yellow warning triangle. Here are the most frequent signs of a problem:
- "Check BSM System" Warning Light: This is the most direct indicator that the system has detected a fault and has shut itself down.
- BSM Indicator Light On or Blinking: The small "BSM" light on the dashboard may turn yellow or blink, indicating a malfunction instead of being steadily green when active.
- Mirror Warning Lights Inoperative: The lights in the side mirrors will not illuminate when a car is in your blind spot because the system is disabled.
- False Alerts: Less commonly, a failing module might cause the mirror warning lights to illuminate randomly even when no vehicle is present.
- Multiple System Warning Lights: In some cases, a fault in the BSM system can cause other warning lights, such as for the ABS and traction control, to illuminate as well.
Pro Tip: Before assuming the module has failed, check the BSM system settings in your vehicle's multi-information display to ensure it hasn't been accidentally turned off. 🎬 Watch: How to operate and adjust your Lexus blind spot sensors Also, make sure the rear bumper corners are clean and free of dirt, mud, or snow, as obstructions can sometimes cause a temporary system error.
Buying a Used Blind Spot Module: What to Check
Purchasing a used blind spot module is a great way to save a significant amount of money, but it requires careful attention to detail. A new OEM module can cost over $1,000, while a used one can often be found for under $150. Here’s what to focus on to ensure you get the right part.
1. The Part Number is Everything
This is the most critical step. You must match the OEM part number on your original module exactly. For the 2015-2016 GX460, the primary part numbers are:
- Left (Driver's Side): 88162-0W320 (sometimes referred to as the 'slave' module)

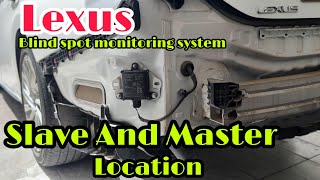

- Right (Passenger's Side): 88162-0W310 (sometimes referred to as the 'master' module) 🎬 See this video showing the master and slave module locations
Warning: For the 2016 model year specifically, Lexus may have used different part numbers. It is absolutely essential to remove your old module and confirm the part number printed on it before ordering a replacement. Do not rely on a catalog alone.
2. Physical Inspection
When you receive the used module, inspect it carefully before installation:
- Check for Cracks: The plastic housing should be free of cracks or significant damage. These modules are located behind the bumper and are vulnerable to impact.
- Inspect the Connector: Look at the electrical connector pins. They should be clean, straight, and free of any green or white corrosion. Corrosion is a sign of water intrusion, which will cause the part to fail.
- Examine the Seal: Ensure the seams of the module case appear intact and have not been pried open. A compromised seal will lead to moisture damage.
3. Why Used OEM is a Smart Choice
For a complex electronic component like this, a used Original Equipment Manufacturer (OEM) part is often a better choice than a new, cheap aftermarket alternative. The OEM module was designed and tested by Lexus for your specific vehicle, ensuring proper communication with the car's other computer systems. Aftermarket electronics can sometimes create new, unpredictable issues. Given the huge cost savings, a quality-inspected used OEM module provides the best balance of value and reliability.
Replacement and Calibration Overview
Replacing the blind spot module is a multi-step process that is moderately difficult for a DIY mechanic, primarily because it requires removing the rear bumper cover to access the modules mounted in the corners.
The most important part of the replacement is the calibration. This is not an optional step.
Warning: The Blind Spot Monitoring system is NOT self-calibrating on a Lexus GX460. After a new or used module is installed, it must be professionally calibrated. This procedure, often called "Blind Spot Monitor Beam Axis Confirmation," requires specialized diagnostic tools (like Lexus TechStream software) and physical targets to properly aim the radar sensor. Skipping calibration can result in the system not working at all or, worse, providing inaccurate warnings, which is a major safety risk.
Cost of Replacing a 2015-2016 GX460 Blind Spot Module
The total cost can vary widely based on the parts you choose and who performs the labor and calibration. Remember to factor in calibration as a separate, mandatory cost.
| Item | Estimated Cost | Notes |
|---|---|---|
| New OEM Module | $1,000 - $1,400 | Purchased from a Lexus dealership parts counter. |
| Used OEM Module | $75 - $200 | Prices from online recyclers and eBay. Ensure part number match. |
| Shop Labor (Installation) | $150 - $350 | For 1-2 hours of labor to remove the bumper and swap the module. |
| System Calibration | $300 - $600 | Required after installation. Performed by a dealer or specialized ADAS shop. |
Frequently Asked Questions (FAQ)
Can I drive with a broken blind spot module?
Yes, but with caution. A failed module will disable the blind spot monitoring and potentially the Rear Cross-Traffic Alert systems, but it will not affect the vehicle's ability to drive, brake, or steer. You will simply need to be more vigilant and rely on your mirrors and shoulder checks when changing lanes, just as you would in a car without this feature.
Do I have to get the new module calibrated?
Yes, calibration is mandatory. The module uses radar to detect vehicles, and its angle is critical. Without proper calibration, the system will not function correctly and will likely continue to show a "Check BSM System" error. Do not let a shop tell you it will "learn" by itself.
What is the difference between the left and right modules?
They have different part numbers and are not interchangeable. In the Lexus system, the right (passenger) side module is often considered the "master" and the left (driver) side is the "slave." You must use the correct part for the specific side you are replacing.
My "Check BSM" light came on after a minor bumper impact. What should I do?
Even a small impact can knock the radar module out of alignment or damage its mounting bracket. This is enough to trigger a fault. The first step is a diagnostic scan to see what error code is stored. The solution may be as simple as a recalibration, but if the module or its bracket is physically damaged, it will need to be replaced.
Helpful Videos
Technical Specifications
OEM Part Numbers: 88162-0W320 881620W320 88162-0W310 881620W310
The left (driver's) side module is 88162-0W320. The right (passenger's) side module is 88162-0W310. These modules operate on a radar frequency to detect objects.
