2003-2007 Saab 9-3 Bell Housing: Decoding Manual vs. Automatic Failures

Understanding the 2003-2007 Saab 9-3 Bell Housing

For the 2003-2007 Saab 9-3, the term 'bell housing' refers to the front section of the transmission case that bolts directly to the engine block. It is not a fully separate part as in many older, rear-wheel-drive vehicles. This means that a significant failure of the bell housing, such as a large crack, often requires replacing the entire transmission case or the complete transmission assembly. Understanding which bell housing corresponds to your vehicle is crucial, as there are distinct versions for manual and automatic transmissions.

Variant & Part Number Guide

The initial data for this part contained conflicting information. Research clarifies that different part numbers are used for manual and automatic transmissions. Here's a breakdown:

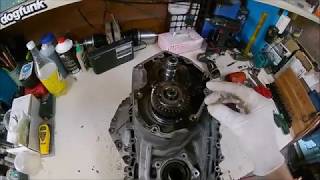

• 5-Speed Manual (F35 Transmission): This transmission uses a specific case/bell housing. Part number 12788235 is explicitly listed as a 'Transmission Housing - 5-Speed' for manual models. This housing is part of the Saab F35 manual gearbox 🎬 Watch this step-by-step disassembly of the Saab F35 manual transmission case, a robust unit also used in other GM vehicles.
• 5-Speed Automatic (Aisin AW55-50/51 'Sentronic'): These transmissions use a different case. Part number 55353747 is consistently associated with the complete automatic gearbox assembly for the 2.0L turbo engine. While this number represents the whole transmission, the bell housing portion is specific to this automatic unit.

The part number 55352385 appears less frequently in searches but is likely another number for either a specific revision or a component related to one of these transmissions.

Symptoms of Bell Housing Failure

Bell housing failures are uncommon but can be severe. Since it's a structural part, symptoms usually point to a crack or a problem with alignment.

1. Grinding Noises or Difficulty Shifting (Manual)

A cracked or warped bell housing can cause misalignment between the engine and transmission. This puts stress on the transmission's input shaft and can make it difficult to engage or disengage the clutch. You might hear grinding noises when shifting or notice the clutch doesn't feel right. This can also manifest as red dust (from a worn clutch) around the bell housing area.

2. Transmission Fluid Leaks

A crack in the bell housing can create a path for transmission fluid to escape. While leaks are more commonly from seals, any unexplained fluid dripping from the area where the engine and transmission meet warrants a close inspection of the housing itself.

3. Persistent Drivetrain Vibrations

If the bell housing is damaged, it can disrupt the alignment and balance of the entire drivetrain. This may cause a persistent vibration that changes with engine RPM. It can be mistaken for a tire or axle issue, but if those are ruled out, the bell housing alignment should be checked.

4. Visible Cracks or Damage

The most definitive symptom is a visible crack. These often start small and can be hard to see, typically forming around bolt holes or stress points. They can be caused by a number of things, including a previous accident, improper transmission installation (e.g., missing dowel pins), or extreme stress. In some cases, owners have reported finding cracks on the top of the bell housing.

Buying a Used Bell Housing (or Transmission Assembly)

Since the bell housing is part of the transmission case, you are often buying a complete used transmission or just the case itself. Here’s what to look for.

Key Inspection Points:

• Thoroughly Clean and Inspect for Cracks: The most important check is for hairline cracks. Clean the entire housing, especially around bolt holes and the starter mounting area. Use a bright light and a magnifying glass. A crack that seems small can be a sign of a major structural failure.
• Check All Mating Surfaces: The surface that bolts to the engine and the surface where the rest of the transmission bolts on must be perfectly flat and free of deep gouges or damage. Any damage here can cause misalignment and leaks.
• Inspect Dowel Pin Holes: There are alignment dowels that locate the transmission precisely to the engine. Make sure the holes for these dowels on the bell housing are not elongated, damaged, or corroded. Damaged dowel holes are a major red flag.
• Verify All Threaded Holes: Check every threaded bolt hole to ensure the threads are clean and not stripped. Pay special attention to the starter motor and transmission mount bolt holes, as these are under high stress.
• Confirm the Part Number and Transmission Type: Double-check that you are buying the correct housing for your car. A manual bell housing (like 12788235) will not work on an automatic car, and vice-versa for an automatic case (associated with 55353747).

Known Issues, TSBs, and Recalls

There are no specific recalls or Technical Service Bulletins (TSBs) from Saab or the NHTSA that directly address cracking or failure of the bell housing for the 2003-2007 Saab 9-3. Most transmission-related TSBs concern operational characteristics, fluid leak identification, or software updates for the automatic transmission. Any failure of the bell housing is typically considered an individual component failure due to stress or damage, not a widespread defect.

Installation & Replacement

Replacing the bell housing is a very involved job because it is part of the transmission case. The entire transmission must be removed from the vehicle.

• Difficulty: 5 out of 5 (Professional level)
• Estimated Time: 8-12 hours for a professional.
• DIY Feasible: Not recommended for beginners. This requires an engine hoist or transmission jack, extensive tools, and a deep understanding of drivetrain mechanics.

If only the case is being swapped, the entire internal gear set must be carefully transferred from the old case to the new one, which is a transmission rebuild-level task. Because of this complexity, most shops will opt to replace the entire transmission assembly rather than just the case.

Cost Comparison

Because a 'bell housing' replacement usually means a full transmission replacement, the costs reflect that.
