2022-2025 Kia EV6 Battery Cable & Wiring: 12V Drain & ICCU Issues Explained

Understanding the EV6's Dual-Battery System

The 2022-2025 Kia EV6, like most electric vehicles, has two separate batteries: a large, high-voltage (HV) battery for propulsion and a small, 12-volt lead-acid or AGM battery. This 12V battery is similar to what's in a traditional gasoline car. Its job is to power the car's computers, lights, door locks, and other accessories when the vehicle is off. Critically, it also provides the initial power to 'wake up' the main HV battery system. If the 12V battery is dead, the car cannot enter 'Ready' mode and will not drive, even if the main HV battery is 100% charged.

The component that keeps the 12V battery topped up is the Integrated Charging Control Unit (ICCU). It acts like an alternator in a gas car, converting high-voltage DC power from the main battery into low-voltage DC power to charge the 12V battery and run accessories while driving.

Known Issues: The ICCU and 12V Battery Drain

The most significant and widespread electrical issue on the 2022-2024 Kia EV6 is the failure of the ICCU. This issue is so common that it has led to multiple safety recalls and service campaigns. The failure often occurs when the ICCU is damaged by thermal stress or voltage spikes, causing it to stop charging the 12V battery. This leads to the 12V battery slowly draining until it is completely dead, stranding the vehicle.

Recalls and Technical Service Bulletins (TSBs)

Kia has issued several recalls and service campaigns to address the ICCU problem. The most prominent ones for the US market are:

• NHTSA Campaign Number 24V200000 (Kia Campaign SC302): This recall involves inspecting the ICCU, updating its software to reduce thermal loading and peak voltage, and replacing the ICCU and its fuse if necessary.
• NHTSA Campaign Number 24V867000 (Kia Campaign SC327): This recall expands upon and replaces the previous one (SC302). 🎬 See: What the SC327 recall means for your EV6 Vehicles that were previously repaired under SC302 will need to have the new remedy from SC327 completed. The fix remains a software update and, if needed, a full replacement of the ICCU and fuse, free of charge.

Owners can check if their vehicle is affected by entering their VIN on the NHTSA or Kia owner websites.

Symptoms of a Failing Battery Cable or Charging System

While a physical cable can be damaged, most symptoms in the EV6 point toward a charging system (ICCU) failure. Be alert for the following:

• "Check Electric Vehicle System" Warning Light: This is the most common first sign of an ICCU problem.
• 12V Battery Discharging Warning: The car may explicitly tell you the 12V battery is not being charged.

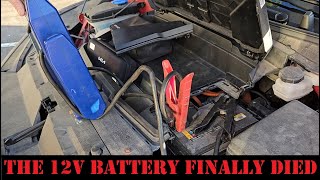

• Complete No-Start Condition: The car is completely unresponsive, as if the battery is dead, because the 12V battery is too low to power up the computers.
• Audible "Pop" Sound: Some owners report hearing a distinct pop from the rear of the vehicle when the ICCU fails, which is often the internal fuse blowing.
• Car Enters "Limp Mode": The vehicle may suddenly reduce power and display a turtle icon, allowing you to pull over before it shuts down completely.
• Diagnostic Trouble Code (DTC) P1A9096: 🎬 Watch: Understanding the P1A9096 code and ICCU failure This code specifically points to a fault in the DC-to-DC converter within the ICCU and is the key piece of evidence for technicians.

Buying a Used 2022-2025 Kia EV6 Battery Cable or Wiring Harness

If you have physical damage to a cable or harness from an accident or other event, purchasing a used OEM part is a viable option. However, it's crucial to understand what you're buying.

• Part Number Verification is Essential: The EV6 uses different wiring harnesses depending on trim level (e.g., GT, GT-Line) and options like front parking sensors. The part number 91850-CV010, for example, is a front bumper wiring harness that connects sensors and lights. You MUST match the part number from your vehicle's original harness exactly. A harness for a base model will not work on a model with parking sensors.
• Physical Inspection: When inspecting a used harness, look for any signs of melting, corrosion (white or green powder on connectors), cut wires, or previous repairs (electrical tape splices). Any sign of heat damage is a major red flag. Connectors should be clean, with all pins straight and intact.

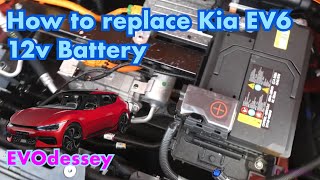

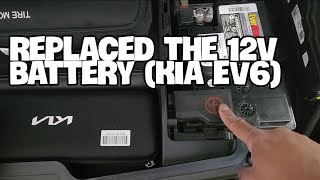

• Distinguish Between Harnesses: Be clear on which part you need. 375C6-CV700 is a high-voltage bus bar within the main battery assembly and is not a typical 'battery cable'. 91850-CV010 is a front-end wiring harness. The simple positive and negative cables for the 12V battery are different still. 🎬 Watch: Step-by-step 12V battery replacement tutorial Always use the part number from your specific damaged part as the reference.
• Why Used OEM is the Best Choice: For complex, vehicle-specific wiring harnesses, aftermarket options are virtually nonexistent and would be untrustworthy. A used OEM harness from a low-mileage vehicle ensures correct connector types, wire gauges, and pinouts, which is critical for modern vehicle electronics.

Note: ICCU replacement is typically covered free of charge under Kia's recall campaigns (SC302, SC327) or the 10-year/100,000-mile EV system warranty. Costs shown are for out-of-warranty repairs.
