2003-2017 Honda Accord Antenna Guide: AM/FM Reception, Shark Fin Leaks & Replacement

Antenna Systems by Accord Generation

The type of antenna on your Honda Accord depends on its generation and trim level. Identifying the correct system is the first step in diagnosis and repair.

2003-2007 (7th Generation)

Most 7th generation Accords use an in-glass antenna for AM/FM radio. The antenna grid is integrated into the rear windshield, similar to the defroster lines. A separate antenna amplifier, often located in the C-pillar, boosts the signal before sending it to the radio. Problems with this system are often related to the amplifier, the connections, or damage to the grid on the glass. Some early models may have had a traditional power mast antenna, which had its own set of issues with the motor or mast breaking.

2008-2012 (8th Generation)

The 8th generation continued to use the in-glass antenna for standard AM/FM reception on many trims. However, this generation introduced the roof-mounted 'shark fin' antenna for models equipped with XM Satellite Radio and/or factory navigation. It's important to distinguish between the different functions; the shark fin could house the XM antenna, the GPS antenna, or both, while the AM/FM antenna remained in the glass.

2013-2017 (9th Generation)

On the 9th generation Accord, the shark fin antenna became more common. It typically houses the XM satellite radio antenna. The AM/FM antenna may also be integrated into this unit or remain in the rear glass, depending on the specific model and trim. The GPS antenna is often a separate unit, though it can be part of the main assembly. A major known issue with the shark fin antennas on these models is the potential for the base seal to fail, causing water to leak into the cabin.

Common Symptoms of Antenna Failure

Diagnosing an antenna problem starts with identifying the specific symptom. The issue you experience will point you toward the correct antenna system.

1. Poor AM/FM Radio Reception

If you experience excessive static, weak signals, or the radio struggles to find stations, the problem is with the AM/FM antenna system. For in-glass antennas, this could be a failing signal amplifier, a loose connection at the back of the radio 🎬 Learn how to fix reception issues on aftermarket radio units. or at the amplifier, or a break in the antenna grid on the window. For shark fin antennas, it could be an internal failure of the unit or a bad cable.

2. Satellite Radio 'No Signal' or Dropouts

If your XM or SiriusXM radio frequently cuts out or displays a 'No Signal' or 'Antenna Error' message, the issue is with the roof-mounted shark fin antenna or its wiring. This is separate from the AM/FM system. The problem is almost always the antenna unit itself or the connection to it.

3. Water Leaking Inside the Cabin

A significant known issue for later-model Accords is a water leak from the base of the shark fin antenna. This happens when the gasket that seals the antenna to the roof fails. Water can drip from the headliner, map lights, or run down the pillars, potentially causing stains, mold, or damage to other electronics. A GM service bulletin for a similar issue notes that water can travel down the antenna wiring and cause corrosion in electrical modules far from the leak's origin.

Buying a Used Honda Accord Antenna

Purchasing a used OEM antenna can be a cost-effective solution, especially for the expensive shark fin assemblies. Here’s what to look for.

Physical Inspection Checklist:

• Check the Housing: For shark fin antennas, inspect the plastic cover for any cracks, deep scratches, or signs of sun damage that could compromise its integrity.
• Inspect the Gasket: The most critical part of a used shark fin is the rubber gasket at its base. Ensure it is pliable, complete, and free of cracks or dry rot. A damaged gasket is the primary cause of water leaks.
• Verify Connectors: Look at the electrical connector(s) on the underside. They should be clean, with no bent or corroded pins. Make sure the connector style matches your vehicle's harness.
• Confirm Part Numbers: There are many different antenna part numbers, often corresponding to the vehicle's paint color and features (XM, GPS, etc.). Match the part number from your old antenna or verify the correct number for your VIN with a dealer to ensure compatibility.

Known Issues, TSBs, and Recalls

While no specific recalls exist for the 2003-2017 Accord antennas, the water leak issue is well-documented in forums and addressed by service bulletins for other manufacturers with similar designs. General Motors issued TSB 17-NA-214 for a nearly identical problem, recommending cleaning the roof surface and applying a bead of automotive seam sealer around the antenna's water seal during installation to prevent future leaks. This is considered a best practice when replacing any shark fin antenna, even with a new gasket.

Cost Comparison for Accord Antennas

Replacement Overview

Installation difficulty varies greatly by antenna type.

• In-Glass Antenna Amplifier: This typically involves removing an interior C-pillar trim panel to access the amplifier. It's usually held by a single bolt or clip and has two simple plug-in connections (antenna in and antenna out). Difficulty: 2/5

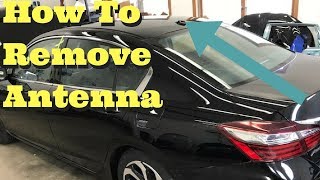

• Shark Fin Antenna: This is a more involved job. It requires partially dropping the rear of the headliner to access the mounting nut and electrical connector on the underside of the roof. This involves removing grab handles, trim panels, and light fixtures. Care must be taken not to crease or damage the headliner. 🎬 See how to safely drop the headliner for antenna access. Difficulty: 4/5
