2019-2025 Ram 3500 Air Suspension Module: Decoding Failures and Programming
This guide covers common symptoms, diagnostic codes, and the essential programming steps required when replacing your Ram's air suspension control module.
- A replacement Air Suspension Control Module MUST be programmed to the vehicle by a dealer or a properly equipped shop to function.
- Many issues can be fixed with a software update (TSB) instead of a full replacement; check the vehicle's service history first.
- Common symptoms include a "Service Air Suspension" message, a sagging rear end, and an inability to change ride height.
- When buying used, verify the part number and ensure the seller offers a warranty, as you won't know if it's good until you attempt to program it.
Symptoms of a Failing Air Suspension Control Module
When the Air Suspension Control Module (ASCM) begins to fail, it can cause a variety of noticeable problems. While some issues like a leaking air spring can mimic a control module problem, a faulty module often produces distinct electronic glitches and error messages.
- "Service Air Suspension" Message: This is the most common indicator. A persistent warning light or message on the dashboard instrument cluster indicates the system has detected a fault.
- Inability to Adjust Ride Height: The truck may become stuck in one mode, unable to raise or lower using the console buttons or Uconnect screen.
- Uneven Ride Height: One or both sides of the rear suspension may sag or sit lower than normal, and the system will not correct it.
- System Inoperable: The air suspension may become completely unresponsive, sometimes after a cold spell where moisture in the system can freeze.
- Erratic Behavior: You might experience false messages like "Bed Low Achieved" when the truck hasn't moved, or the compressor may cycle excessively when the vehicle is stationary.
Common Diagnostic Trouble Codes (DTCs)
A professional scan tool can read codes from the ASCM. The presence of these codes strongly suggests a problem with the module itself or the components it controls.
- U0132 - Loss of Communication with Air Suspension Control Module
- C220C-48 - Active Suspension Module Internal-Supervision Software Failure
- C211B-92 - Ignition Run/Start Input-Performance Or Incorrect Operation
- C15E1-97 - Left Rear Air Spring Intake - Component or System Operation Obstructed or Blocked
- C156C-7A - Ride Height System Air Leak-Fluid Leak Or Seal Failure
Warning: While the module itself is a common point of failure, these symptoms can also be caused by leaking air springs, a faulty compressor, or damaged ride height sensors. A thorough diagnosis is necessary before replacing the module.
Known Issues, TSBs, and Recalls
Ram has issued several Technical Service Bulletins (TSBs) related to the air suspension system on these trucks, primarily involving software updates to fix bugs and improve performance.
- TSB 08-175-21: Released in November 2021, this bulletin involves reprogramming the ASCM with updated software to address a range of issues, including false warning lights, communication loss (U0132), and other operational glitches on 2019-2022 models.
- TSB 08-073-20: An earlier version of the software flash from August 2020 for 2019-2020 models to fix similar DTCs and customer complaints.
These TSBs indicate that many problems can be resolved with a software update at the dealer rather than a full module replacement. It's crucial to check if these updates have been performed before condemning the hardware.
Programming: The Critical Step After Installation
This is the single most important factor to consider when replacing the Air Suspension Control Module.
A replacement ASCM—whether new or used—will not work correctly until it is programmed to the vehicle.
The module is integrated into the truck's complex computer network (the CAN bus). Programming is required to configure the module for the specific options on your truck and to synchronize it with other computers like the Body Control Module (BCM) and Powertrain Control Module (PCM). Without this step, the system will remain disabled and display warning lights.
- Dealer Programming: A Ram dealership is the most reliable option. They use the proprietary wiTECH diagnostic application to download the correct software and flash the module. This process takes approximately 15-30 minutes.
- Independent Shop: A well-equipped independent shop with a subscription to OEM diagnostic software or a high-end aftermarket tool may be able to perform the programming.

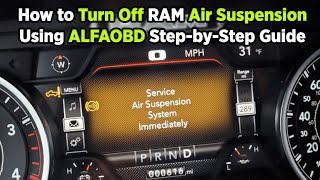

- DIY Programming: Advanced DIYers with tools like AlfaOBD and a compatible OBD2 interface can potentially perform some configuration changes, such as disabling the system if converting to conventional springs. 🎬 Watch: How to disable the air suspension using AlfaOBD However, initializing a new OEM module typically requires dealer-level tools.
Pro Tip: Before buying a used module, call your local dealer or a trusted independent shop and ask if they are willing to install and program a customer-supplied used part. Some shops refuse due to the risk of the part being faulty.
Buying a Used Air Suspension Control Module
Purchasing a used ASCM can be a cost-effective solution, but it requires careful consideration due to the programming requirement.
- Verify the Part Number: Ram has released many revisions of this module. The part numbers are sequential, such as 68354198AG, 68354198AH, 68354198AI, and so on. Generally, a newer revision (e.g., 'AQ') can replace an older one (e.g., 'AM'). Always try to match your original part number or a verified superseded number.
- Physical Inspection: The module is an electronic component. When inspecting a used unit, look for any signs of physical damage, such as a cracked case or bent pins on the electrical connectors. Most importantly, check for any hint of corrosion or water marks, which indicate potentially fatal internal damage.
- Source Matters: Buy from a reputable seller who offers a warranty. This gives you protection in case the module is dead on arrival or cannot be programmed.
- The Programming Plan: Do not purchase a used module without a solid plan for programming. As mentioned, confirm that a local shop will perform the work with your supplied part. Factor the cost of programming into the total repair cost.
Cost Breakdown
The cost to replace the Ram 3500 Air Suspension Control Module can vary significantly based on the part source and labor rates.
| Item | Estimated Cost |
|---|---|
| New OEM Module (Dealer) | $550 - $850 |
| Used OEM Module (Salvage/Online) | $150 - $350 |
| Shop Labor (Replacement & Programming) | $150 - $300 (1.0-2.0 hours) |
Note: Prices are estimates and can vary by location and supplier. Shop labor for programming alone may be a flat 1-hour diagnostic fee.
Frequently Asked Questions (FAQ)
Where is the Air Suspension Control Module located?
On many Ram trucks, the Air Suspension Control Module (ASCM) is located under the front passenger seat or beneath the center console. Accessing it may require removing the seat or console trim panels.
What happens if I don't program the new module?
If the module is not programmed, the air suspension system will not function. You will have a persistent "Service Air Suspension" warning on the dash, and you will be unable to control the ride height. The system will be completely inoperative.
Can I just pull a fuse to reset the system?
Pulling the fuse (often F50 or F87 in the engine bay fuse box) or disconnecting the battery for 15 minutes can sometimes clear a temporary electronic glitch or "hard freeze" of the module. This can be a useful first troubleshooting step, but it will not fix a failed module or resolve underlying software bugs addressed by a TSB.
🎬 See how to find and replace the air suspension fuseIs this the same as the Airbag Control Module?
No. The Air Suspension Control Module (ASCM) is completely separate from the Airbag Control Module, also known as the Occupant Restraint Controller (ORC). The ASCM controls ride height, while the ORC controls the deployment of airbags and seatbelt pretensioners in a crash.
🎬 Watch: How to locate and replace the airbag control moduleHelpful Videos
Technical Specifications
OEM Part Numbers: 68354198AG 68354198AH 68354198AI 68354198AJ 68354198AK 68354198AL 68354198AM 68354198AN 68354198AP 68354198AQ 981522941
This is an electronic control unit that communicates on the vehicle's CAN bus network. It controls the air suspension compressor and valve block based on inputs from ride height sensors.
