2019-2021 Acura RDX Active Grille Shutter: Diagnosing P059F and Trim Package Differences
This guide covers common failure symptoms, trim-specific part numbers, and replacement costs for the active grille shutter on the 2019-2021 Acura RDX.
- Fitment is trim-specific. The A-Spec package requires a different lower grille shutter assembly than Base, Technology, or Advance packages.
- The most common failure symptom is a Check Engine Light with code P059F, often caused by physical damage from road debris or ice.
- Replacement is a complex DIY job (Difficulty 4/5) because the entire front bumper cover must be removed.
- Used OEM parts are a great value, as reliable aftermarket alternatives for the functional assembly are not widely available.
Symptoms of a Failing Air Shutter
Failure of the active grille shutter system is most commonly caused by physical obstruction or damage. Because of its location at the front of the vehicle, the assembly is vulnerable to road debris, ice and snow buildup, or minor front-end impacts that can jam the mechanism or break the plastic components.
- Check Engine Light: The most common symptom is an illuminated Check Engine Light with diagnostic trouble code (DTC) P059F - Active Grille Air Shutter 'A' Performance/Stuck Off stored in the powertrain control module (PCM). This code indicates the computer has commanded the shutter to move but has not detected the expected change in position.
- "Active Grille Shutter System Problem" Message: Some vehicles may display a specific warning message on the multi-information display.
- Visibly Stuck or Damaged Shutters: A visual inspection may reveal that the shutter flaps (louvers) are stuck in either the open or closed position. You may also see cracked plastic, bent flaps, or other signs of impact damage.
- Engine Overheating: If the shutters become stuck in the closed position, they can restrict airflow to the radiator. This may cause the engine to run hotter than normal or overheat, especially in hot weather or stop-and-go traffic.
- Reduced Fuel Economy: If the shutters are stuck open, the vehicle's aerodynamics are compromised at highway speeds, which can lead to a noticeable decrease in fuel efficiency.
Known Issues, TSBs, and Recalls
As of mid-2024, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from Acura directly addressing a manufacturing defect with the active grille shutter assembly on the 2019-2021 RDX. Most reported failures are isolated incidents, often resulting from external factors like road debris.
It is important not to confuse shutter issues with other front-end related service campaigns. TSB 20-053, for example, addresses a separate issue where the vehicle may enter 'limp mode' in humid conditions due to moisture in the intercooler system. While fixing that issue also requires removing the front bumper, it is unrelated to the grille shutter itself.
Critical Compatibility Warning: Fitment Varies by Trim Package
The single most important factor when purchasing a replacement air shutter is the vehicle's trim package. The A-Spec package has a unique front bumper and lower grille design compared to the Base, Technology, and Advance packages. The core shutter mechanism may be similar, but the surrounding garnishes and mounting points are different. You cannot use an A-Spec lower grille assembly on a non-A-Spec model, or vice-versa.

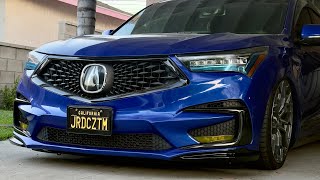

🎬 See this A-Spec front grille replacement walkthroughBuying a Used Air Shutter Assembly
Since reliable aftermarket options for the complete, functional active shutter assembly are not readily available, a used OEM part is often the best and most cost-effective solution. Here is what to inspect before buying:
- Verify the Trim Package: Confirm the donor vehicle's trim package (A-Spec or non-A-Spec) to ensure the entire lower grille assembly will match your bumper. Ask the seller for the VIN to verify the original trim if you are unsure.
- Inspect for Physical Damage: Carefully examine photos of the part. Look for:
- Cracks or breaks in the main plastic housing.
- Bent, broken, or missing shutter flaps (louvers).
- Damage to the actuator motor or its electrical connector.
- Broken mounting tabs where the assembly attaches to the bumper.
- Check the Linkage: Ensure the small arms that connect the motor to the flaps are intact and move freely. This is a common point of failure.
- Part Number Verification: The main lower grille assembly for non-A-Spec models is part number 71106-TJB-A00. While the A-Spec uses a different assembly, this number can help identify the core component. Always prioritize a visual match and trim package confirmation over part numbers alone, as the shutter is part of a larger assembly.
Cost of Replacement
The cost of replacement is significantly influenced by the high labor cost associated with removing the front bumper cover.
| Part/Service | Estimated Cost |
|---|---|
| New OEM Lower Grille Assembly | $120 - $170 |
| New Aftermarket Assembly | Not Widely Available |
| Used OEM Assembly | $75 - $150 |
| Shop Labor | $300 - $600 |
| Total Professional Repair (Used Part) | $375 - $750 |
| Total Professional Repair (New OEM Part) | $420 - $770 |
Pro Tip: A dealership repair could be significantly more expensive, with some owners being quoted up to $1500. A DIY repair can save hundreds in labor, but it is a time-consuming job.
Replacement Procedure & Difficulty
Replacing the active grille shutter assembly is a moderately difficult job that requires removing the entire front bumper cover.
- Difficulty Rating: 4 out of 5
- Estimated DIY Time: 3-5 hours
- Tools Required: Phillips screwdriver, 10mm socket, ratchet, plastic trim removal tools, and potentially clip pliers.
The general steps involve disconnecting the battery, removing numerous plastic clips and screws from the top, sides (in the wheel wells), and bottom of the bumper, and carefully releasing retaining tabs along the headlights before pulling the bumper cover off. Once the bumper is off, the lower grille shutter assembly is accessible and can be unbolted. No special programming or calibration is required after installation.

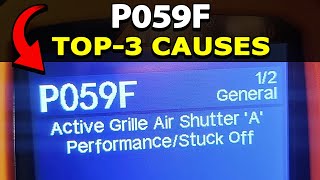

🎬 Watch: Understanding how active grille shutters workFrequently Asked Questions (FAQ)
What does the code P059F mean on my Acura RDX?
P059F is a generic OBD-II trouble code that means "Active Grille Air Shutter 'A' Performance/Stuck Off." It signifies that the vehicle's computer has detected a problem with the shutter system, usually that it's stuck or not responding to commands. This is most often caused by debris, ice, or physical damage.
Can I drive my RDX with a broken air shutter?
Yes, but with limitations. The vehicle is generally safe to drive. However, if the shutter is stuck closed, you risk engine overheating in hot weather or heavy traffic, so you should monitor your temperature gauge closely. If it's stuck open, your fuel economy will be reduced. In either case, the Check Engine Light will remain on, which will cause an automatic failure of a state emissions inspection.
Why is the A-Spec model's air shutter different?
The A-Spec trim package includes a different front bumper cover with unique styling and gloss black trim pieces. This means the lower grille opening and the surrounding garnishes are shaped differently than on the Base, Technology, or Advance packages, requiring a specific lower grille assembly to ensure proper fitment.
Is it hard to replace the RDX air shutter myself?
For an experienced DIY mechanic, it is manageable. However, it is considered a difficult job for a beginner because it requires the complete removal of the front bumper cover, which involves dozens of clips and fasteners. The process can take several hours and requires care to avoid scratching paint or breaking plastic tabs.
Helpful Videos
Technical Specifications
OEM Part Numbers: 71106-TJB-A00 (Lower Grille for Base/Tech/Advance) 71108-TJB-A00 (Left Garnish for Base/Tech/Advance) 71108-TJB-A50 (Left Garnish for A-Spec)
The active grille shutter is an integrated component of the lower front bumper grille assembly. It consists of plastic louvers, a frame, and an electric actuator motor.
