1981 Saab 900 Air Flow Meter: Diagnosing K-Jetronic Fuel Issues

Understanding the 1981 Saab 900's Unique Air Flow Meter

The 1981 Saab 900 uses a Bosch K-Jetronic fuel injection system, often called CIS for Continuous Injection System. This system is mostly mechanical, and its air flow meter is very different from the electronic sensors found on later vehicles. Instead of a hot wire or sensor element, it features a large metal plate that pivots upwards as the engine draws in air. The more air that flows past, the higher the plate lifts. This movement is physically linked to a control plunger in the fuel distributor, which sits directly on top of the air flow meter assembly. As the plunger moves, it opens or closes tiny slits, continuously adjusting the volume of fuel delivered to the injectors. Because this is a pre-OBDII vehicle, there are no diagnostic trouble codes to help pinpoint a failure; diagnosis relies on observing symptoms and performing physical tests.

Common Symptoms of a Failing Air Flow Meter

A problem with the K-Jetronic air flow meter can cause a wide range of drivability issues. Since it directly controls the fuel mixture, any malfunction will immediately affect how the engine runs. Common symptoms include:

• Hard Starting (Hot or Cold): The engine cranks but struggles to start, or starts and immediately stalls. This can be caused by a sticking sensor plate providing an incorrect fuel mixture for starting.
• Rough or Bouncing Idle: The engine idles erratically, with the RPMs fluctuating up and down, and may stall when you come to a stop.
• Hesitation or Stumbling on Acceleration: When you press the gas pedal, the car may hesitate, buck, or lose power before picking up speed. This is often a sign the sensor plate is not moving smoothly to match the increased airflow.
• Poor Fuel Economy and Rich Running Condition: If the meter is sending a signal for too much fuel, you may notice a drop in gas mileage and potentially black smoke from the exhaust.

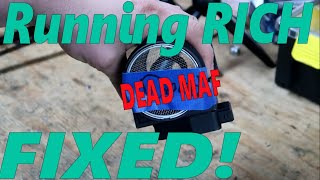

🎬 Watch how a bad air meter causes rich running on a Saab 900
• Backfiring: An incorrect air-fuel mixture can lead to backfires, which can sometimes be forceful enough to damage the air flow meter plate itself, causing it to bend and stick permanently.

Diagnosing the Air Flow Meter

Troubleshooting the CIS air flow meter is a hands-on process:

1. Check for Smooth Plate Movement: The most common failure is a sticking sensor plate. To check this, first disconnect the battery. Remove the large rubber intake boot from the top of the air flow meter. You will see the circular sensor plate. Gently press down on the edge of the plate with your fingers. It should move downwards smoothly with light, consistent resistance and return to its resting position without any binding or getting stuck. Any grittiness or sticking points indicate a problem, often caused by fuel varnish or dirt buildup.
2. Inspect for Backfire Damage: While inspecting the plate, look for any signs of dents or bending. A backfire can force the plate upwards violently, damaging it or the housing and causing it to bind.
3. Look for Vacuum Leaks: The large rubber boot on top of the air flow meter is a common source of vacuum leaks. Inspect it thoroughly for cracks, splits, or loose clamps. Any unmetered air entering the system after the sensor plate will cause a lean running condition and a rough idle.

Buying a Used 1981 Saab 900 Air Flow Meter: What to Check

Since new OEM units are extremely rare and expensive, a reliable used air flow meter is often the best option. Here’s what to look for:

• Verify Smooth Plate Movement: This is the most critical check. Ask the seller to confirm the sensor plate moves freely without sticking. If buying in person, perform the test yourself. Do not purchase a unit with a binding plate, as it is likely unusable without a difficult and often unsuccessful cleaning or repair.
• Inspect the Unit for Tampering: Look for drill holes in the housing or pry marks around the fuel distributor. Some people attempt to adjust the mixture by altering the internals, often with poor results. Avoid units that show obvious signs of being tampered with.
• Check for Physical Damage: Look for dents in the housing or on the sensor plate itself. Inspect the rubber intake boot (if included) for cracks. Ensure the electrical connector is not corroded or damaged.
• Match the Part Number: It is crucial to match the Bosch part number exactly. For the 1981 Saab 900, the primary Bosch number is 0438100032. While other CIS meters look similar, they are calibrated differently for other vehicles and will not work correctly.
• Why Used OEM is a Good Choice: For the K-Jetronic system, there are no modern aftermarket equivalents. The options are a tested used OEM unit, a professionally remanufactured one, or a very expensive New Old Stock (NOS) part. A good used unit that passes the physical inspection is often a cost-effective and reliable solution, as these components were built to last.

Cost Comparison

Replacement Difficulty

Replacing the air flow meter assembly is moderately difficult and requires care, especially when dealing with fuel lines.

• Difficulty Rating: 3 out of 5
• Estimated Time: 1.5 - 2.5 hours
• DIY Feasible: Yes, for mechanics comfortable with fuel systems.

Technical Specifications & Part Numbers

• System Type: Bosch K-Jetronic (CIS) Mechanical Fuel Injection
• Saab OEM Part Number: 9331109
• Bosch OEM Part Numbers: 0438100032, 0438120114
