2003-2014 Volkswagen Beetle Airbag: Takata Recalls, SRS Lights, and Replacement Guide

Vehicle Generation Overview: 2003-2011 vs. 2012-2014

This guide covers two distinct generations of the Volkswagen Beetle, which have different airbag systems and common issues. It is critical to identify your vehicle's generation before diagnosing problems or purchasing parts.

• First Generation (2003-2011 VW New Beetle): This A4 platform vehicle is known for issues with crash sensors and wiring connectors causing the SRS light to illuminate. Part numbers for this generation typically begin with 1C0.
• Second Generation (2012-2014 VW Beetle): This A5 platform vehicle is heavily affected by the widespread Takata airbag inflator recalls. Part numbers for this generation typically begin with 5C5.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

Numerous safety recalls affect the 2003-2014 Beetle airbag systems. These repairs are performed free of charge by any authorized Volkswagen dealer. Always check your vehicle's VIN on the NHTSA website for open recalls.

Second Generation: 2012-2014 Beetle

• Takata Driver's Airbag Inflator Recall (NHTSA Campaign 69BC): This is the most critical issue for this generation. It affects all 2012-2014 Beetle and Beetle Convertible models. The propellant in the driver's side airbag inflator can degrade over time due to heat and humidity. In a crash, this can cause the metal inflator to rupture, sending shrapnel through the airbag and into the cabin, which can cause serious injury or death.
• Passenger Occupant Detection System (PODS) Recall (NHTSA Campaign 12V540000): Affects certain 2012-2013 Beetles equipped with leather sport seats. If the leather seat gets wet, the control module may fail to detect a child seat, preventing the passenger airbag from turning off as it should. This increases the risk of injury to a child in the front seat during a crash.

First Generation: 2003-2011 New Beetle

• Frontal Crash Sensor Recall (NHTSA Campaign 08V178000 / VW Code R6): Affects 2004-2005 New Beetle and 2003-2005 New Beetle Convertible models with dual-stage airbags. A solder joint on the frontal crash sensors can crack under high temperatures. This causes the airbag light to turn on and may cause the airbags to deploy with more force than intended in a low-speed crash, increasing injury risk.
• Side Airbag Connector TSB (TSB 69-08-02): While not a recall, a common issue on many VWs from this era is an illuminated airbag light caused by a faulty yellow connector under the driver or passenger seat. This triggers fault codes 01217 (driver side) or 01218 (passenger side) for high resistance in the side airbag igniter. The common professional repair is to 🎬 Watch: How to fix codes 01217 and 01218 remove the connector and permanently solder the wires together.

Symptoms of a Failing Airbag or SRS Component

The most obvious symptom is an active airbag warning light, but other issues can point to a specific component failure.

• Persistent Airbag/SRS Warning Light: This is the primary indicator of a fault. When this light is on, the entire airbag system is deactivated.

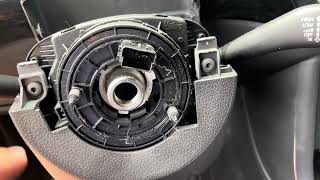

• Horn, Cruise Control, or Steering Wheel Buttons Not Working: If these features fail simultaneously with the airbag light, the most likely culprit is a failed clock spring. The clock spring is a coiled electrical ribbon that allows the steering wheel to turn while maintaining electrical connections.
• Clicking or Scraping Noise When Turning Steering Wheel: This can indicate a physically broken or misaligned clock spring inside the steering column.
• Fault Codes: A professional scan tool (not a basic code reader) is needed to read SRS codes. Common codes point to specific issues like high resistance in an igniter (often a clock spring or wiring issue) or a faulty sensor.

Buying a Used Airbag: What to Look For

Sourcing a used OEM airbag can be a cost-effective solution, but it requires extreme caution. Professional repair shops and insurance companies will not use salvaged airbags due to liability concerns. If you are purchasing one for a professional to install, follow these guidelines:

• Verify Reputability: Only buy from established, professional auto recyclers who guarantee their parts have not been deployed and are stored correctly.
• Match Part Numbers Exactly: The OEM part number on the replacement airbag MUST match the one in your vehicle. There are many variations based on generation (1C0 vs. 5C5), body style (Coupe vs. Convertible), and features (single-stage vs. dual-stage). Do not rely on visual appearance alone.
• Inspect the Connectors: Ensure all electrical connectors are intact, with no bent pins, corrosion, or cut wires. The plastic housings should not be cracked or brittle.
• Check for Recall Status: For 2012-2014 models, it is extremely difficult to know if a used airbag contains a recalled Takata inflator. Because of this risk, sourcing a new OEM part from a dealer is the safest option for these years.
• Look for Physical Damage: Never buy an airbag that shows any signs of water damage, fire damage, or physical impact. The outer cover should be clean and free of tears or deep scratches.
• Ask About the Donor Vehicle: If possible, get the VIN of the vehicle the part was removed from. This allows you to check its history for accidents and open recalls.

System Reset and Calibration

After an airbag, clock spring, or sensor is replaced, the SRS control module must be reset. Disconnecting the battery will not clear the airbag light. A specialized diagnostic tool, such as VCDS (VAG-COM) or a professional-grade scanner, is required to communicate with the airbag control module (Address 15), read and clear fault codes, and ensure the system is functioning correctly. If the original airbag deployed, the SRS control module itself stores crash data and must be replaced or professionally reset; it cannot be cleared with a standard scan tool.

Cost of Replacement

Prices can vary significantly based on the part needed and your location. Recall-related repairs are always free at a VW dealership.

Frequently Asked Questions (FAQ)
