2011-2013 Ford Fiesta Air Bag Control Module: A Guide to Replacement and Programming
This guide covers the essential details for replacing the airbag control module in a 2011-2013 Ford Fiesta, focusing on mandatory programming, part number compatibility, and known issues.
- Programming is mandatory. A replacement module must be programmed to your vehicle's VIN by a dealer or qualified shop to function.
- A used module must come from a vehicle with no airbag deployment and be free of stored crash data.
- Recall 12C26 required a software update. Programming a replacement module ensures it has the latest, safest software.
- The module is located under the center console and can be susceptible to liquid spills; inspect any used part for corrosion.
Symptoms of a Failing Air Bag Control Module
The most common and obvious sign of a problem with the Air Bag Control Module is an illuminated airbag warning light on your dashboard. Unlike some other warning lights, the airbag light indicates that the entire safety system is disabled and will not function in a crash. You cannot simply reset the light; the underlying fault must be corrected.
A professional diagnostic scan tool is required to read the specific fault codes from the module. Common codes associated with module failure include:
- B1193 or B1231: These codes indicate that crash data is stored in the module from a previous accident. The module must be reset or replaced.
- U3000: This is a general control module failure code, often pointing to an internal electronic fault.
- B1342: This code specifically means the Electronic Control Unit (ECU) within the module is faulted.
- Circuit-related codes like B0001 (driver airbag circuit) or B0020 (passenger airbag circuit) can sometimes be caused by a faulty module, though they often point to issues with wiring, the clock spring, or the airbags themselves.
Known Issues, Recalls, and Technical Service Bulletins (TSBs)
Safety Recall 12C26 / NHTSA 12V488000
Ford issued a significant recall for 2011-2013 Fiesta models because the passenger side curtain airbag would not deploy in a side-impact crash if the front passenger seat was empty. This condition posed a risk to an occupant in the right-rear seat. The fix was not a part replacement, but a mandatory software update for the Air Bag Control Module. Dealers were instructed to reprogram the module free of charge to change this behavior. When purchasing a used module, it is impossible to know if this critical update was performed, reinforcing the need for professional programming after installation.
Warning: A used module that has not had the 12C26 recall software applied will leave rear passengers with reduced protection in certain types of collisions.
Programming and Calibration: The Critical Step
A replacement Air Bag Control Module will not work until it is programmed to your vehicle's specific VIN. This is not an optional step. An unprogrammed module will leave the airbag light on and the system inoperative.
Programming is required for several reasons:
- VIN Matching: The module is tied to the vehicle's VIN as an anti-theft and safety measure.
- Configuration: The module needs to know the specific options of your vehicle (e.g., number of airbags, seat types).
- As-Built Data: This is Ford's term for the factory configuration file for your specific car. A new or used module must be loaded with your car's unique As-Built data to function correctly. 🎬 See how to program a Ford SRS module using As-Built data
This programming must be done by a Ford dealership or a well-equipped independent repair shop with a J2534 pass-through device and a subscription to Ford's diagnostic software (like Ford IDS or FDRS). The average DIY mechanic or local shop without this specific equipment cannot perform this task.
Buying a Used Air Bag Control Module
A used OEM module is a cost-effective alternative to a new one, but careful purchasing is essential for this critical safety component.
- Verify No Crash Data: Only purchase a module from a reputable recycler that guarantees the part was sourced from a vehicle with no airbag deployment. A module with stored crash data is useless until it is professionally reset by a specialized service.
- Match the Engineering Part Number: The number printed directly on the module is the engineering number (e.g., AE83-14B321-AC). It is critical to match this number. The last two letters are the revision suffix. While a newer revision (like 'AD') can sometimes replace an older one ('AC'), it is safest to match the entire number exactly. The service part numbers (e.g., AE8Z-14B321-A) are used for ordering new parts and may supersede older versions.

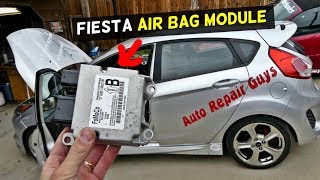

- Inspect for Damage: The module is located under the center console, near the emergency brake handle. This location is 🎬 Watch this step-by-step Ford Fiesta airbag module removal guide vulnerable to spills and water intrusion. Carefully inspect the casing and electrical pins for any signs of corrosion or moisture damage.
Pro Tip: When you call a salvage yard, give them the engineering number from your original part (e.g., AE83-14B321-XX) and your vehicle's VIN. This helps them find a compatible, non-crashed part and ensures you get the right component for your car's specific configuration.
Cost Comparison
Replacing the airbag module involves the cost of the part and the labor for installation and programming. Prices can vary by location and supplier.
| Item | Estimated Cost |
|---|---|
| New OEM Module | $365 - $550 |
| Used OEM Module | $50 - $150 |
| Crash Data Reset Service (Mail-in) | $50 - $150 |
| Shop Labor (Installation & Programming) | $110 - $300 |
Frequently Asked Questions (FAQ)
Can I install the module myself and drive to the dealer for programming?
Yes, you can physically install the module yourself to save on labor costs. The vehicle will be drivable, but the airbag system will be completely inactive and the warning light will remain on until it is professionally programmed.
Why can't I just reset the airbag light with a standard OBD-II scanner?
Standard OBD-II scanners can only read and clear codes from the engine and emissions systems. They cannot access the Supplemental Restraint System (SRS). A professional-grade scanner with SRS capabilities is needed to even read the fault codes, and it cannot program a new module or clear stored crash data.
What's the difference between an engineering part number and a service part number?
The engineering number (e.g., AE83-14B321-AC) is physically stamped on the part itself and is used during manufacturing. The service number (e.g., AE8Z-14B321-A) is used by dealerships to order a replacement part and is what you'll find on the box. The service number may supersede several engineering revisions. When buying used, always try to match the engineering number.
Can I use a module from a car that was in an accident?
No, not without having it professionally reset first. Once airbags deploy, the module records "crash data" that permanently locks it. This data cannot be cleared without specialized equipment. Buying a module from a non-crashed vehicle is the safest and most direct path to repair.
Helpful Videos
Technical Specifications
OEM Part Numbers: AE8314B321AC AE8314B321AD AE8314B321AE AE8314B321AF AE8314B321AG AE8314B321AH AE8314B321AJ AE8Z-14B321-A AE8Z14B321A BE8Z-14B321-A BE8Z-14B321-B
Location: Under the center console, adjacent to the handbrake lever.
