2006 Chrysler Pacifica Airbag Module: Solving the Airbag Light and Programming Needs

Symptoms of a Failing 2006 Pacifica Airbag Module

The most common and immediate sign of a problem with the Airbag Control Module, or any part of the SRS system, is an illuminated airbag warning light on the instrument cluster. This light indicates that the ORC has run a self-check and detected a fault, disabling the system as a safety precaution. You should never ignore this light, as it means the airbags will not deploy in an accident.

• Persistent Airbag Warning Light: The light stays on continuously after the initial startup sequence.
• Flashing Airbag Warning Light: In some cases, the light may flash to indicate a specific type of fault.
• Stored Diagnostic Trouble Codes (DTCs): A professional scan tool can read specific codes from the module. Common codes indicating an internal module failure include B2208 (Occupant Restraint Controller Internal Module Fault) and U0151 (Lost Communication with Restraint Control Module). Other codes may point to faults in related components like sensors or wiring, which the module is responsible for monitoring.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While no recalls directly target the Airbag Control Module for the 2006 Pacifica, it's important to be aware of related safety campaigns. The Takata airbag recall, which affected millions of vehicles including many Chrysler models, concerned the airbag inflators, not the control module itself. However, issues with other parts of the SRS system can trigger faults in the module.

• Front Air Bag Crash Sensors: A recall (NHTSA Campaign ID: 10V008) was issued for 2005-2006 Chrysler minivans due to corrosion of the frame rail-mounted front crash sensors, which could lead to delayed or improper airbag deployment. While the Pacifica was not explicitly included, the technology is similar. A faulty sensor will cause the ORC to log a code and turn on the airbag light.
• Occupant Classification System (OCS): The sensor mat in the passenger seat, which detects the presence and weight of a passenger, is a common point of failure. A fault here (often code U0154) will trigger 🎬 Watch: How to fix the U0154 airbag code the airbag light as the ORC cannot determine if the passenger airbag should be enabled or disabled.
• Wiring and Connectors: Loose or corroded connectors, especially the yellow connectors under the front seats for the seat belt pre-tensioners and OCS, are a frequent cause of intermittent airbag lights.

Programming and Calibration: The Most Critical Step

Replacing the Airbag Control Module is not a simple plug-and-play repair. Programming is mandatory for the system to function correctly.

• VIN Programming: A new or used module must be programmed with your vehicle's specific Vehicle Identification Number (VIN). The ORC is coded to the specific equipment of the car it came from. Without matching the VIN, the vehicle's other computers will not recognize it, and the airbag system will remain disabled.
• Configuration: The module must also be configured for the specific options on your Pacifica, such as the presence of side roof airbags. The part number 04606931AC is specified for models with side roof airbags. Using a module from a vehicle without this option (like part number 04606933AC) will result in a persistent fault.
• Who Can Program It? A Chrysler dealership or a qualified independent shop with a high-level diagnostic scan tool (such as WiTech, Autel, or Snap-on) can perform the programming. Standard OBD-II code readers cannot program modules.

Buying a Used 2006 Pacifica Airbag Module

A used OEM module is a cost-effective alternative to a new one, but careful purchasing is essential for this critical safety component.

1. Match the Part Number Exactly: The part number on the replacement module must be identical to the one in your vehicle. For the 2006 Pacifica with side roof airbags, the primary part number is 04606931AC (or its predecessors 040606931AC and 4606931AC). Do not use a module intended for a model without side roof airbags.
2. Verify No Crash Data: This is the most important consideration. If a module is taken from a vehicle where the airbags deployed, it will have "crash data" permanently stored. This data locks the module and cannot be cleared with a standard scan tool. You must buy from a reputable recycler who guarantees the part is from a non-wrecked vehicle or has been professionally reset.
3. Inspect for Damage: The ORC module is typically located under the center console, between the front seats. Before buying, inspect the unit for any signs of physical damage, cracks in the casing, or corrosion on the electrical connector pins, which could indicate water damage from spills.

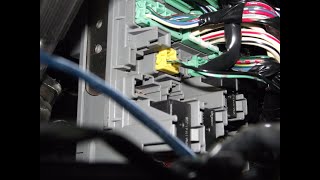

4. Consider a Reset Service: If you have your original module and it only has crash data stored (no internal hardware failure), you can mail it to a specialized service that will professionally clear the crash data and restore it to factory condition. 🎬 See this guide on resetting your airbag module This is often cheaper than buying a used module and guarantees it is correct for your vehicle, though programming may still be required upon reinstallation.

Cost Breakdown

Prices can vary based on location and supplier. The primary cost driver for replacement is whether you buy a new OEM part or a used/remanufactured one.
