2016-2018 Camaro Active Noise Cancellation Module: Diagnosis and Programming Guide

Symptoms of a Failing ANC Module

A faulty Active Noise Cancellation module can create more noise than it eliminates. Because it is integrated with the main audio system, its failure can be confusing to diagnose. Symptoms are often audible and can occur even when the stereo is turned off.

• Unusual Humming, Buzzing, or Popping: A constant low-frequency hum, pop, or buzzing sound from the speakers that doesn't change with radio volume is a primary symptom.
• Deep Bass Drone at Idle or Cruise: The system may incorrectly generate a signal, causing a deep, vibrating drone inside the cabin. This can be especially noticeable at certain RPMs.

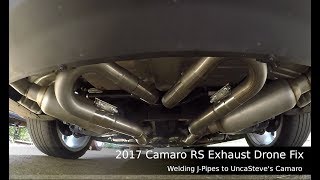

• Feedback with Aftermarket Audio/Exhaust: This is a very common issue. If you've installed an aftermarket exhaust or subwoofer, the ANC microphones may pick up the new sound profile and try to 'cancel' it, resulting in a loud, unpleasant feedback loop or drone. 🎬 See how to bypass ANC after installing an aftermarket amp. In this case, the module isn't failing, but it is reacting to a change it wasn't designed for.
• System Inoperative: The module may simply fail, resulting in a noticeable increase in engine and road drone inside the cabin compared to when it was working correctly.

Failures in this module can also set communication-related Diagnostic Trouble Codes (DTCs), most commonly "U" codes, which would be found using a professional-grade OBD-II scanner.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

As of mid-2026, there are no specific recalls or widespread TSBs issued by General Motors for the Active Noise Cancellation module itself on the 2016-2018 Camaro.

However, owners should be aware of other recalls for this vehicle generation:

• Recall 16V089000: Some 2016 models were recalled because the radio could fail to provide critical audio warnings, like for an unfastened seatbelt or a key left in the ignition.
• Recall 25V175000: Certain 2017-2018 models were recalled for a potential loss of electric power steering (EPS) assist.
• Recall 21V217000: A recall was issued for the plastic 'Camaro' emblem on the steering wheel airbag cover, which could separate during deployment.

You can verify if your specific vehicle is affected by these or any other recalls by entering your VIN on the NHTSA website.

Programming and Installation Requirements

This is the single most important factor to understand when replacing this part. The module is part of the vehicle's computer network and is tied to the specific options and security credentials of the car it was built for. Failure to program a replacement module will result in it not working at all.

Who Can Program the Module?

• GM Dealership: A dealership can perform the programming using the GM Service Programming System (SPS). 🎬 Watch how to start programming modules with GM SPS2. This typically costs about one hour of labor.
• Independent Repair Shop: A well-equipped independent shop that subscribes to GM's Techline Connect software and uses a J2534 pass-thru tool can also perform the programming. Not all shops have this capability, so you must ask specifically for 'GM module programming'.
• Mail-In Programming Service: Some specialized businesses offer a service where you can send them a used module, and they will program it with your car's VIN before shipping it back to you, making it ready for installation.

Buying a Used Active Noise Cancellation Module

Given the high cost of a new module, a used OEM part from a reputable recycler is an excellent, cost-effective option. These modules are generally reliable, and failure is uncommon. Here’s what to look for:

• Verify the Part Number: The most critical step. For 2016-2018 Camaros with option code NKC (Active Noise Control), the primary part number is 84088422. This number supersedes the earlier part number 23394112. If you are buying a used part, either of these numbers should work, but confirm with the seller.
• Check Option Code NKC: This module is only for vehicles originally equipped with the Active Noise Control system, identified by RPO code NKC on the vehicle's service parts identification label (usually in the trunk or glove box).
• Physical Inspection: The module is located in the trunk. When inspecting a used part, check the connectors for any signs of corrosion, bent pins, or water damage. Ensure the casing is not cracked or showing signs of being pried open.
• Budget for Programming: Remember that the money you save on the part must be balanced with the cost of programming. Factor in $100-$200 for a dealership or independent shop to program the module to your car.

Replacement Location and Procedure

The physical replacement of the ANC module is straightforward and can be performed by a DIY mechanic with basic tools.

1. Location: The module is located in the trunk of the 2016-2018 Camaro. You will need to remove the trunk floor covering and possibly some side trim panels to gain access.
2. Disconnect the Battery: Before working on any electronic module, always disconnect the negative terminal of the vehicle's battery.
3. Remove the Old Module: Carefully unplug the electrical connectors. Be gentle with the plastic locking tabs. Unbolt the module from its mounting bracket.
4. Install the New Module: Bolt the replacement module into place and reconnect the electrical connectors.
5. Reconnect Battery and Program: After reassembling the trunk trim and reconnecting the battery, the vehicle must be taken to a dealer or qualified shop for programming.

Cost Comparison

Prices can vary by supplier and location, but this provides a general estimate as of mid-2026.
