2004-2009 Toyota Prius ABS Actuator Failure: Noises, Codes, and Replacement Costs
This guide explains the extremely common ABS brake actuator failure on the second-generation Toyota Prius, covering symptoms, diagnostic codes, and replacement options.
- This is a critical safety failure; do not drive the vehicle if you have a hard/spongy brake pedal and multiple brake-related warning lights.
- Replacement requires a specialized, computerized brake bleeding and calibration procedure using a tool like Toyota Techstream; it is not a complete DIY job for most mechanics.
- Toyota acknowledged this widespread problem with an extended warranty program (ZG1) that has since expired for all 2004-2009 models.
- Due to the high cost of a new OEM part (over $1,500), a warrantied used OEM unit is a common and cost-effective repair strategy.
Symptoms of a Failing ABS Actuator Assembly
A failing ABS actuator on a 2004-2009 Prius provides several distinct and alarming symptoms. This is a very common failure point for this vehicle. Recognizing these signs early is key to addressing a critical safety issue.
- Multiple Dashboard Warning Lights: The most common sign is the simultaneous illumination of the ABS, (BRAKE), and VSC warning lights, often referred to as the 'Christmas tree' effect. A high-pitched, continuous beep may also sound when starting the car or opening the door.
- Loud, Repetitive Noises: A loud buzzing, groaning, or 'barking' sound from the driver's side of the engine bay is a classic symptom. This is the sound of the electric pump motor running excessively, trying to build pressure that the system can no longer hold due to an internal leak. This noise may occur frequently, even when the brakes are not being used.
- Changes in Brake Pedal Feel: The brake pedal may feel unusually soft and spongy, or conversely, become extremely hard to press with little braking effect. This indicates a serious failure in the power braking assist.
- Diagnostic Trouble Codes (DTCs): A scan tool capable of reading ABS codes will often find specific codes stored in the system. The most common codes confirming this failure are:
- C1256: Accumulator Low Pressure
- C1391: Abnormal Leak in Accumulator
- C1252: Pump Motor Malfunction
- C1253: Pump Motor Relay Malfunction
- U0121: Lost Communication With ABS Control Module 🎬 Watch: How to diagnose and fix these common ABS codes
Warning: If you are experiencing these symptoms, especially a combination of the warning lights and changes in brake pedal feel, it is unsafe to drive the vehicle. You risk a sudden and significant loss of braking power. The vehicle should be serviced immediately.
Known Issues, TSBs, and Warranty Extension
The high failure rate of this part was so widespread that Toyota acknowledged the issue. While there was no formal safety recall, Toyota did issue a Warranty Enhancement Program (ZG1). This program extended the warranty coverage for the brake actuator assembly to 10 years or 150,000 miles for primary coverage, and until December 31, 2017 for secondary coverage, regardless of mileage. This program has now expired for all 2004-2009 vehicles, but its existence confirms this is a well-documented, common problem.
Toyota also released Technical Service Bulletin (TSB) BR001-07 (later updated to T-SB-0307-08) for some 2004-2007 models that had a squeaking noise from the actuator. The fix involved either bleeding the system or replacing the actuator assembly.
Buying a Used ABS Control Module
Due to the extremely high cost of a new OEM brake actuator assembly, a quality used OEM unit is the most popular and practical repair solution. Here’s what to look for:
- Verify Part Numbers: It is critical to match the part number from your original unit. The entire assembly will have a primary part number. Common part numbers for the 2004-2009 Prius include 44500-47090, 44500-47091, 44510-47050, and 44510-47051. Check the white sticker on your original module to find the correct number.
- Physical Inspection: Before purchasing, inspect the used unit for any signs of physical damage, heavy corrosion, or brake fluid leaks, especially around the electrical connector and brake line ports. The unit should be clean and free of obvious damage.
- Source and Warranty: Purchase from a reputable seller that offers a warranty. A 90-day or longer warranty provides protection against receiving a defective unit. Given the nature of this part, a warranty is highly recommended.
- Why Used OEM is a Good Choice: A used OEM actuator that has been tested and comes from a lower-mileage vehicle can be a reliable and cost-effective alternative to a new part costing thousands of dollars. Aftermarket remanufactured units have mixed reviews and may not offer the same longevity as an original Toyota part.
Replacement and Programming Requirements
Warning: This is not a simple DIY replacement for most home mechanics. While the physical removal and installation are possible, the final steps are complex and require specialized tools.

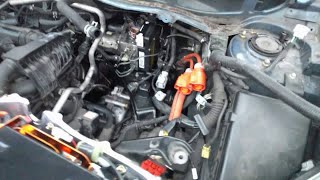

The replacement process involves disconnecting the 12V battery and high-voltage service plug, removing the windshield cowl and wipers, and often the hybrid system inverter to gain access to the actuator. 🎬 See this step-by-step guide on how to remove the module Flare nut wrenches should be used on the brake lines to avoid stripping them.
🎬 Watch: Complete 2004-2009 Prius ABS actuator replacement walkthroughProgramming and Calibration are Required
After the new or used actuator is installed, it MUST be programmed and calibrated to the vehicle. This is not optional.
- Computerized Brake Bleeding: The Prius brake system cannot be bled manually. A diagnostic scan tool, such as Toyota's Techstream software, is required to cycle the ABS pump and solenoids in a specific sequence to properly remove all air from the system. Failure to do this will result in a spongy pedal and poor brake performance.
- Linear Valve Offset Calibration: After bleeding, the scan tool must be used to perform a 'Linear Valve Offset' calibration. This procedure teaches the computer the characteristics of the solenoids in the replacement actuator. If this step is skipped, the system will not function correctly and will likely set a C1345 code.
Because of these requirements, the final steps of the replacement must be performed by a Toyota dealer or an independent repair shop with the proper scan tool and experience with Toyota hybrids.
Estimated Repair Costs
The cost to replace the brake actuator assembly can vary significantly based on the part source.
| Part Source | Estimated Part Cost |
|---|---|
| New OEM | $1,300 - $2,500+ |
| Remanufactured (Aftermarket) | $500 - $1,000 |
| Used OEM | $250 - $600 |
| Shop Labor | $450 - $800 |
Pro Tip: Given that shop labor for the complex bleeding and calibration procedure is a significant cost, many owners choose to save money by purchasing a warrantied used OEM part and having a qualified shop perform the installation and programming.
Frequently Asked Questions
Does the replacement ABS module need to be programmed?
Yes, absolutely. After installation, the brake system must be bled using a diagnostic tool like Toyota Techstream. Following the bleed, a 'Linear Valve Offset Calibration' must be performed to synchronize the new module with the vehicle's systems. Skipping these steps will result in an inoperative and unsafe brake system.
Can I drive my Prius with a failing ABS actuator?
It is strongly not recommended. When the warning lights are on and you hear the pump running constantly, the main power-assist for your brakes is compromised. You may experience a sudden increase in pedal effort needed to stop the car, which is extremely dangerous in an emergency.
Was there a recall for the 2004-2009 Prius brake actuator?
No, there was not a formal safety recall for this specific issue. However, Toyota created a Warranty Enhancement Program (ZG1) that extended the warranty due to the high number of failures. This program has since expired for all vehicles in this year range.
Why is a used OEM part often better than a new aftermarket one for this repair?
The OEM brake actuator is a highly complex, integrated component. While new OEM parts are prohibitively expensive, a tested, low-mileage used OEM unit is often more reliable than aftermarket remanufactured options, which can have inconsistent quality. A used OEM part, when sourced from a reputable supplier with a warranty, provides a good balance of cost and reliability.
Helpful Videos
Technical Specifications
OEM Part Numbers: 44500-47090 44500-47091 44500-47140 44500-47141 44510-47050 44510-47051
The complete unit is often referred to as the Brake Actuator Assembly, which includes the ABS pump, accumulator, and electronic control module.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
