Subaru Legacy & Outback ABS/VDC Module Failure (2007-2017): Lights, Codes & Replacement

Symptoms of a Failing ABS Control Module

When the ABS/VDC module in a 2007-2017 Subaru Legacy or Outback fails, it typically announces itself with a distinct and alarming combination of dashboard lights. Before assuming the worst, it's important to rule out simpler issues like a bad wheel speed sensor, a faulty brake light switch, or even a weak battery, which can sometimes cause similar warnings.

• The "Trifecta" of Warning Lights: The most common sign of failure is the simultaneous illumination of the ABS light, the VDC/Traction Control light, and a flashing BRAKE light. This indicates a fault has been detected that disables the entire stability and anti-lock braking system.
• Unresponsive or Hard Brake Pedal: The brake pedal may feel unusually stiff, requiring more effort to press, or it may feel spongy and less effective.
• Wheels Locking Up: During a hard or sudden stop, the wheels may lock and skid. This is a clear sign the anti-lock function is not working.
• Inaccurate Speedometer: In some cases, a failing ABS module can disrupt the vehicle speed reading, causing the speedometer to behave erratically or drop to zero, as it relies on data from the wheel speed sensors.

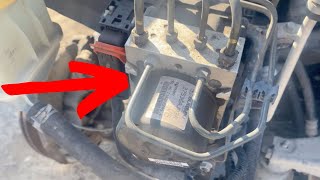

• ABS Pump Runs Constantly: You may hear a buzzing or humming sound from the ABS pump assembly (located in the engine bay) that doesn't stop, even when the car is parked.

Common Diagnostic Trouble Codes (DTCs)

A professional scan tool that can read Subaru-specific chassis codes is necessary for proper diagnosis. The following codes are strong indicators of an ABS/VDC system problem:

• C0071 (Steering Angle Sensor Output): This is a very common code that often appears when the VDC module has an issue. It can sometimes be triggered by a lost calibration after a wheel alignment or battery replacement, but frequently accompanies a failed module.
• C0073 / C0074 (Pressure Sensor Faults): These codes point to a failure of the pressure sensors located inside the ABS/VDC hydraulic unit. When these codes are present, it almost always means the entire module assembly needs to be repaired or replaced.
🎬 Watch: Diagnosing Subaru ABS codes C0071, C0073, and C0074
• C0054 (Brake Light Switch): This code can trigger ABS/VDC lights. Subaru released a technical service bulletin (TSB 06-48-15R) with a redesigned switch to fix this issue, so it should be investigated before replacing the entire module.
• C0042 (Power Supply Voltage Failure): Often appears with other codes and can indicate a failing battery or a bad connection, which should be checked first.

Known Issues, Recalls, and TSBs by Generation

Fitment and known issues for this part can be very specific to the vehicle's generation and options.

2010-2014 Legacy & Outback

This generation also had a recall for the steering roll connector (clock spring) on 2010 models, which could cause the driver's airbag and other steering wheel controls to fail.

2015-2017 Legacy & Outback

For these later models, the most critical compatibility factor is the presence of the EyeSight Driver Assist Technology. The ABS/VDC module is different for vehicles equipped with EyeSight versus those without. You must match the part number to your vehicle's specific options.

All Years (2007-2017)

A common issue across many Subaru models is a faulty brake light switch, which can cause the ABS and VDC lights to illuminate with code C0054. Subaru issued TSB 06-48-15R with an improved part. 🎬 See this step-by-step brake light switch replacement walkthrough Always check for this simpler, cheaper fix before condemning the expensive ABS module.

Buying a Used ABS Control Module: A Buyer's Guide

Due to the high cost of a new OEM module, a quality used part is an excellent value. However, compatibility is extremely specific. Getting the wrong part will result in it not working, even after programming. Here is what you MUST verify:

1. Match the OEM Part Number: This is the single most important step. Locate the part number on your original module and match it exactly. The module has a sticker with the number, which will be one of the many variants like 27536AJ04A, 27536AL00A, etc. Do not rely on visual appearance alone.
2. Verify Vehicle Options: The part you buy must come from a vehicle with the same key options as yours. The main ones are:
   • Vehicle Dynamics Control (VDC): Most 2007-2017 Legacy and Outback models have VDC. However, some very early base models may not. A module from a VDC car will not work in a non-VDC car, and vice-versa.
   • EyeSight System (2013+): If your car has EyeSight (indicated by stereo cameras at the top of the windshield), you absolutely need a module from another EyeSight-equipped vehicle.
   • Transmission Type: Especially for the 2010-2014 generation, modules for manual and automatic transmissions are different.
3. Physical Inspection: When you receive the used module, inspect the electrical connector pins for any signs of corrosion, bending, or damage. Check the housing for cracks or evidence of fluid leaks.
4. Why Used OEM is a Good Choice: For a complex electronic part like this, a used OEM module that has been tested and verified is often more reliable than a cheap, new aftermarket alternative. OEM modules are built to the manufacturer's exact specifications for performance and durability, whereas aftermarket quality can be inconsistent.

Programming and Calibration: This is NOT a Plug-and-Play Part

You cannot simply install a replacement ABS/VDC module and expect it to work. It requires specific software procedures to sync it with your vehicle.

The process involves two main steps:

1. VIN Programming: A technician uses a compatible scan tool to write your car's VIN into the replacement module. This allows it to communicate with the engine computer (ECU) and other vehicle systems.
2. Zero Point Calibration: After installation and programming, the technician must perform a 'Zero Point Calibration'. This procedure resets the baseline for the steering angle sensor and yaw/G-sensors, telling the new module where the 'straight ahead' position is. Without this calibration, the VDC system will not work correctly and may throw a C0071 code.

A Subaru dealer can perform these procedures with their proprietary Subaru Select Monitor (SSM) software. However, many independent repair shops with high-end professional scan tools (such as Autel or Snap-on) can also successfully program and calibrate these modules. Always confirm with the shop that they have the capability to program a Subaru VDC module before beginning the work.

Replacement Cost Breakdown

The cost to replace the ABS/VDC module can vary significantly depending on the source of the part and labor rates.
