2017-2024 Ram 2500 & 3500 ABS Module: Recall, Programming, and Failure Guide
Diagnose ABS & traction control lights on your Ram HD, understand the critical 2017-2018 recall, and learn why programming a replacement module is mandatory.
- A replacement ABS module MUST be programmed to your truck's VIN using a dealer tool or software like AlfaOBD.
- A major safety recall (NHTSA 24V-896) exists for 2017-2018 models due to a faulty ABS pump; check your VIN with a dealer before buying parts.
- Common failure symptoms include ABS/Traction lights, a pump motor that won't shut off, and OBD code C2200.
- The part is an assembly including the electronic module and the hydraulic unit (HCU), and replacement requires a special ABS brake bleeding procedure.
Symptoms of a Failing ABS Module
A problem with the ABS module in a 2017-2024 Ram 2500 or Ram 3500 will almost always make itself known with dashboard warnings. Because the module controls multiple safety systems, you will likely see several lights at once.
- ABS and Traction Control Lights: The most common symptom is the illumination of the "ABS" and "Traction Control Off" warning lights on your instrument cluster.
- "Service Electronic Braking System" Message: The driver information center will often display a text warning, such as "Service Electronic Braking System" or "Service Antilock Brake System".
- Brakes Locking Up: With the ABS system disabled, the wheels can lock up during hard braking, especially on wet or loose surfaces. This increases stopping distance and causes a loss of steering control.
- Pump Motor Runs Continuously: You may hear a buzzing or humming sound from the driver's side of the engine bay, even with the truck turned off. This is the ABS pump motor running constantly, and it will drain your battery.
- Unresponsive or Spongy Brake Pedal: While less common, a failing module can sometimes affect the feel of the brake pedal, making it feel hard or unresponsive.
Common Diagnostic Trouble Codes (DTCs)
To properly diagnose the issue, you need a scanner capable of reading ABS codes. A basic engine code reader will not work. These codes point directly to a problem with the ABS module assembly:
- C2200 - Anti-Lock Brake Module Internal: This is the most definitive code, indicating an internal electronic failure of the module itself. 🎬 See this step-by-step C2200 internal failure diagnostic and replacement
- C2116 - Pump Motor Supply Low Voltage: This code points to an issue with the electric pump motor attached to the hydraulic unit.
- U0121 - Lost Communication With ABS Module: This means other computers in the truck can no longer talk to the ABS module, often because the module has failed completely.
Important Recall for 2017-2018 Models
Safety Recall C4B / NHTSA 24V-896: 🎬 Watch: How to get your HCU and ABS module repaired for free FCA/Stellantis issued a major safety recall for certain 2017-2018 Ram 2500, Ram 3500, Ram 4500, and Ram 5500 trucks. The issue stems from a faulty Hydraulic Control Unit (HCU), which is the assembly containing the ABS module and pump.

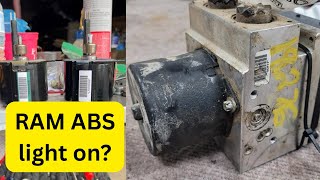

The root cause is swelling brushes inside the ABS pump motor, which can lead to an intermittent or permanent loss of ABS, Electronic Stability Control (ESC), and traction control. This can increase the risk of a crash without warning. The remedy is a complete replacement of the HCU/ABS module assembly, performed by a dealer free of charge. Before purchasing a part, check with a Ram dealer or on the NHTSA website to see if your vehicle is affected and if the recall work has been completed.
Programming: The Most Critical Step for Replacement
A replacement ABS module—whether it is new, used, or remanufactured—is NOT plug-and-play. It must be electronically configured to your truck's specific Vehicle Identification Number (VIN) and options. This process is often called "ABS Initialization" or "VIN Programming."
If you install a module without programming it, the ABS and traction control lights will remain on, and the system will not function. You will likely get a "VIN Mismatch" fault code. You have three primary options for programming:
- Ram Dealership: A dealer can perform the programming using their proprietary wiTECH software. This is the most straightforward but also the most expensive option.
- Independent Shop: Many independent repair shops have professional-grade scan tools that are capable of performing the ABS initialization procedure on Ram trucks.
- DIY with AlfaOBD: For the technically savvy DIYer, the AlfaOBD software provides a cost-effective solution. Using the software on a Windows laptop or Android device, combined with a compatible OBD-II interface (like the OBDLink MX+), you can perform the necessary initialization and calibration procedures yourself. This involves writing your truck's VIN to the new module and performing a system calibration.
Buying a Used Ram 2500/3500 ABS Module
Buying a used ABS module assembly can be a great way to save a significant amount of money, especially compared to a new part from a dealership. However, there are critical factors to consider.
- Programming is Mandatory: Remember that a used module must be reprogrammed to your vehicle. Factor the cost of programming (either by a shop or by purchasing DIY tools like AlfaOBD) into the total price.
- Verify Compatibility: While many modules look identical, there can be internal differences. Match the part number as closely as possible to your original unit. The provided OEM part numbers are a good starting point for your search.
- Physical Inspection: When you receive the part, inspect it carefully. Look for any signs of damage to the housing, and ensure the electrical connector pins are straight and free of corrosion. Avoid parts from vehicles that have been in floods or severe accidents.
- Why Used OEM is a Good Choice: A used original Mopar part is often a better choice than a cheap, new aftermarket unit. The OEM part was designed and tested specifically for your truck's braking system, ensuring proper fit and function once programmed.
Replacement Cost Comparison
The cost to replace the ABS module assembly can vary widely. The programming requirement is a significant factor in the total cost.
| Part Type | Estimated Part Cost | Notes |
|---|---|---|
| New OEM (Dealer) | $800 - $1,200+ | Highest cost, but is a brand new, warrantied part. |
| New OEM (Online) | $400 - $600 | Genuine Mopar parts can often be found cheaper online. |
| Used OEM | $70 - $250 | Excellent value, but programming is essential. Sourced from salvage yards or online marketplaces like eBay. |
| Remanufactured / Repair Service | $450 - $550 | You send your original module to be repaired and sent back. Often fixes common failure points and may not require reprogramming. |
| Shop Labor | $200 - $400 | Labor for replacement and bleeding the brake system typically takes 2-3 hours. Programming may be an additional charge. |
Frequently Asked Questions (FAQ)
Can I drive my truck with a bad ABS module?
Yes, but with significant risks. Your standard hydraulic brakes will still function, but you will not have anti-lock brakes, traction control, or stability control. This makes it much easier to lock up the wheels and lose control in an emergency stop or on slippery roads. It is strongly recommended to get the system repaired as soon as possible.
Do I have to bleed the brakes after replacing the ABS module?
Yes. The ABS module is connected to the hydraulic unit, which has multiple brake lines attached. When you replace the assembly, you open the hydraulic system, introducing air. The brakes must be bled to remove this air. This requires a special "ABS bleed" or "HCU bleed" procedure using a scan tool (like a dealer's tool or AlfaOBD) to cycle the pump and valves inside the new unit to purge all trapped air. A standard manual bleed is not sufficient.
Can I just replace the electronic module instead of the whole pump assembly?
Sometimes, yes. The electronic control module is often attached to the hydraulic pump with a few Torx screws. On some models, it is possible to carefully remove just the electronic portion without disturbing the brake lines, which avoids the need to bleed the brakes. However, you will still need to program the replacement electronic module to your truck's VIN.
Is the ABS module failure on my 2017-2018 truck covered by the recall?
It might be. The recall (NHTSA 24V-896) specifically targets a defect in the HCU/pump assembly on 2017-2018 models. If your truck falls within this range and is exhibiting ABS failure symptoms, the first step should be to contact a Ram dealer with your VIN to check for recall eligibility. The repair should be performed for free if your vehicle is covered.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68143491AA 68143491AB 68334977AG 68347098AA 68347098AB 68347098AC 68364388AC 68453770AC 68453771AB 68455481AC 68477878AF 68504022AB 68530686AB 68530686AC 68544596AC 68195569AA 68306179AB
The assembly includes the electronic control module and the hydraulic control unit (pump). It is located in the engine bay on the driver's side frame rail.
