2010-2014 Nissan Versa ABS Module: Decoding Failures, Fitment, and Programming

Symptoms of a Failing ABS Control Module

A faulty ABS module in a 2010-2014 Nissan Versa will typically make its presence known through several distinct warnings and symptoms. 🎬 Watch: 6 symptoms of a bad ABS module While your primary braking system will still function, the anti-lock safety feature will be disabled.

• ABS Warning Light: The most common and immediate sign is an illuminated ABS warning light on your dashboard. This light indicates the onboard computer has detected a fault within the system.
• Brakes Locking Up: The primary purpose of ABS is to prevent wheel lock-up. If your module has failed, your wheels may lock and skid during hard braking, especially on wet or slippery surfaces. This increases stopping distances and reduces steering control.
• Unresponsive or Hard Brake Pedal: In some cases, a failing module can cause the brake pedal to feel unusually hard to press or become unresponsive, requiring more effort to slow the vehicle.
• Inaccurate Speedometer: The ABS module processes data from the wheel speed sensors, which is also used by the speedometer. A module failure can sometimes lead to an erratic or completely non-functional speedometer.
• Associated Warning Lights: Since the ABS system is linked to other safety features, you may also see the traction control or stability control (VDC) lights illuminate.

Common Diagnostic Trouble Codes (DTCs)

To properly diagnose the issue, a scan tool capable of reading ABS codes is necessary. 🎬 See how to diagnose Nissan ABS warning lights Common codes pointing to a module or related component failure include:

• C1110 / C0121: These codes often point to an internal failure or performance issue within the ABS control module itself.
• U1000 / U0121: U-series codes indicate a communication problem. This means the ABS module is not communicating correctly with the vehicle's other computers, which can be a sign of module failure.
• C0110: This code points to a failure in the ABS pump motor circuit, which is part of the integrated module assembly.
• C111F: This code relates to the G-Sensor, which is part of the ABS system. A Nissan Technical Service Bulletin (TSB), NTB23-038, specifically addresses this code.

Known Issues, Recalls, and Technical Service Bulletins (TSBs)

While no specific recalls were found for the ABS module on the 2010-2014 Versa, Nissan has issued recalls for other models due to ABS pump leaks causing a fire risk. It's important to be aware of any TSBs that may apply.

• TSB NTB10-145B: This bulletin provides diagnostic information for ABS/VDC CAN communication issues, particularly when a U1000 code is present. It advises technicians not to replace the ABS control unit without proper DTC diagnosis.
• TSB NTB23-038: Addresses the C111F (G-Sensor) code and provides diagnostic steps.

Confirming Compatibility: A Critical Step

The fitment for this ABS module is extremely specific and is a common point of error for buyers. The initial information provided highlights these complexities. Use the OEM part number from your original unit to find a match.

• 47660-ZN93A / 47660-ZN93B: These part numbers generally fit 2010-2012 Nissan Versa models, particularly the 1.8L SL trim. The initial buyer warning states this is for models with an automatic transmission and WITHOUT Vehicle Dynamic Control (VDC). For 2012, this may only apply to hatchback models with a conventional automatic, not the CVT.
• 47660-9KF3A: This part number is listed for 2013-2015 Nissan Versa models with the 1.6L engine. The initial buyer warning specifies that a similar module fits 2014 Versa Sedan models with a 1.6L engine and a CVT automatic transmission, and will not fit hatchback models.

Buying a Used ABS Control Module

Purchasing a used OEM ABS module is a cost-effective solution, but requires careful attention to detail.

• Verify the Part Number: This is the most important step. Ensure the part number on the used module exactly matches your original.
• Inspect for Damage: Check the electrical connector for any bent or corroded pins. Inspect the housing for cracks or signs of fluid leaks. Avoid any units that appear to have been damaged in a collision.
• Source from a Reputable Seller: Buy from a seller who offers a warranty and has a clear return policy. This provides protection in case the part is incorrect or non-functional.
• Why Used OEM?: For a complex electronic and hydraulic part like an ABS module, a used OEM unit is often more reliable than a new, cheap aftermarket alternative. The OEM part was designed and tested specifically for your vehicle's systems. A remanufactured unit from a reputable source is also a good option.

Installation and Programming Requirements

Failure to program the module will result in the ABS system not functioning and the warning lights remaining on. The module's software is tied to the vehicle's specific options and Vehicle Identification Number (VIN).

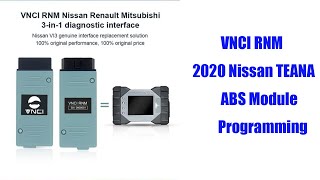

• Who can program it? A Nissan dealership or a well-equipped independent mechanic with a professional-grade scan tool (like an Autel Maxicheck Pro or similar) can perform the 🎬 Watch: How to program a replacement ABS module necessary initialization and calibration procedures. Many independent shops are experienced in programming used modules.
• Is there an anti-theft link? While not directly tied to the engine immobilizer, the VIN-specific programming is a critical security and safety measure.
• Brake Bleeding: After installation, the brake system must be bled. A special procedure using a scan tool is required to cycle the ABS pump and solenoids to remove all air from the new module. A standard brake bleed will not be sufficient.

An alternative to replacing and programming is to have your original module repaired. Companies that offer this service can often fix internal electronic faults. Since the repaired module is original to your car, it typically does not require reprogramming, making it a plug-and-play solution after reinstallation.

Estimated Repair Costs

The cost to fix a faulty ABS module can vary significantly based on the path you choose. Labor for replacement typically takes 1.5-2.5 hours.
