2004-2012 Nissan Titan ABS Module: VDC, 4WD, and Programming Explained

Symptoms of a Failing ABS Control Module

When the ABS module begins to fail, your truck will give several clear warning signs. The most obvious is the illumination of one or more warning lights on your dashboard. Before assuming the module is bad, it's crucial to first inspect the wheel speed sensors and their wiring, as damage to these components can cause identical symptoms.

• ABS Warning Light: This is the most common symptom. A solid ABS light indicates the system has detected a fault and has been disabled.
• VDC or SLIP Light: Because the ABS module controls the Vehicle Dynamic Control system, you will often see the 'VDC Off' or 'SLIP' light appear alongside the ABS light on equipped models.
🎬 Watch: How to diagnose SLIP, VDC, and ABS lights
• Brake Warning Light: In some cases, the main red brake warning light may also illuminate, which could indicate a more serious issue, a problem with brake fluid pressure, or simply low brake fluid.
• 4x4 System Disabled: On 4WD Titans, the four-wheel-drive system relies on data from the wheel speed sensors. A fault in the ABS system will often disable the 4x4 system as a safety precaution, and you may see the 4WD indicator light flashing.
• Wheels Locking Up: With the ABS system disabled, your wheels can lock up during hard braking, increasing the risk of a skid. This is most noticeable on wet or gravel roads.
• ABS Pump Constantly Running: You might hear a buzzing or humming noise from the engine bay, which could be the ABS pump running continuously even with the truck off. This is often caused by a failed relay inside the control module and can drain the battery.

Common Diagnostic Trouble Codes (DTCs)

A professional-grade scan tool that can read ABS codes is necessary for proper diagnosis. Common codes associated with ABS module and system failure include:

• C1103, C1104, C1105, C1106, C1107, C1108: These codes point to issues with the wheel speed sensors (e.g., open circuit), which should be checked before condemning the module.
• C1111: This code specifically points to a fault with the ABS pump motor or its circuit, often indicating a failure within the ABS module assembly itself.
🎬 See how to diagnose and fix ABS pump motor faults

Buying a Used ABS Control Module

Purchasing a used OEM ABS module can be a cost-effective solution, but careful verification is essential to avoid compatibility issues. The fitment for 2004-2012 Titans is notoriously complex.

How to Verify Compatibility

1. Match the Part Number: The most reliable method is to match the part number from your original module to the replacement unit. The part number is typically found on a sticker on the electronic module or the pump body.
2. Check Vehicle Options: Be prepared to know if your Titan is 2WD or 4WD, if it has Vehicle Dynamic Control (VDC), and if it has any special packages like PRO-4X or a tow package. These options determine which ABS module is correct. For example, some modules are for 4WD models without VDC, while others are for 2WD models without VDC and without a heavy-duty suspension.
3. Physical Inspection: When you receive the used part, inspect the electrical connector for any corrosion or bent pins. Check the housing for cracks or signs of heat damage. Ensure the brake line ports on the hydraulic unit (if you are replacing the whole assembly) are clean and not stripped.

Programming and Installation

A common question is whether a replacement ABS module needs to be programmed. For the 2004-2012 Nissan Titan, the answer is generally no. Most sources indicate that these modules are plug-and-play, meaning they do not require special programming to the vehicle's VIN. After installation, you will need to use a capable OBD-II scanner to clear any stored fault codes from the ABS system. The ABS and SLIP lights should then turn off after driving a short distance.

Who Can Install It?

• DIY: For a skilled DIY mechanic, replacing the module (or the full assembly) is feasible. If replacing the full pump assembly, you must be comfortable with bleeding the brake system, which is a critical safety step.
• Independent Repair Shop: Any competent independent shop can perform this replacement. They will also have the necessary scan tool to clear the codes afterward.
• Nissan Dealership: A dealership can also perform the repair, though it will likely be the most expensive option.

Known Issues, Recalls, and TSBs

As of early 2026, there are no specific NHTSA safety recalls for the ABS control module itself on the 2004-2012 Nissan Titan. However, there are related issues and service bulletins to be aware of.

• Wheel Speed Sensor Wiring: A very common point of failure is the wiring harness for the wheel speed sensors. The wires can become damaged, corroded, or melted by aftermarket exhaust components, mimicking the symptoms of a failed ABS module. Always inspect the wiring harness leading to each wheel before replacing the module.

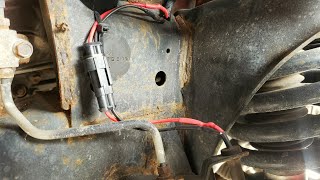

🎬 Watch: How to fix a broken ABS sensor connector
• IPDM Relay Recall: A recall was issued for some 2004-2006 Titans for a relay within the Intelligent Power Distribution Module (IPDM) that could cause the engine to stall. While not directly the ABS module, it highlights potential electrical issues in this vehicle generation.
• TSB NTB10-145B: This Technical Service Bulletin provides information for diagnosing ABS/VDC CAN communication issues, which can be relevant when troubleshooting a non-responsive module.

Cost Comparison

Prices for an ABS control module can vary significantly based on the source and whether you are buying just the module or the complete pump assembly.
